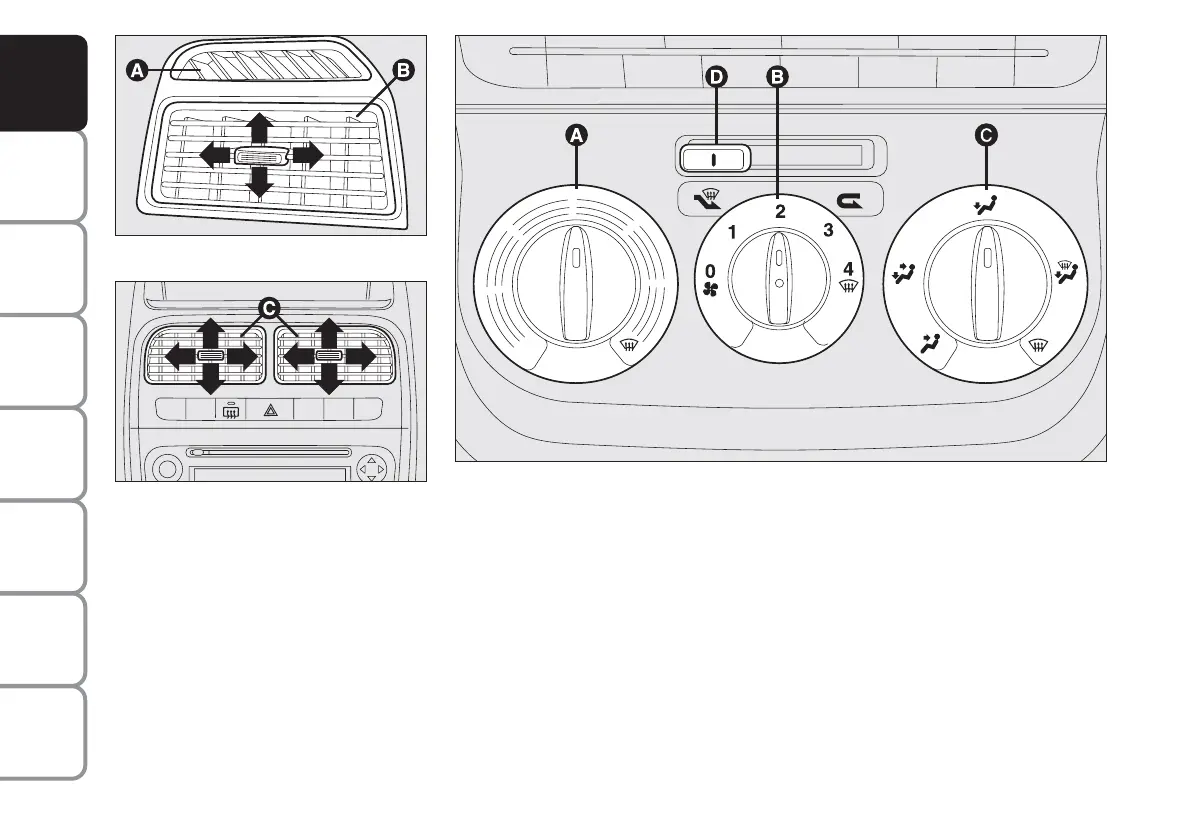

CONTROLS fig. 39
Air temperature knob A
(mixing hot and cold air)
Red section = hot air
Blue section = cold air
Fan on/off and speed adjustment
knob B
p 0 = fan off
1-2-3 = ventilation speed
4
-
= maximum fan speed
fig. 39
F0R0034m
fig. 37
F0R0032m
fig. 38
F0R0033m
ADJUSTABLE SIDE AND
CENTRAL VENTS fig. 37-38
A Fixed vent for side windows.
B Adjustable side vents.
C Adjustable central vents.
Vents A are fixed.
To use vents B and C, operate the rele-
vant device to turn them as required.
