ENGINE OIL fig. 7-8-9-10-11-12
Checking engine oil
Check the oil level a few minutes (about
5) after the engine has stopped, with the
car parked on level ground.
Remove the dipstick A and clean it, put
it back in completely, remove it and check
that the level is within the MIN and MAX
marks on the dipstick. The interval be-
tween the MIN and MAX marks corre-
sponds to about one litre of oil.

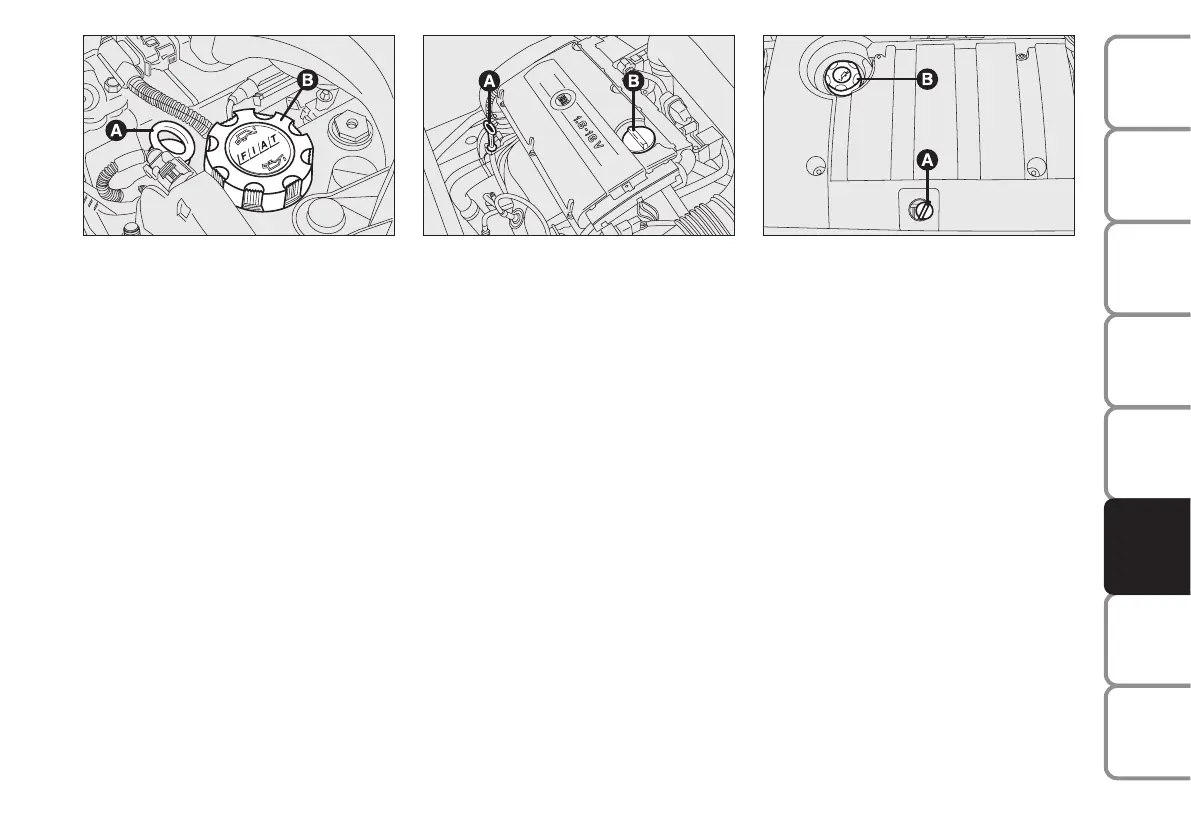

fig. 7 - 1.416V version
F0C0103m
Topping up engine oil
If the oil level is near or even below the
MIN mark, add oil through the filler neck
B, until reaching the MAX mark.
Oil level shall never exceed the MAX
mark.
IMPORTANT If a routine check reveals
that the oil level is above the MAX mark,
contact Fiat Dealership to have the cor-
rect level restored.
IMPORTANT After adding or changing
the oil, let the engine turn over for a few
seconds and wait a few minutes after turn-
ing it off before you check the level.
fig. 8 - 1.816V version
F0C0519m
fig. 9 - 1.9 Multijet 8V version
F0C0122m
