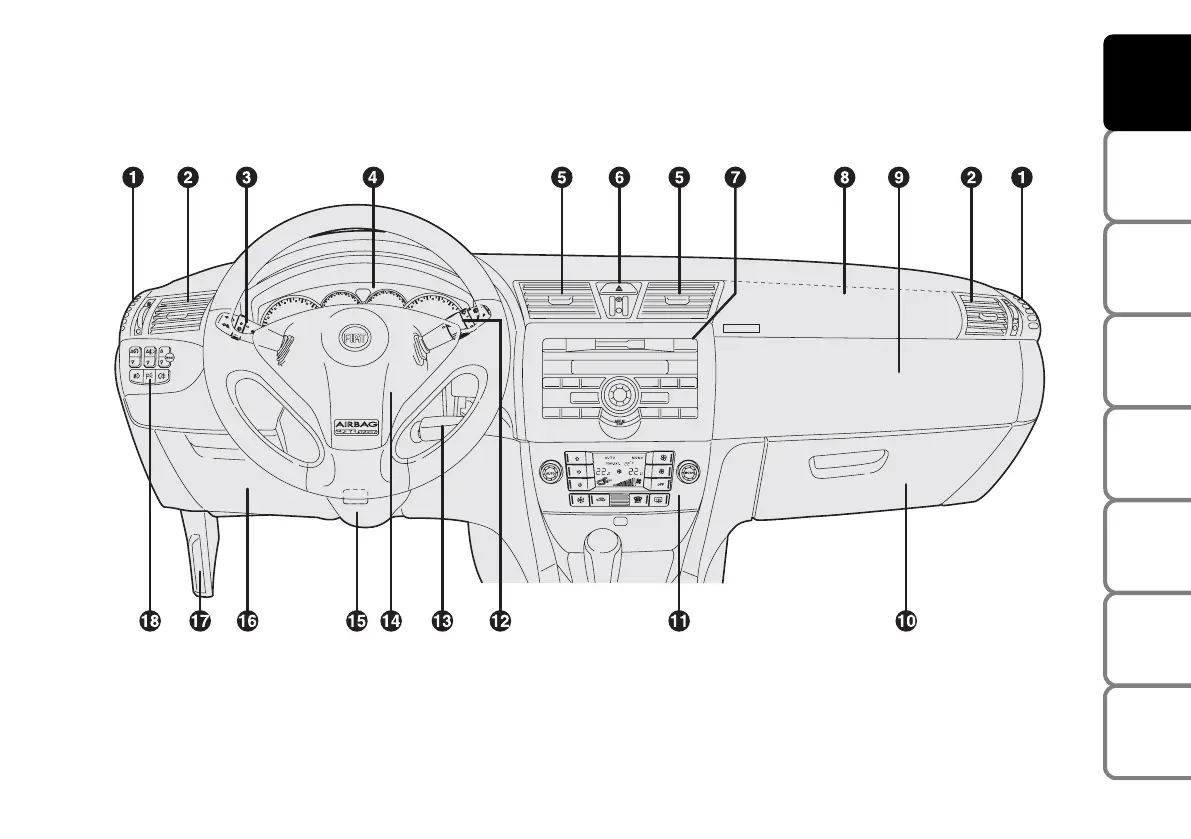

DASHBOARD
The presence and the position of the instruments and warning lights may vary according to the versions.
1. Side window air vent - 2. Adjustable and swivel air vent - 3. External light stalk - 4. Instrument panel - 5. Adjustable and swivel
air vent - 6. Hazard light switch - 7. Sound system controls - 8. Front passenger air bag - 9. Upper glovebox - 10. Lower glovebox
- 11. Controls for heating, ventilation and climate control - 12. Windscreen/rear window wiper/trip computer stalk - 13. Ignition
key and ignition switch - 14. Driver air bag - 15. Steering wheel locking/release stalk - 16. Control unit access door - 17. Bonnet
opening lever - 18. Set of switches for lights and menu opening/setting.
5
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0C0155m
fig. 1
