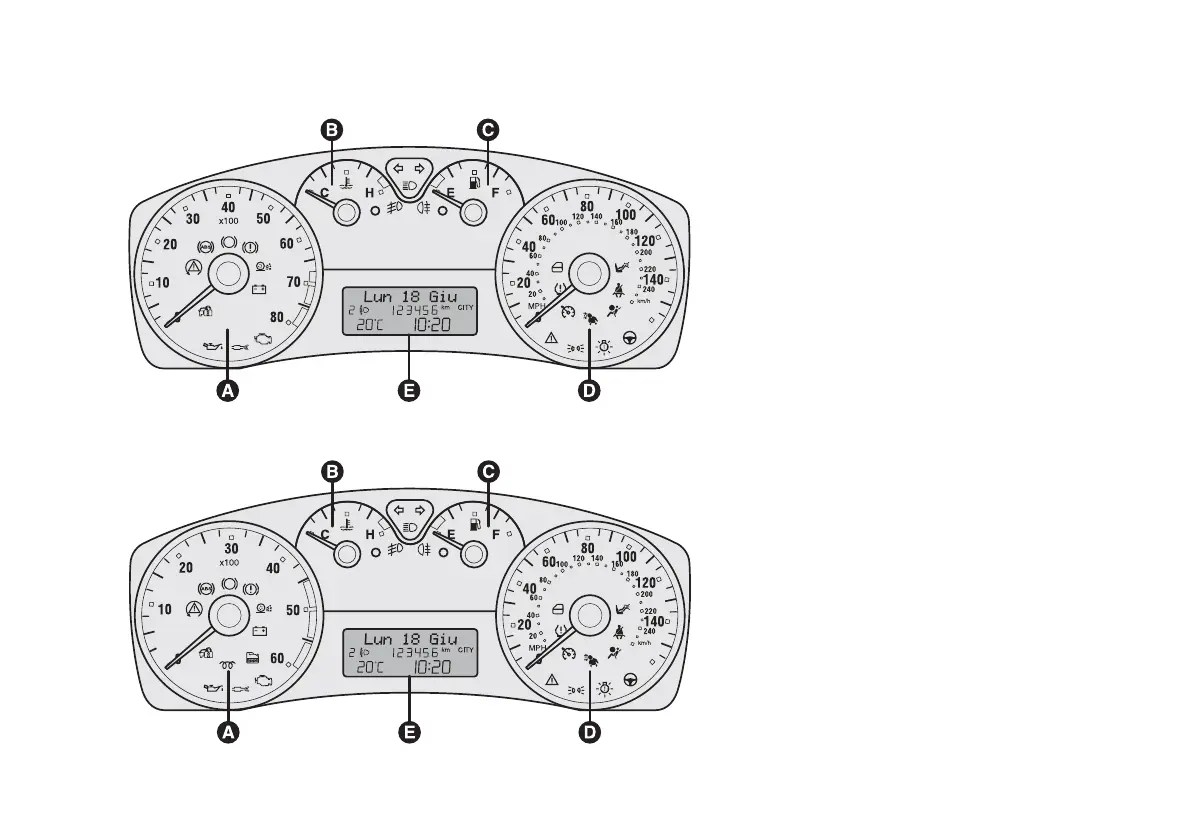

INSTRUMENT PANEL
(right-hand drive versions)
1.416V - 1.616V - 1.816V versions
A Rev. counter
B Fuel level gauge with reserve
warning light
C Engine coolant temperature gauge and
excessive temperature warning light
D Speedometer (speed indicator)
E Multifunction display.
For markets where provided, the speedome-
ter (speed indicator) can have the gradu-
ated scale in km/h instead of MPH.
1.9 Multijet versions
A Rev. counter
B Fuel level gauge with reserve warning
light
C Engine coolant temperature gauge and
excessive temperature warning light
D Speedometer (speed indicator)
E Multifunction display.
For markets where provided, the speedome-
ter (speed indicator) can have the gradu-
ated scale in km/h instead of MPH.
F0C0524m
F0C0525m
