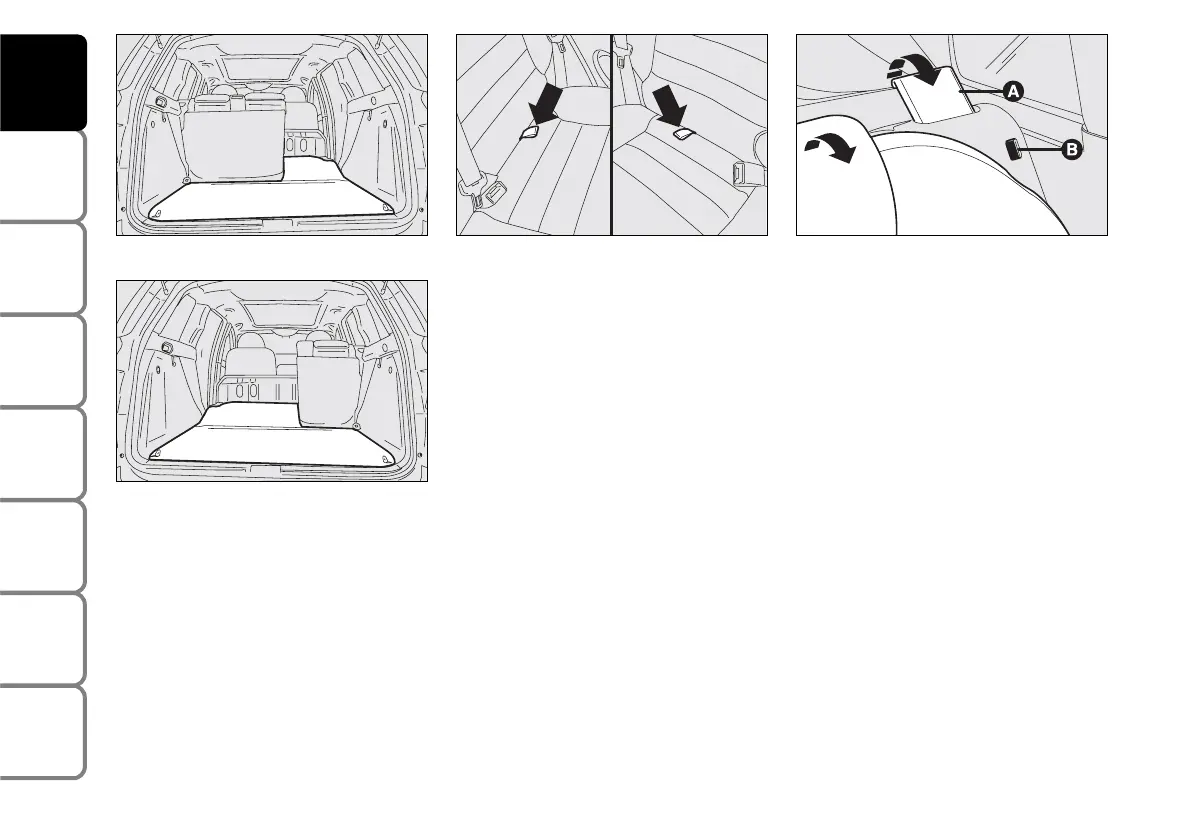

Partial extension
(1/3 or 2/3) fig. 94-95
The boot extension to the right makes it
possible to carry two passengers on the
rear seat left-hand side.
The boot extension to the left makes it
possible to carry one passenger on the
rear seat right-hand side.
Versions with fixed rear seat
Proceed as follows:
❒
lower completely the rear seat head re-
straints;
❒
move the seat belt sideways and check
that the belt is not twisted;
❒
pull the handle in the middle of the
cushion fig. 96, and tilt the required
cushion;
❒
lift seat back retaining lever A-fig. 97
and tilt the seat back forward. Lever lift-
ing is shown by a “red band” B.
fig. 94
F0C0356m
fig. 95
F0C0357m
fig. 96
F0C0371m
fig. 97
F0C0378m
