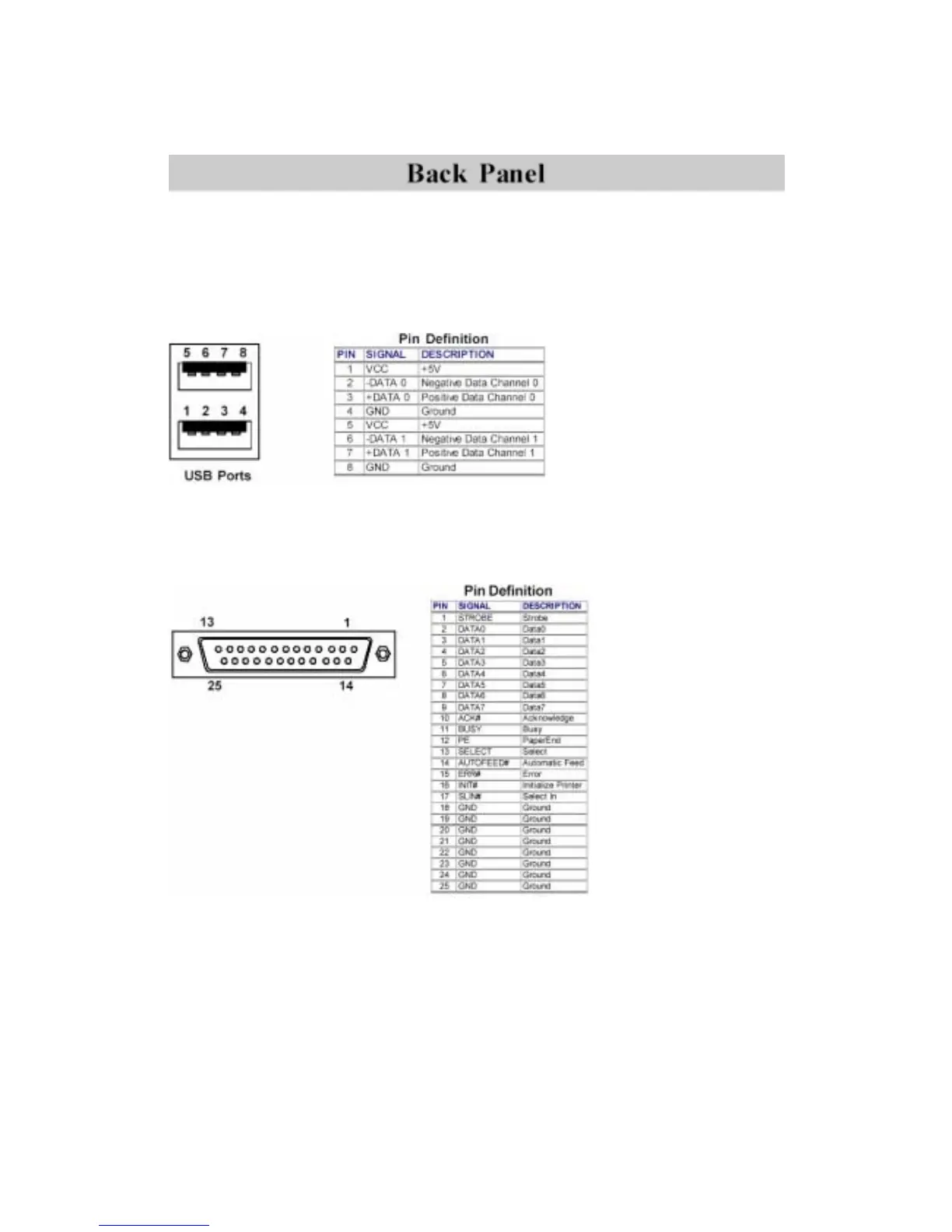

USB Port Connectors
The FIC P4MA PRO 533 mainboard provides 2 USB 2.0 ports (plus 2 pinheaders
for up to 4 additional USB 2.0 connections; see 2-17). USB-compatible
devices can be plugged directly into these ports.
Parallel Port Connector: LPT1
The mainboard provides a 25-pin female connector for LPT (parallel port). A
parallel port is a standard printer port that supports Enhanced Parallel Port
(EPP) and Extended Capabilities Parallel Port (ECP) modes.
2-9
