Page of 8
ASSEMBLY INSTRUCTIONS

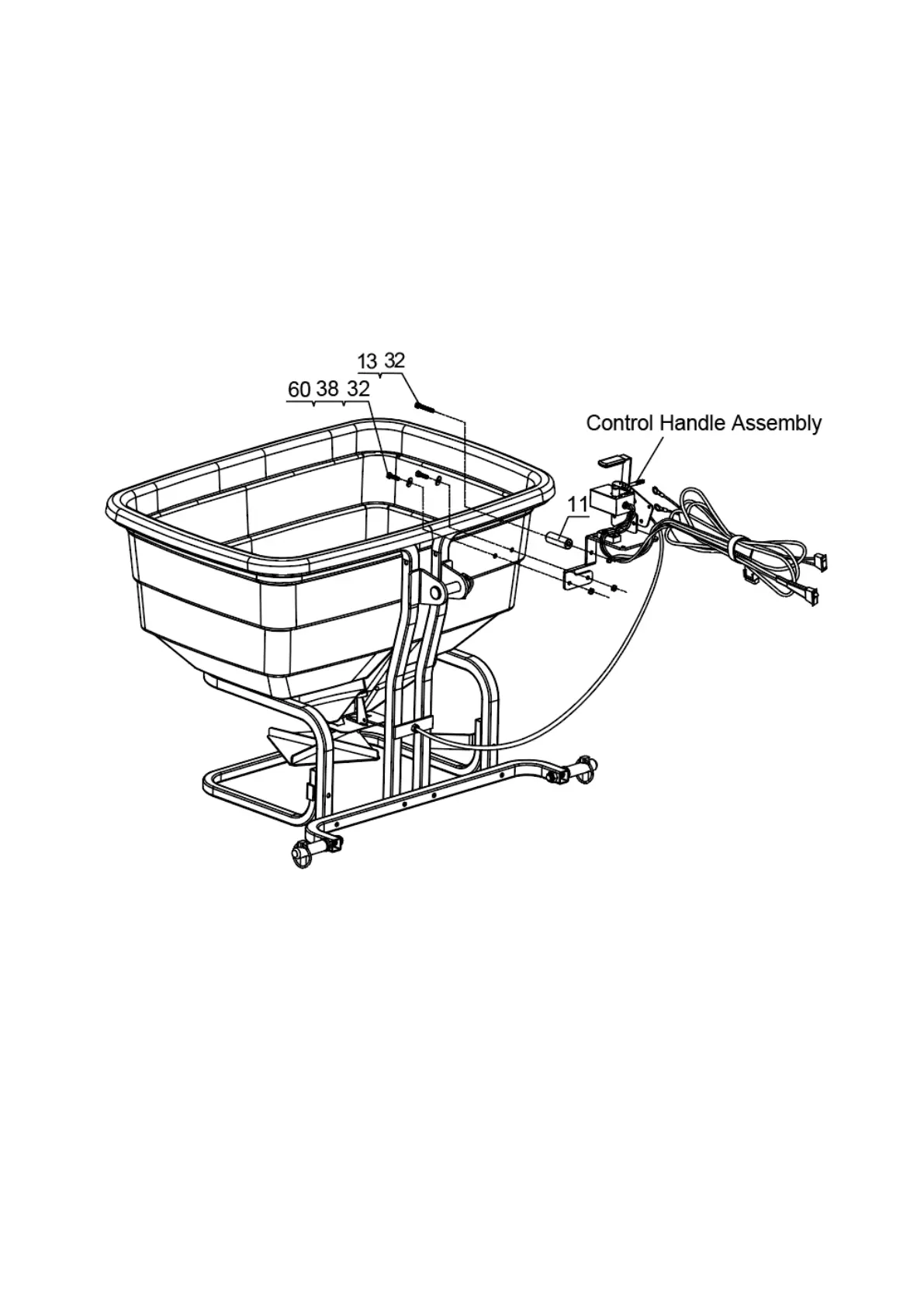

Thread #13 stainless steel hex bolt M6x60 through hopper, then through #11
intermediate spacer B, and control handle assembly, and finally preassemble with #32
stainless steel hex lock nut M6. Insert the #38 stainless steel hex bolt M6x16 through
the #60 stainless steel large washer, then through the hopper, and the control handle
assembly, and finally pre-tighten the #32 stainless steel hex lock nut M6, adjust the
position and then tighten the nuts.
