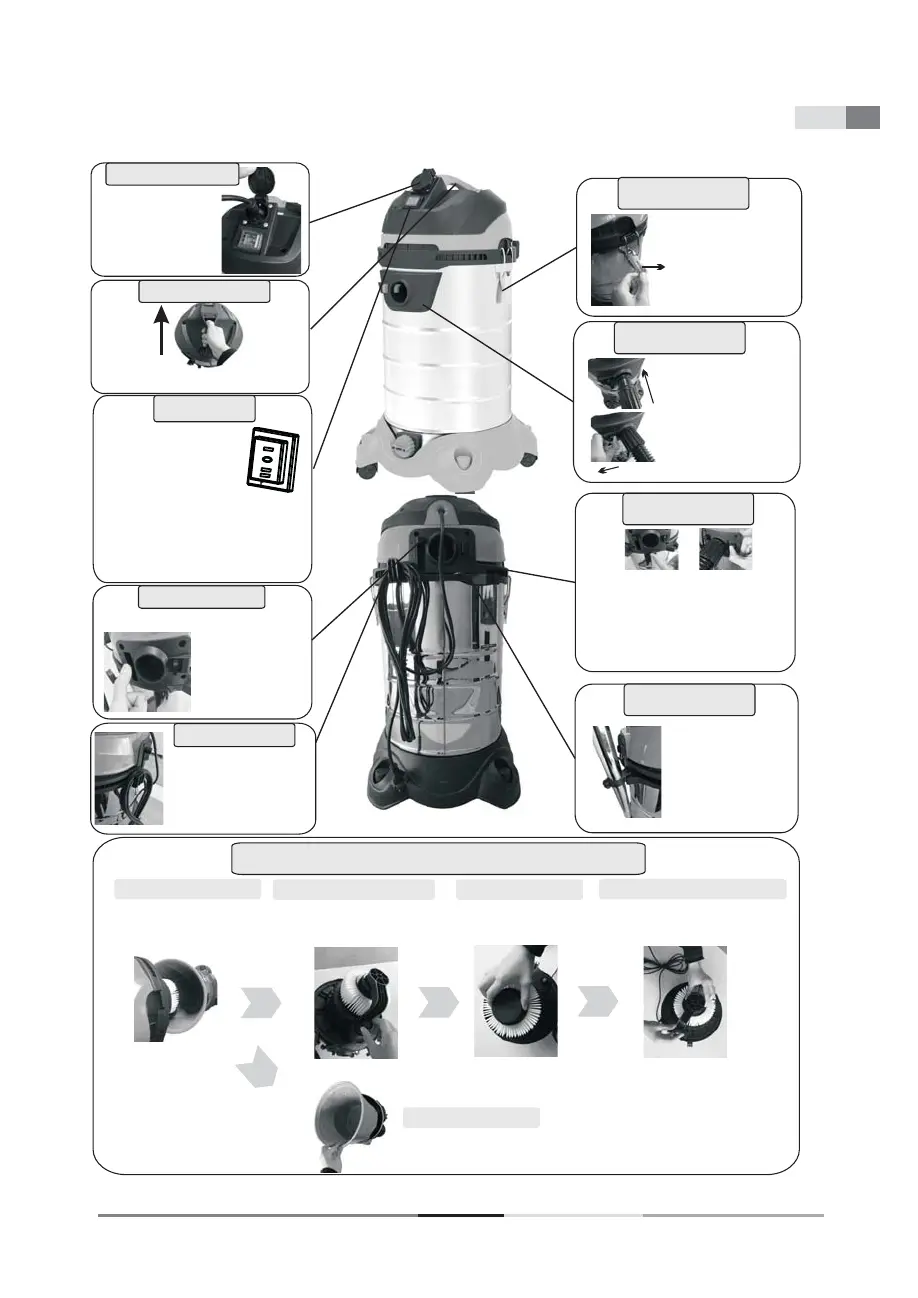

Diagram of the machine's disassembly and assembly
The description and introduction of vacuum cleaner
Hanging wire function
You can hang the
wire
here for storage.
Tube assembly storage
function
Put the tube assembly
here for storage to
save space.
Usage of the switch
Take away the machine head
Pull out the clips to take away
the machine head
The connection method
for blowing function
Usage of the clips
The connection method
for hose
Dust shaking function
Turn off the power,
press the dust shaking
button to the bottom,
then release it quickly,
the button will back to
it's original position,
operate it repeatedly
to shaking dust.
Move the locker to left
side, and insert the hose
connector into the
suction mouth, then
release the locker to
make it tightly locked.
Conversely, to separate it.
Move the locker to right side,insert
the hose connector into theblowing
mouth, then release thelocker to
make it tightly locked.Move the
blowingcontrol bar in leftside for
blowing function on and inright side
for blowing function off.
Pull out the clips to open,
conversely, to lock it.
Take off the dust shaking board
Twists off the knob anticlockwise,
then take off the dust shaking
board.
Replace the HEPA filter
Twists off the HEPA
clockwise to take it off.
Install the HEPA&Dust shaking board
Twists the HEPA anticlockwise to lock,
then put the dust shaking board,
tighten the knob.
Take off the cloth filter
Usage of the handle
Hold the handle to lift up the
machine, like the picture.
The use of external socket
Open the lid, insert
the plug of the power
converter.
1)I stands for turn-on.The socket is
energized.2)O stands for turn-off.
The socket is not energized.3)II
stands for power-off.The cleaner
begins to work when theouter
faculty is powered on for 3-5
seconds. 8-12 seconds later whenthe
outer faculty is turned off,the
cleaner stops working.
.
WET&DRY VACUUM CLEANER OPERATING INSTRUCTIONS
