Assembly
5.3 INSTALLING THE GRASS CATCHER, ATTACHING THE WHEEL COVER

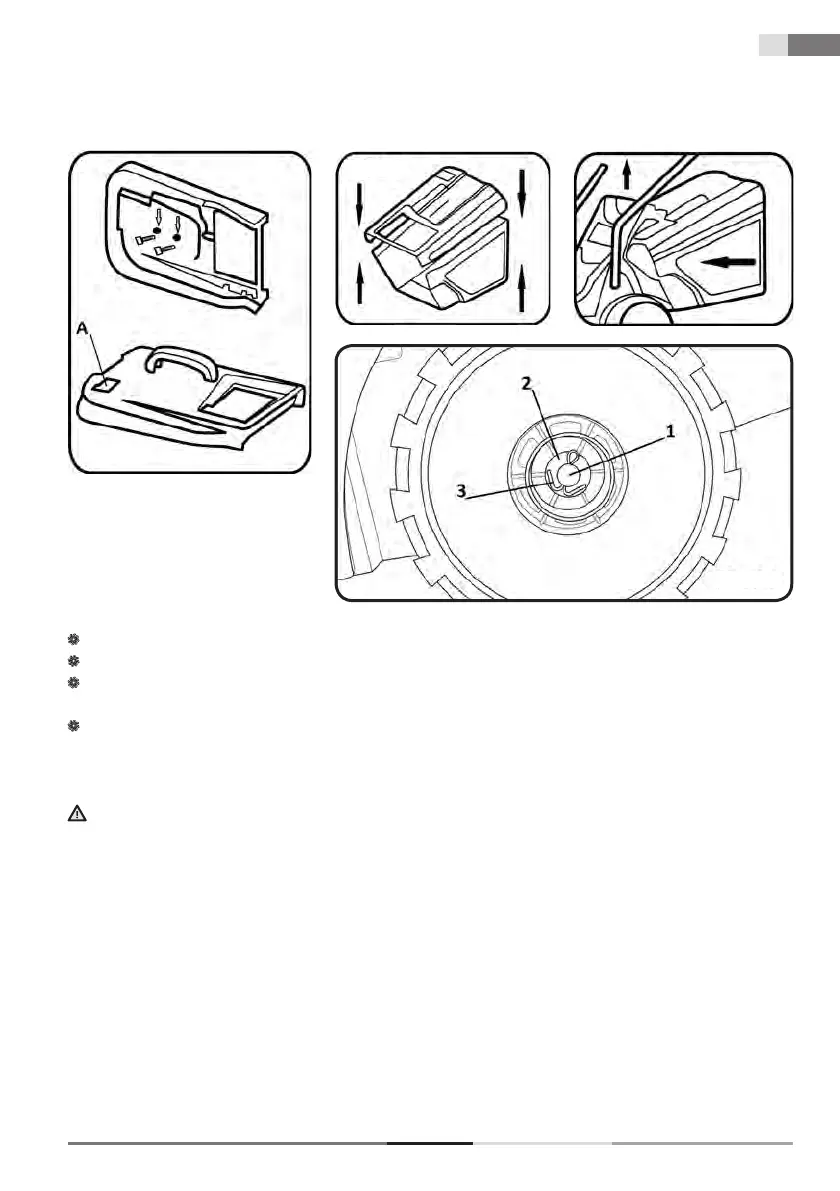

Fig. 4.4
Fig. 4.2
Fig. 4.3
Fig. 4.1
Attach the handle to the top part of the grass catcher using the included screws. Figure 4.1
Connect the top and bottom part of the grass catcher. Figure 4.2
To seat the grass catcher on to the lawnmower, it is first necessary to lift the rear safety grass catcher cover.
Figure 4.3
Put the lawnmower wheel on to the axle. Figure 4.4, point 1. Put on the washer and secure in place using the
cotter pin. Figure 4.4, point 2 and 3.
Finally put on the wheel cover. Repeat this procedure for all 4 wheels.
ATTENTION: The grass catcher is equipped with a full indicator. Figure 4.1, point A. If the flap is lifted, the
grass catcher is not full. Otherwise, it is necessary to tip out the grass catcher.
