Fields Edge M200 - Parts Breakdown

Check for parts online at www.getfieldsedge.com or call 800-345-6007 M-F 8-518
Operator's Manual
String Mower M200
PARTS BREAKDOWN

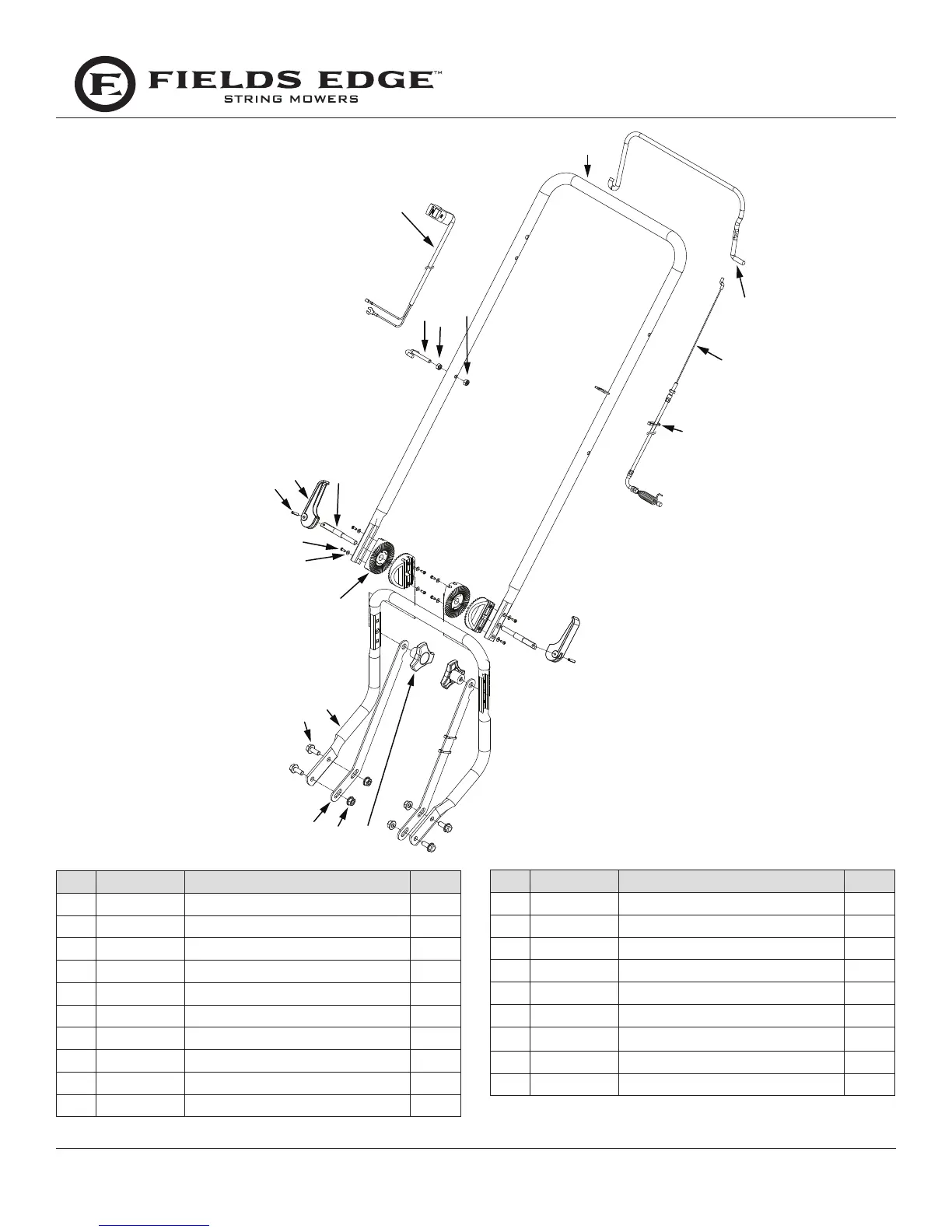

Handlebars
KEY PART # DESCRIPTION QT Y.
1 106 ZIPTIE5.75INCHBLACK 3
2 17257 CLUTCHCABLESTRINGMOWER 1
3 17528 CONTROL LEVER 1
4 17526 UPPERHANDLEBAR 1
5 17471 ON/OFF SWITCH STRING MOWER 1
6 W1265V0913 NUTM6X10NYLOC 1
7 19939 NUTM6X1.0HEX 1
8 19902 ROPEGUIDEM6X1.0OPENEYE 1
9 16311 HANDLEADJUSTBOLTM8 2
10 19972 CAMLEVERBLACK 2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
KEY PART # DESCRIPTION QT Y.
11 19973 RIVET M4 X 20 2
12 16397 SCREW M3 X 10 PHILIPS 8
13 16360 WASHERM3X0.8THICK 8
14 19912 HANDLEPIVOTBLACK 1
15 19941 LOWER HANDLEBAR 4
16 19945 BOLT M8 X 1.25 X 20 HEX 1
17 18893 HANDLEBAR BRACE STRING MOWER 4
18 64132 NUTM8X1.25 2
19 13601 KNOBM8THREESTARBLACK 4
