• During connection of the Valve Actuator Assembly to the terminal strip, the Valve Actuator Assembly
shall remain shunted until all Valve Actuator Assemblies are connected to the appropriate terminals.

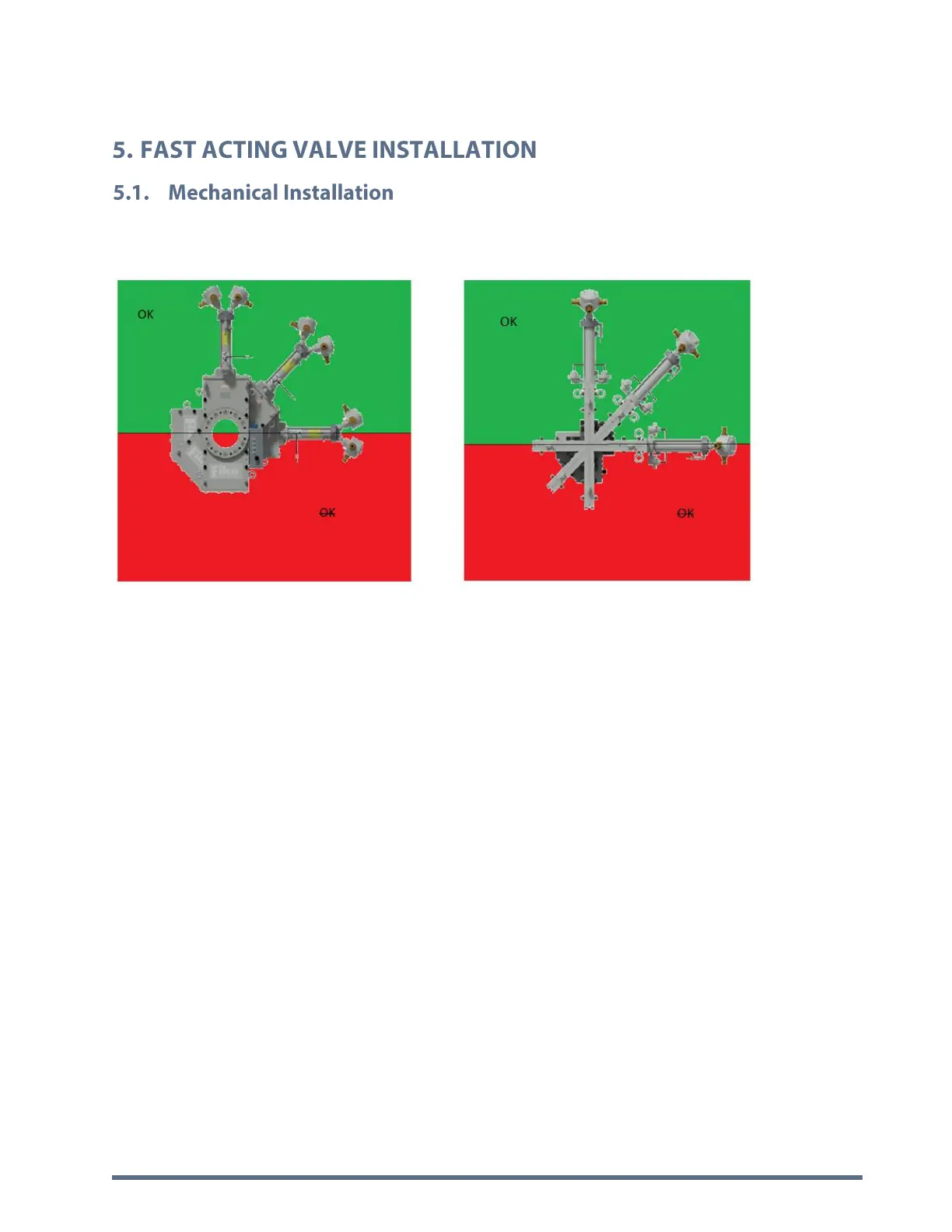

The valve shall be positioned according to figure 6: The valve can be mounted from an upright vertical position to a
horizontal position. It shall not be mounted at an angle below a horizontal position.
Figure 6 - Valve orientation options
