Fig. 1
1. INTRODUCTION
1.1 Technical Data
1.1.1 The turbine digital meter is designed for use with the following low viscosity fluids:
- diesel fuel
- kerosene
1.1.2 Flow Rate: 3-26GPM, flow rates outside of this range may have reduced accuracy.
1.1.3 Operating pressure: 10BAR / 145PSI
1.1.4 Inlet/Outlet: 1”

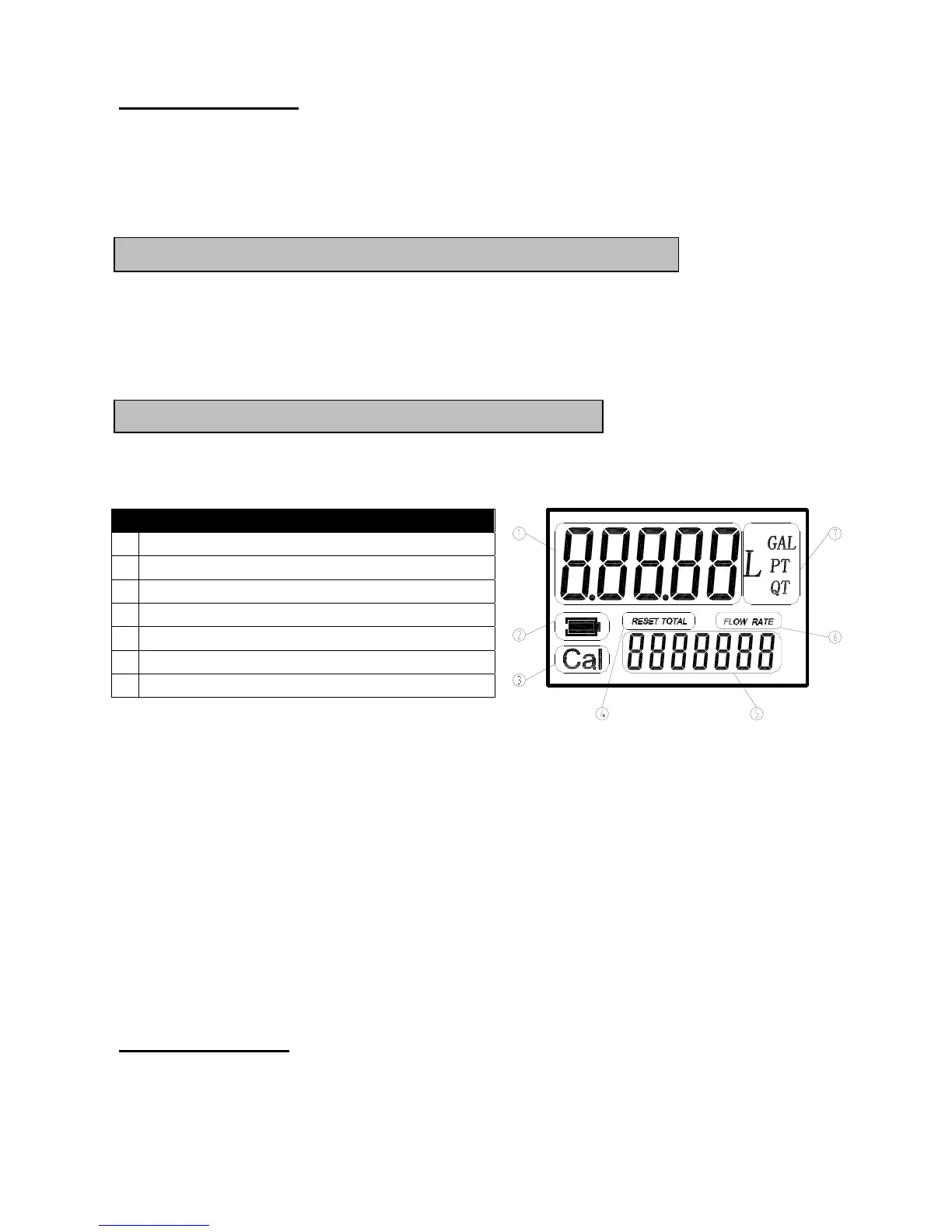

1.2 LCD DISPLAY
The meter display features two numerical registers and several function or status indicators.
# Description
1 Resettable Register (5 digit, from 0.1-99999).
2 Battery condition.
3 “Calibration” mode.
4 Resetting current total to 0.
5 Totalizer Register (total cumulative fluid dispensed).
6 Rate of flow being displayed.
7 Unit of measure (liters, gallons, quarts, pints).
1.3 USER BUTTONS
The face of the turbine digital meter has two buttons (MENU and RESET) which individually perform two main
functions and together, other secondary functions.
The main functions performed are:
For the reset key, resetting the partial Register and reset table total (reset total)
For the menu key, entering instrument calibration mode.
Used together, the two keys permit entering configuration mode.
1.4 BATTERY REPLACEMENT
The battery in your in-line digital meter is not replaceable. To minimize the possibility of fire or explosion, it is a
sealed unit that does not allow for user replacement. Do not attempt to open or replace the battery in your
meter.
2. INSTALLATION
The inlet and outlet for this meter is 1″BSP/NPT. It can be easily connected with the pipe or nozzle.
WARNING! Use of other fluids may be inaccurate and can damage the meter!
IMPORTANT! Not suitable for retail sale of diesel, oil, or kerosene!
