FİMAK
DD.009 / Rev. No 00 SPİRAL MİKSER MAKİNASI
Tarih 10.10.2012 Sayfa 73 / 92

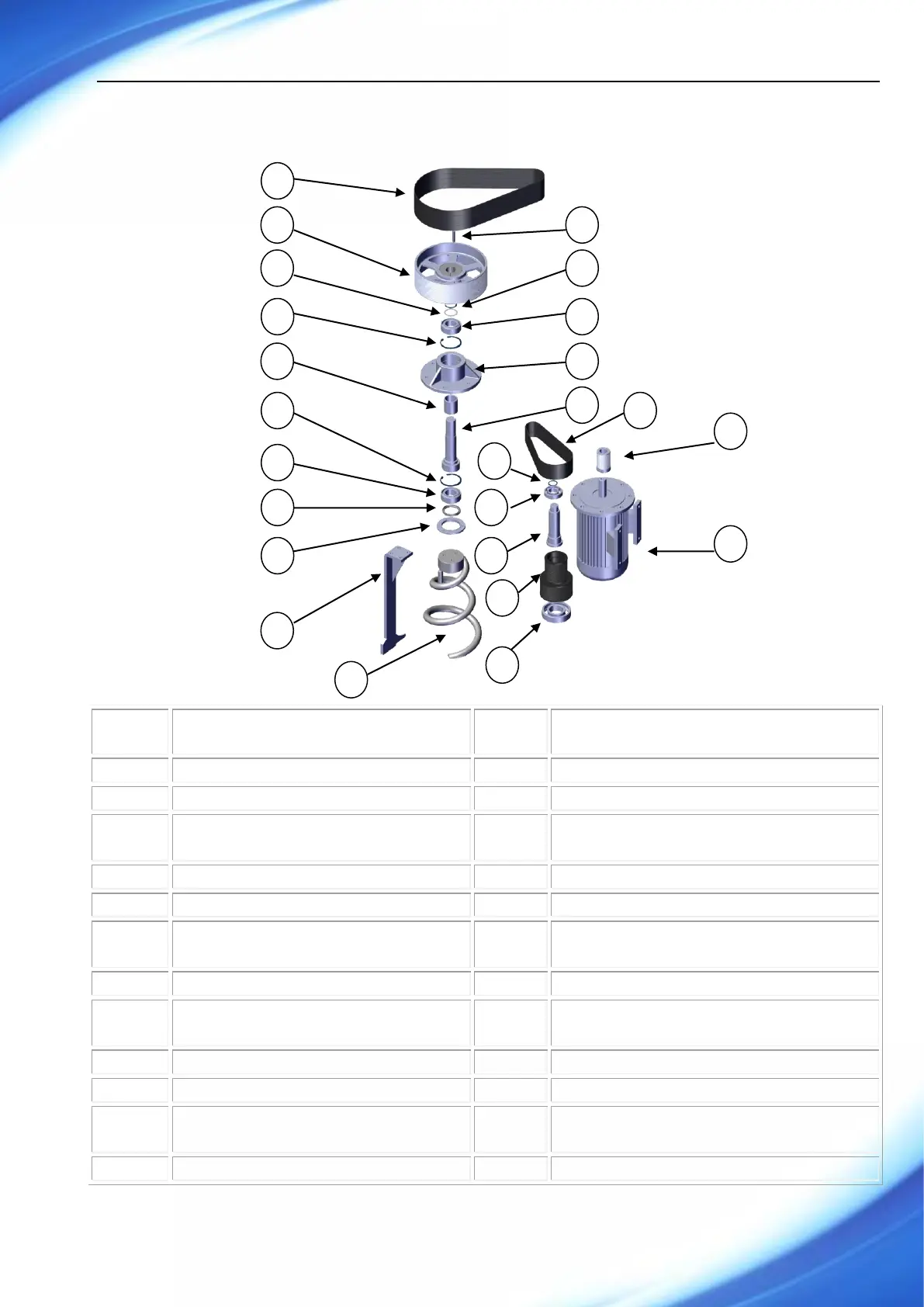

3.1.7 THE MIXING SET COMPONENTS LIST (SPM250)
Pos.
No:
NAME
Pos.
No:
NAME
1
004026 8PK 1740 PolyV Belt
13
005193 Oil Seal 75x100x10
2
021345 Fid of Spiral Shaft
14
021380 Oil Seal Ring
3
003981 PK 395x35 Upper Spiral
Poly V Pulley
15
003116 Blade
4
004975 471 Ø60 Retaining Ring
16
004889 Spiral Hook
5
021495 Pulley Adjustment Lamella
17
004616 Bearing 6315 2RS
6
004584 Bearing 3212 2RS
18
003971 PK 180x26+125x35 İdle Poly
V Pulley
7
004765 472 Ø110 Retaining Ring
19
021476 Shaft
8
021343 Upper Die-Casting Bearing
Housing
20
004614 Bearing 6309 2RS
9
Upper Housing Support Ring
21
004763 471 Ø45 Retaining Ring
10
021394 Shaft of Spiral Hook
22
004014 8PK 1035 Poly V Belt
11
004765 472 Ø110 Retaining Ring
23
003991 PK 75x26 Upper Engine Poly
V Pulley
12
004583 Bearing 3212
24
003636 Engine
1
2
3
4
5
6
7
8
9
10
11
12
13
Lists of Materials
15
23
21
18
16
17
14
22
24
20
19
