FIMAK SPM-40 - Page 74

FİMAK
DD.009 / Rev. No 00 SPİRAL MİKSER MAKİNASI
Tarih 10.10.2012 Sayfa 74 / 92

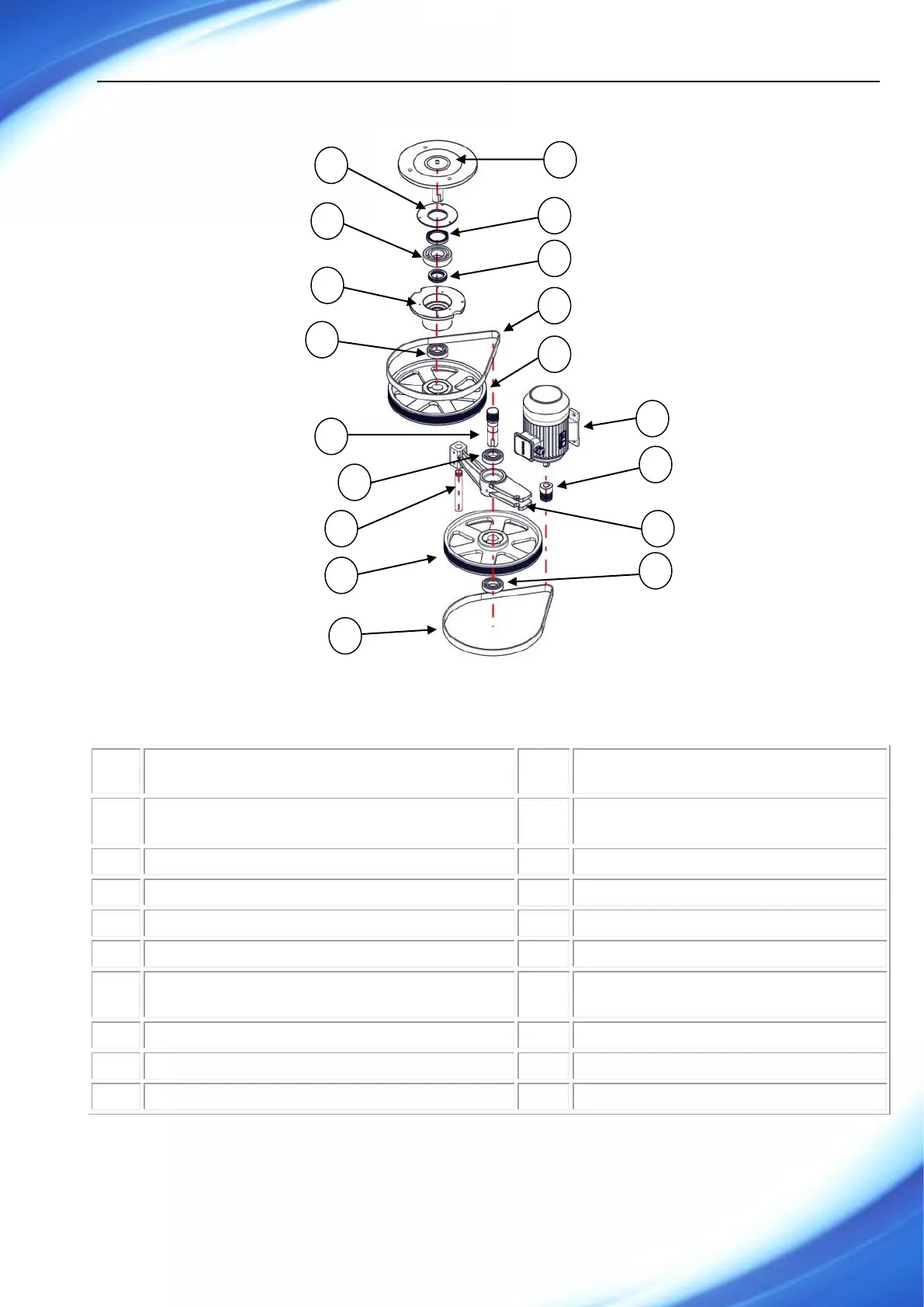

3.1.8 THE BOWL ROTATING SET COMPONENTS LIST (SPM40)
Pos.
No:
NAME
Pos.
No:
NAME
1
021512 Bowl Flange
10
003983 PK 45x9 Poly V Middle
Pulley
2
021375 Oil Seal Ring
11
003622 1,1kW 1000rpm Engine
3
005191 65x80x10 Oil Seal
12
004604 Bearing 6208 2RS
4
004615 Bearing 6310 ZZ
13
003985 PK 46x8 Poly V Pulley
5
004587 Intermediate Bearing 51110
14
021360 Shaft
6
021373 Lower Die-Casting Bearing Housing
15
021619 Lower Tension Die-Casting
Bearing
7
004019 8PK 1335 Poly V Belt
16
003977 PK 375x9 Poly V Pulley
8
004604 Bearing 6208 2RS
17
004604 Bearing 6208 2RS
9
003977 PK 375x9 Poly V Pulley
18
004019 8PK 1335 Poly V Belt
2
3
4
5
6
7
8
9
10
11
12
15
16
17
13
14
18
1
