4.4 REMOVAL OF THE BELTS
1
2
1
2

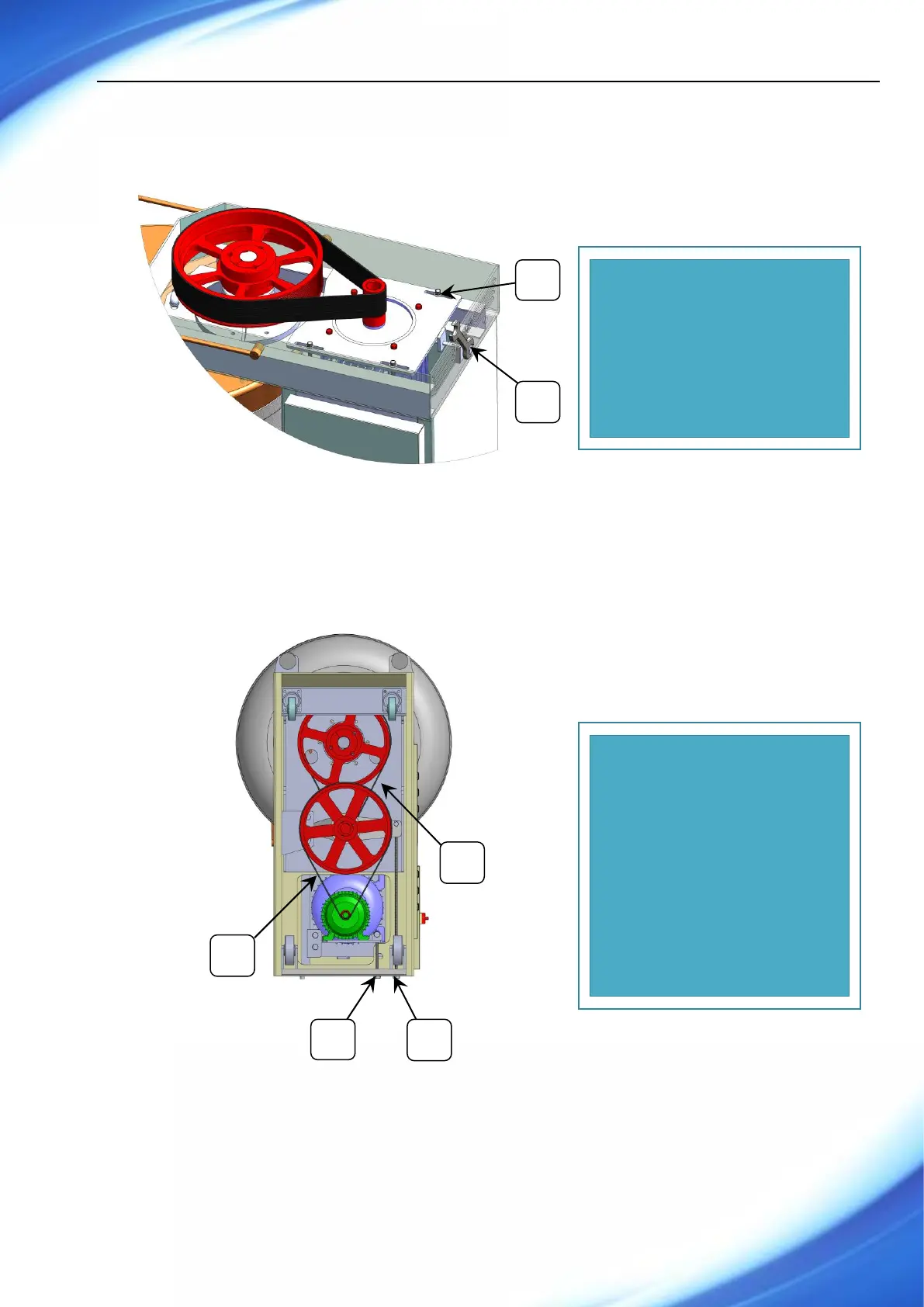

Remove the belts after
removing the screws on
the engine tray (1) and
also tension screw (2) at
the back of the machine.
To remove the belt (A),
loosen the screw on the
engine tray (1) and also
the screw on the tension
bearing housing (2). And
to remove belt (B), loosen
the screw on the engine
tray.
A
B
