FINAL SOUND SOLUTIONS S110 SUBWOOFER MANUAL vs. 1.6 -US- c FSS 2006R 7
Typical room layout

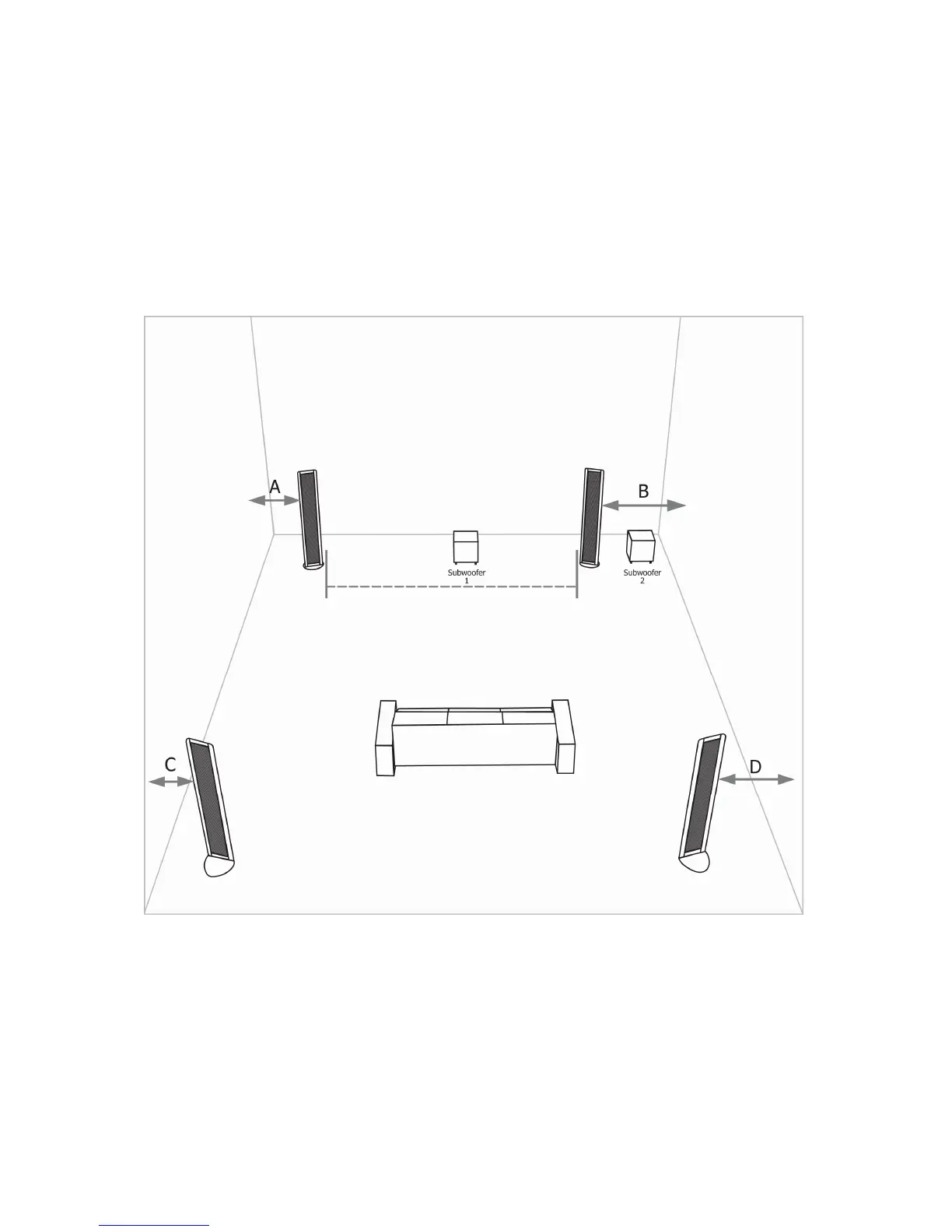

The following figure 0 represents a typical room set up for stereo and/or home theatre. See
the following chapters for a full set up explanation. The figure shows:
• The subwoofer’s preferred positions, depending on the panels you choose.
• The base line between the front loudspeakers.
• The stereo loudspeaker’s position.
• The full home theatre loudspeaker placement.
• A preferred unequal distance between the side walls and the panels (a, b, c and d).
Figure 0
