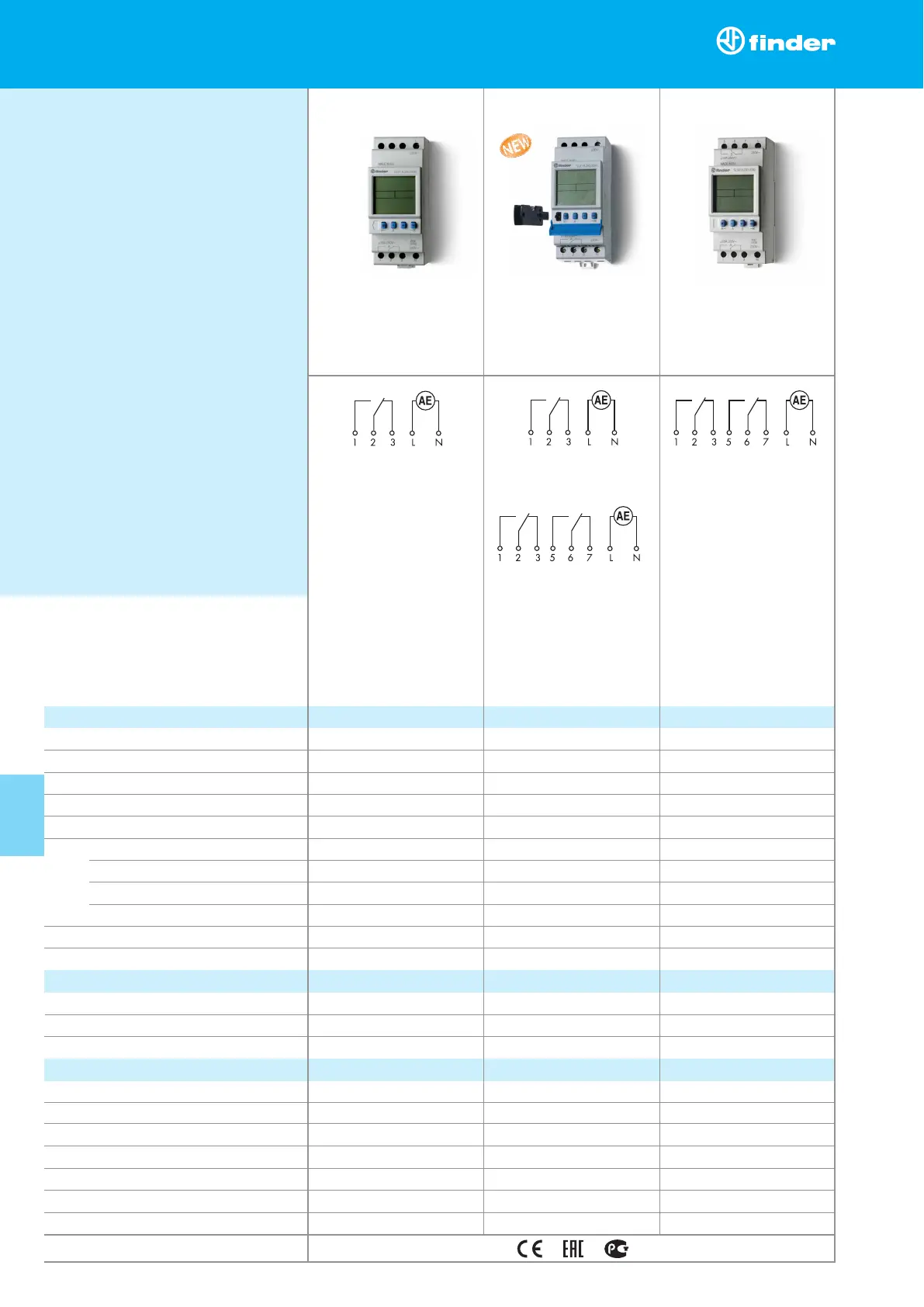

Features
Electronic digital time switches
- weekly time setting
• Type 12.91...0000 “ZENITH”
1 pole 16 A CO (SPDT)
35.8 mm width
• Type 12.91...0090 “ZENITH”
1 pole 16 A CO (SPDT)
35.8 mm width
version for programming via PC by a special
Key Memory (included)
• Type 12.92...0090 “ZENITH”
2 pole 16 A CO (DPDT)
35.8 mm width
version for programming via PC by a special
Key Memory (included)
• Type 12.92 “ZENITH”
2 Pole 16 A CO (DPDT)
35.8 mm width
• Astro program:
calculation of sunrise and sunset times
through date, time and location coordinates
(longitude and latitude)
• Offset function: allows programming of
switching times offset (+ or -) from the
astronomic time
• Minimum time interval setting - 1 minute
• Internal battery for set-up without supply
• Automatic adjustment for daylight saving
• 35 mm rail (EN 60715) mount
1 CO (SPDT) 1 CO (SPDT) / 2 CO (DPDT) 2 CO (DPDT)
16/30 16/30 16/30
250/— 250/— 250/—
4,000 4,000 4,000
750 750 750
2,000 (NO contact) 2,000 (NO contact) 2,000 (NO contact)
420 (NO contact) 420 (NO contact) 420 (NO contact)
1,000 (NO contact) 1,000 (NO contact) 1,000 (NO contact)
2,000 (NO contact) 2,000 (NO contact) 2,000 (NO contact)
1,000 (10/10) 1,000 (10/10) 1,000 (10/10)
AgSnO
2
AgSnO
2
AgSnO
2
230 230 230
2/— 2/— 2/—
(0.85...1.1)U
N
(0.85...1.1)U
N
(0.85...1.1)U
N
50 · 10
3
50 · 10
3
50 · 10
3
weekly weekly weekly
60 60 60
11 1
0.5 0.5 0.5
–30…+55 –30…+55 –30…+55
IP 20 IP 20 IP 20
12.91...0000 12.91...0090/12.92...0090 12.92
Contact specification
Contact configuration
Rated current/Maximum peak current A
Rated voltage/Maximum switching voltage V AC
Rated load AC1 VA
Rated load AC15 (230 V AC) VA
Nominal lamp rating: incandescent (230 V) W
compensated fluorescent (230 V) W
uncompensated fluorescent (230 V) W
halogen (230 V)W
Minimum switching load mW (V/mA)
Standard contact material
Supply specification
Nominal voltage (U
N
) V AC (50/60 Hz)
Rated power AC/DC VA (50 Hz)/W
Operating range AC (50 Hz)
Technical data
Electrical life at rated load in AC1 cycles
Type of time switch
Memory locations for switching times *
Minimum interval setting min
Accuracy s/day
Ambient temperature range °C
Protection category
Approvals (according to type)
• Digital weekly time switch
• 2 CO (DPDT)
• 35 mm rail (EN 60715) mount
• Digital weekly time switch
• 1 CO (SPDT)
• 35 mm rail (EN 60715) mount
• Digital weekly time switch
• Type 12.91: 1 CO (SPDT)
• Type 12.92: 2 CO (DPDT)
• Version for programming via
PC by a special key memory
• 35 mm rail (EN 60715) mount
* Switching times in memory may be used more than once i.e. when selected for different days.
For outline drawing see page 11
I-2014, www.findernet.com
12.91...0090
12.92...0090
12
SERIE S
