finder 12 Series User Manual

5
Example: 12 series digital/analogue time switch, 1 CO 16 A contact, 230 V AC supply
Option
0 = With power back-up
1 = Without power back-up
(type 12.11)
Supply voltage
012 = 12 V AC/DC
024 = 24 V AC/DC
120 = 120 V AC
230 = 230 V AC
Supply version
0 = AC (50/60 Hz)/DC (types 12.21.0.012,
12.21.0.024, 12.22.0.024, 12.71.0.024)
8 = AC (50/60 Hz)
Series
Type
0 = Daily, 35.8 mm wide
1 = Daily, 17.5 mm wide
3 = Daily or Weekly, 72x72 mm
5 = Digital/analogue time switch, 35 mm wide
2 = Weekly, 35.8 mm wide
7 = Weekly, 17.5 mm wide
8 = Astro-switch, 35 mm wide
9 = Weekly “Astro”, 35.8 mm wide
No. of poles
1 = 1 CO (SPDT), 16 A
2 = 2 CO (DPDT), 16 A (type 12.22 and 12.92)
5 1 0 08 0 0

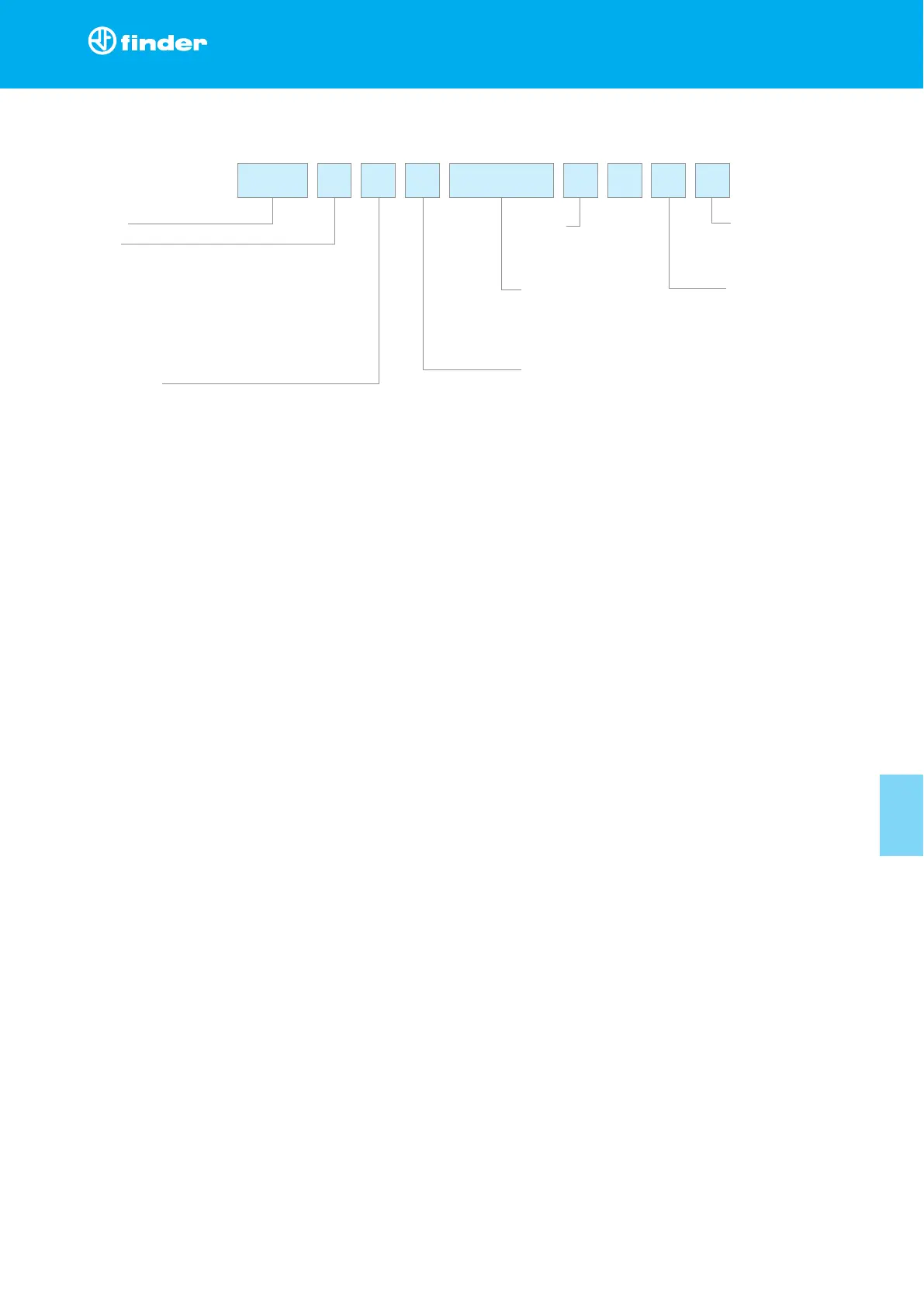

Ordering information
... .
23012
Option
0 = Standard
0 = Daily only for 12.31
7 = Weekly only for 12.31
Special version
0 = Standard
9 = Programming via PC
type 12.91.8.230.0090
type 12.92.8.230.0090
