Finglai KG316T User Manual

www.finglai.com

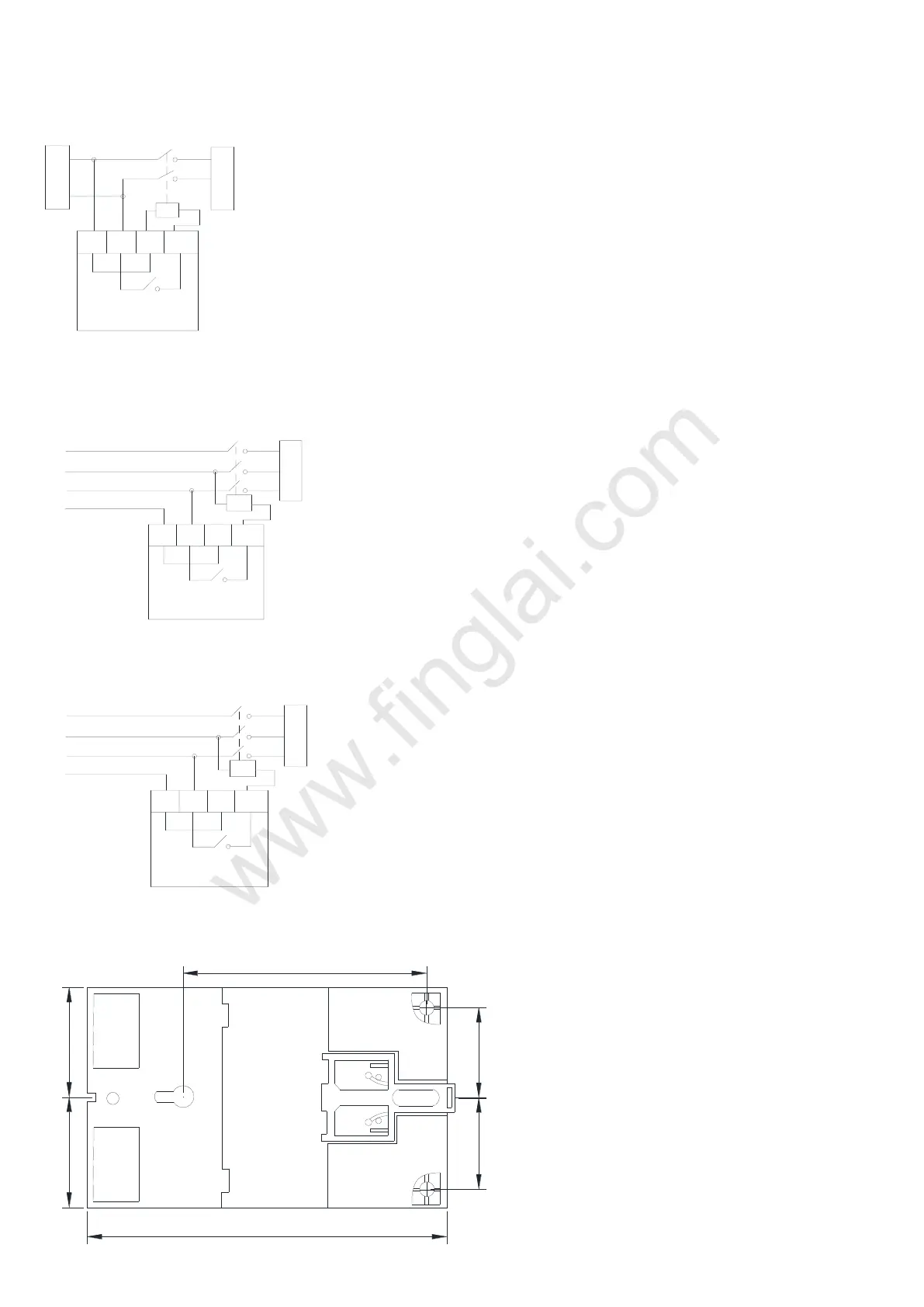

2. Single-phase expansion of the way wiring:
The controlled appliance is powered by a single phase, but the power consumption exceeds the rated
capacity of the switch, requires an AC contactor that exceeds the power consumption of the appliance
to expand. Wiring method as shown in Figure 2:
in
Load
KM
N
KG316T
outN
Power
3. Three-phase work wiring:
The controlled appliance is powered by a single phase, need for external three-phase AC contactor.
A. As shown in Figure 3:
The AC Control's coil voltage is AC220V 50HZ.
out
N
KG316T
Load
KM
N
A
in
B
N
C
B. As shown in Figure 4:
AC Control's coil voltage is AG380V 50HZ.
out
N
KG316T
Load
KM
N
A
in
B
N
C
▇ The installation size
35mm
29mm
35mm
82mm
120mm
29mm
