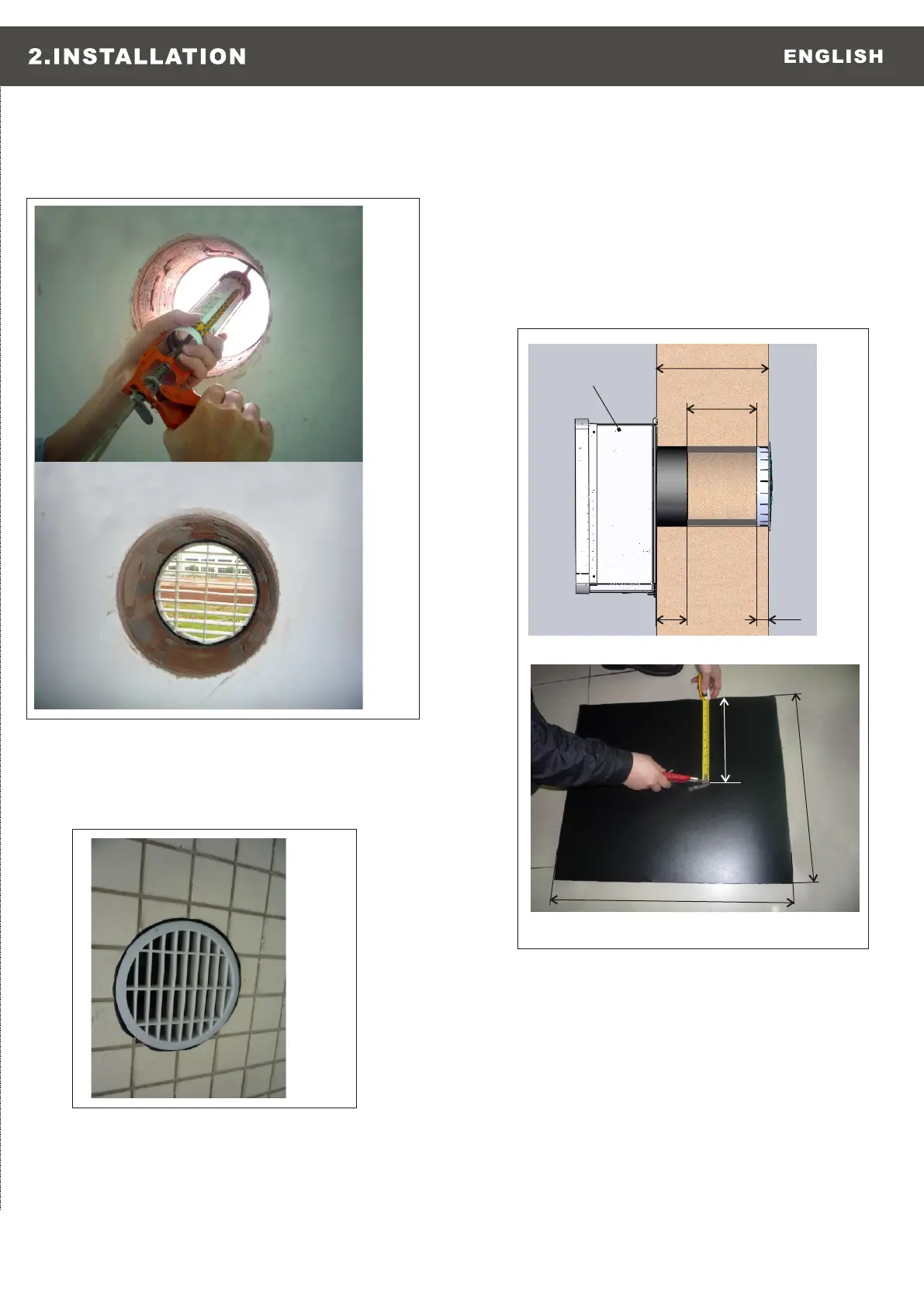

Fintek KYOTO - FIXING PLASTIC SHEET AND INSULATION

After fixing the outside grating,we could
inject more gel inside the space between the
grating and wall. (See P15,16)
After fixing the outside grating,insert the
plastic sheet with insulation supplied with the
conditioner into the holes.The sheets must
be 107mm shorter than the thickness of the
wall.(See P18)
Use
an ordinary cutter for the operation.
(
See P19)
The black silicon gel is just for reference,
we
could use white or transparent color gel
to fix the outdoor grille.(See P17)
P15
P16
P18
P19
P17
iCOOL unit
Wall thickness
T
Fan thickness
External grating
thickness
77mm
30mm
500mm
628mm
T
PLASTIC SHEET WITH INSULATION
2. 6 FIXING PLASTIC SHEET AND
INSULATION
32 KYOTO
