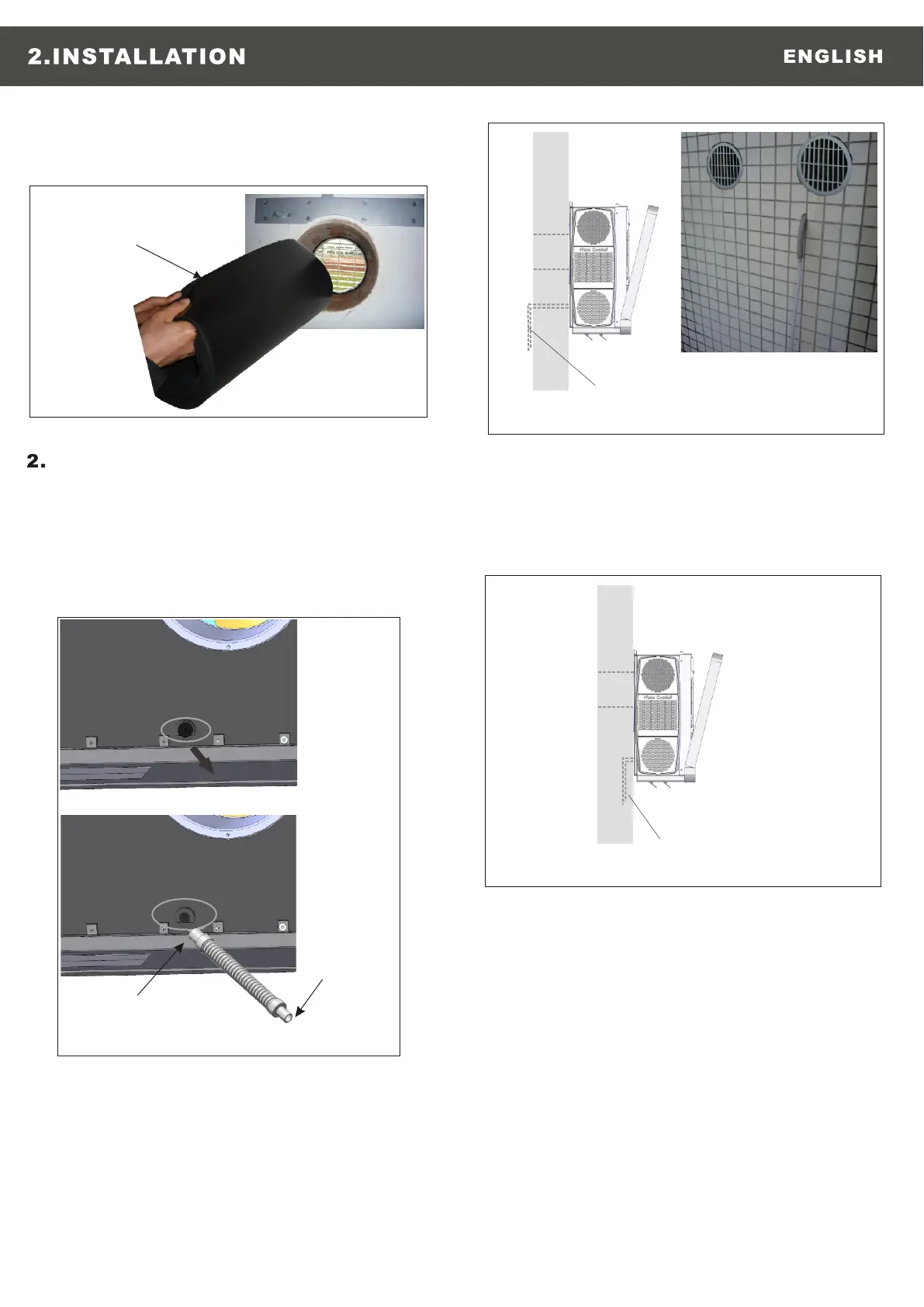

Connect the drain pipe(from rubber terminal)
to the air conditioner (back side) after
unplugged
the black rubber cup (see P22).
With this solution, you can drain the
condensate moisture to a suitable place to do
not cause any problems to your neighbours.
7
CONNECTING DRAINAGE PIPE
Soft terminal
Hard terminal
P22
P23
1. When the machine is installed in normal
climate or hot area, we can connect the
drainage pipe to outside,with a proper place.
(See P23)
Outdoor
Indoor
Drainage pipe
P24
2. When the machine is installed in very cold
area, the water in drainage pipe is frozen
easily in winter, we could connect the
drainage pipe inside the wall, and connect
with a proper place.(See P24)
Outdoor
Indoor
Drainage pipe
Roll the sheet and insert it into the hole,
paying attention to the splicing line, which
must
always face up wards. (See P21)
P21
Splicing line
KYOTO 33
