Power cord
The appliance shall not be installed
the laundry.
The appliance must be positioned so that the
plug is accessible.
The appliance shall be installed in accordance
with national wiring regulations.
P29
P25
P26 P27
Concrete anchor
P28
Fix with washer and nut

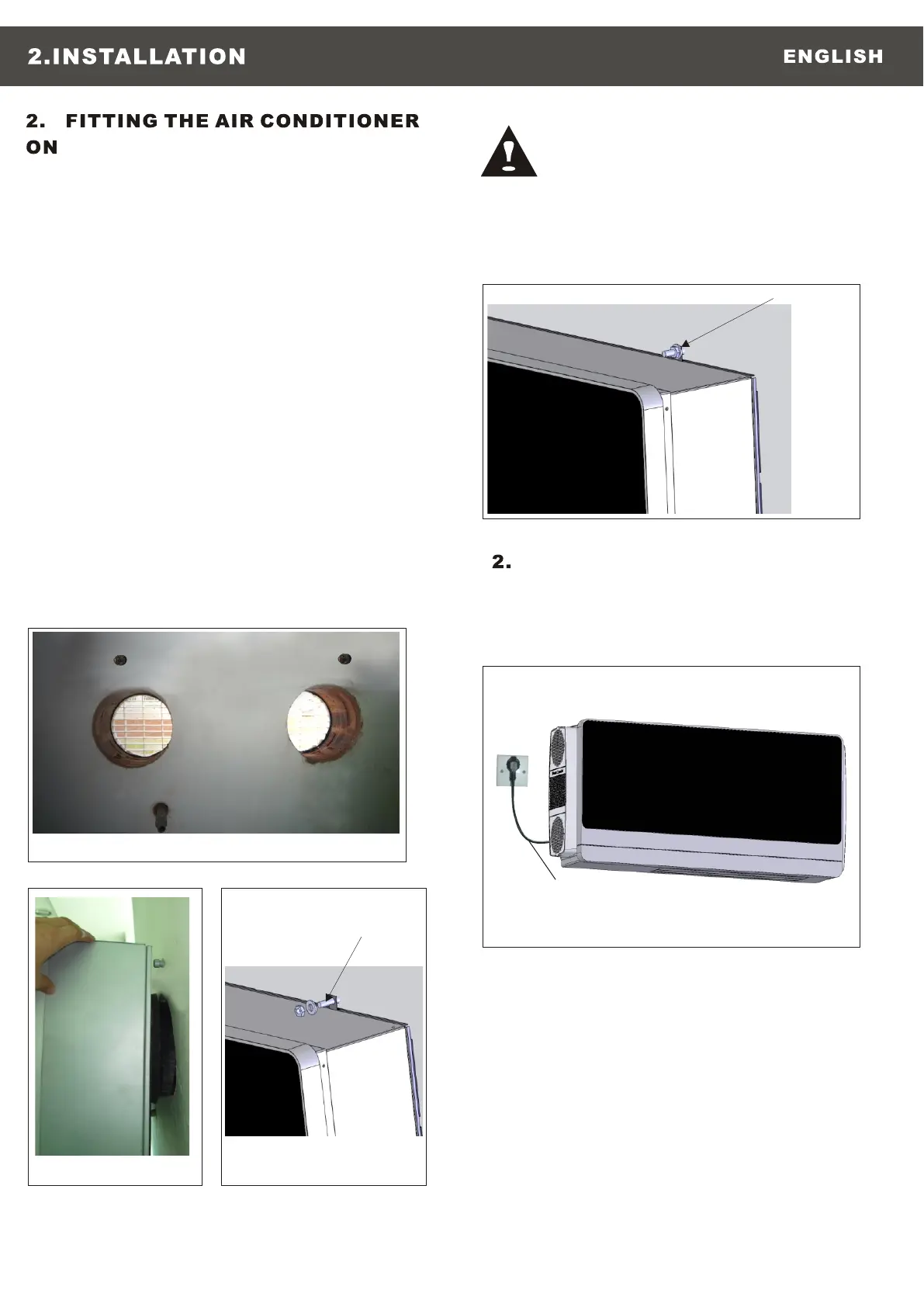

After checking again that the fastening
anchors are securely fastened to the wall,
and that any necessary preparations for
electric connection and condensate drainage
have been made, fasten the air conditioner
to its supporting anchors.(See P25)
Lift it up by holding the sides at the bottom,
slightly insert the outside fan rings into the
two big holes on the wall. (See P26) The
air conditioner can now be pu
shed firmly
against the wall,then lift the unit and make
sure the anchors and unit match well.
(See P27)
Inspect carefully the installation to make
sure that the insulating back panel must fit
firmly against the wall and there are no
fissures at the back of the air conditioner.
Fixing two nuts with top of the machine,
to make sure the unit is installed well.
(See P28,29)
8
ANCHORS
For every unit, there would be a power
cord on the left side(P29). Connect the plug
with the socket, and operate the unit.
9
POWER CORD CONNECTION
