P33
A
B

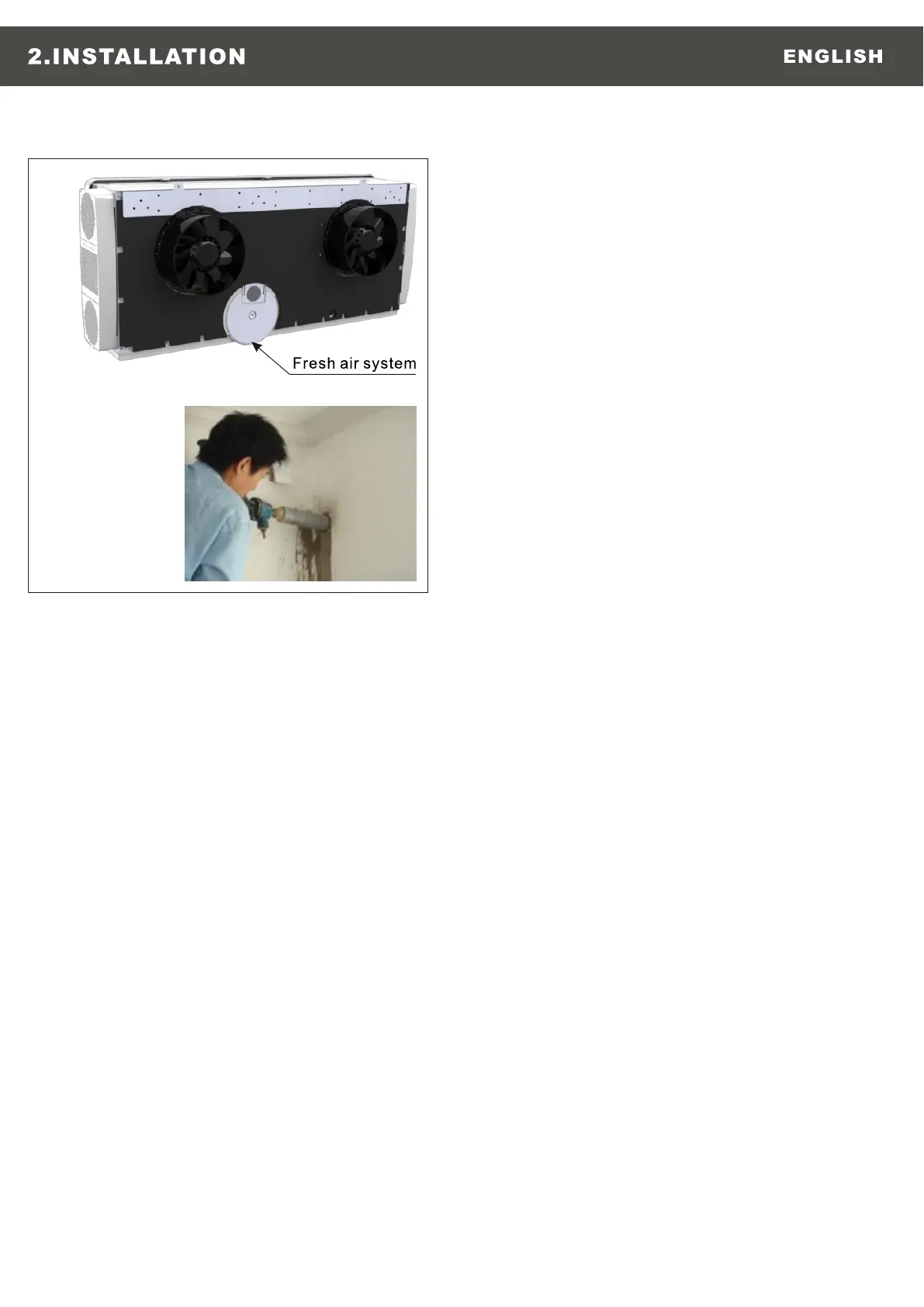

2.10 FRESH AIR SYSTEM(OPTIONAL)
There is fresh air system in the back of the
unit, and fresh air pipe is 50mm. The air
conditioner would change room air
automatically. In this way, new clean and
fresh air will be intaken to the room. Same
time, the air conditioner performance would
be lower. (See P33 A)
Drill a hole through the wall measuring 52mm
in diameter in the position shown in the paper
template, marked the center before. It is
essent
ial for the hole line to have a minimum
downward inelination at least 3 degrees
throughout its length. With this solution, in
the rainy day, the water could not come to
inside.(See P33 B)
KYOTO 35
