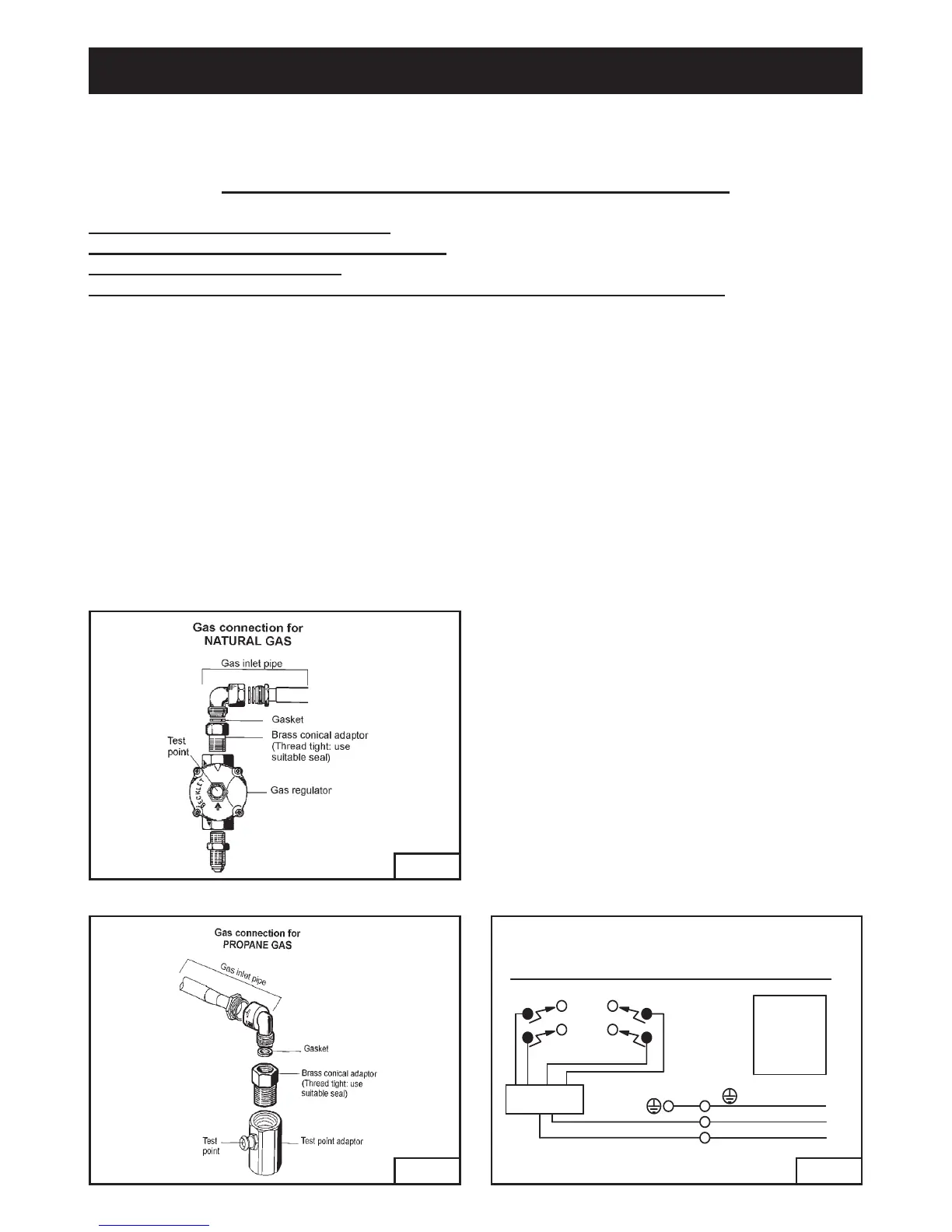

Fig.12
Fig.13 Fig. 14
HOT PLATES WITH 4 BURNERS
IGNITION
GENERATOR
ELECTRIC
WIRING
DIAGRAM
N
L
230 - 240 V~
8
INSTALLATION
Gas connection:
All rigid and flexible hose MUST have continuos walls.
There Should be NO stress on the internal gas lines
On completion of the gas connection -
- check the connection seal with soapy water.
- check the gas setting pressure
- check and adjust the gas burners if necessary. - see page 9 for ADJUSTMENTS
7) ELECTRICAL CONNECTIONS
The data label can be found on the underside of the cooktop. Check that the voltage rating of the
appliance corresponds to the supply voltage. The Hob may be connected to a 3 core supply flexible cord
and a 10 ampere plug.
The electrical connections of the appliance must be carried out by a qualified electrician.
WARNING: THIS APPLIANCE MUST BE EARTHED
Ensure that this power point is properly earthed. Look at the connection wiring diagrams (fig. 14).
