5. Once the Signal Booster is connected to the power source, it takes about 40 seconds to run a booting
routine. After that time, the Signal Booster is ready to be connected via USB cable to a computer
running Fiplex Control Software (FCS) to be properly configured.

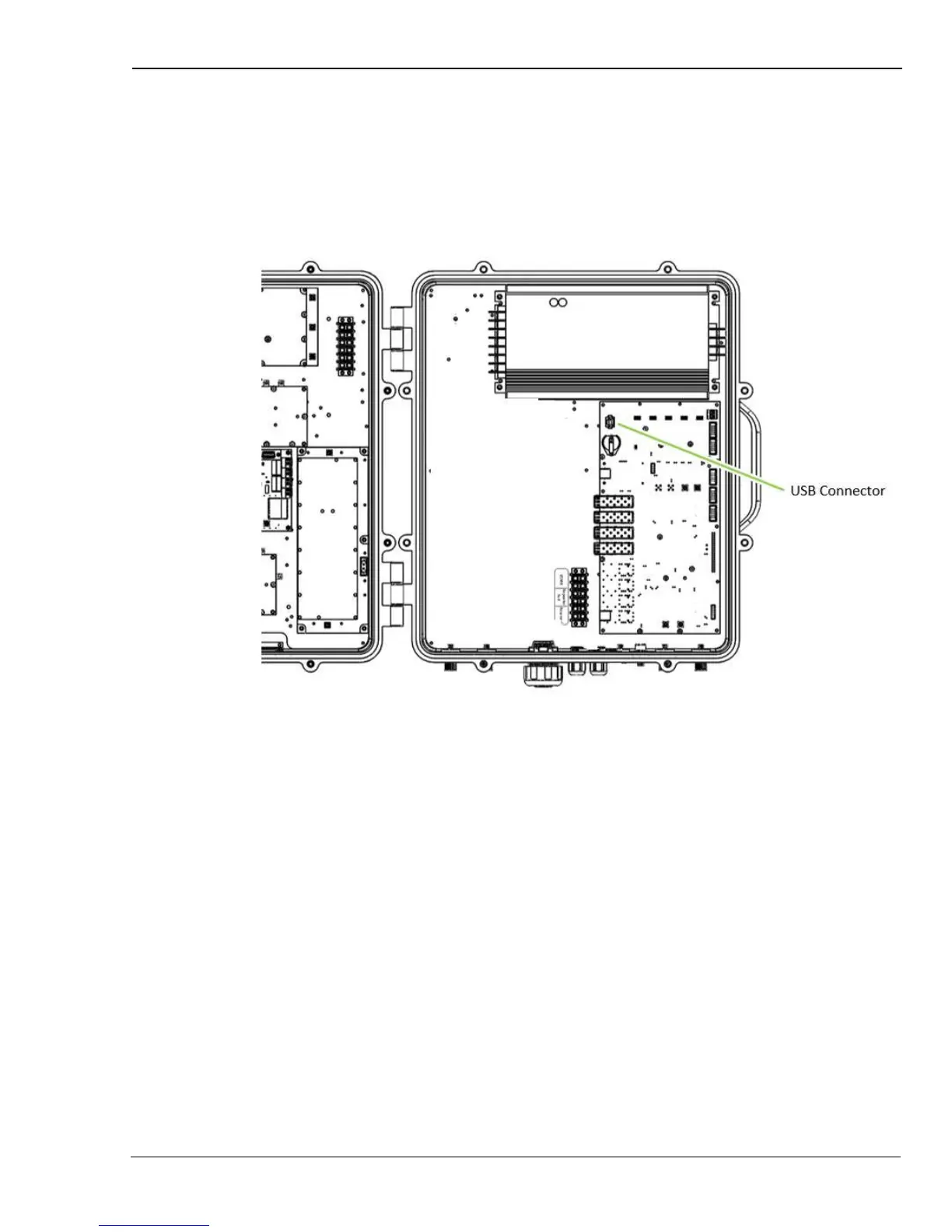

Figure 15; USB port location
