TOTALPAC2 Integrated Fire Protection System
Air Supply
FM-072G-0-06 G

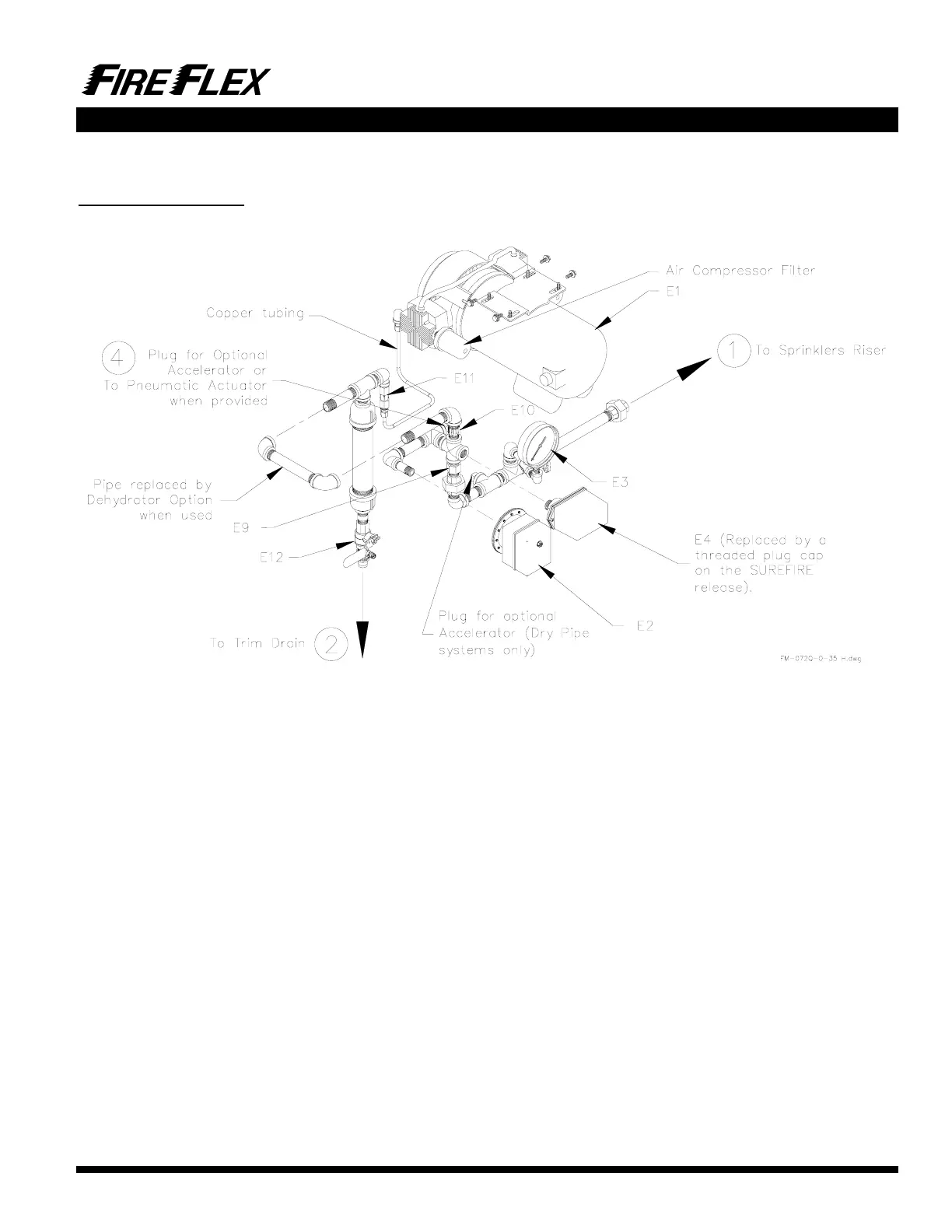

Figure 1 – Air Option "A"
(Cabinet mounted air compressor)
Air Option Components:
E1 Air compressor
E2 Air compressor "ON/OFF" pressure switch
E3 System air pressure gauge
E4 Air supervisory pressure switch
E5 N/A
E6 N/A
E7 N/A
E8 N/A
E9 Float check valve
E10 Soft-seat check valve
E11 Air compressor check valve
E12 Air option drain valve
E13 N/A
E14 N/A
E15 Compressor isolating switch (not shown)
Optional Components:
(see Air Supply Options for details)
- Viking Dehydrator
- Accelerator
