TOTALPAC2 Integrated Fire Protection System
Air Supply
FM-072G-0-06 G

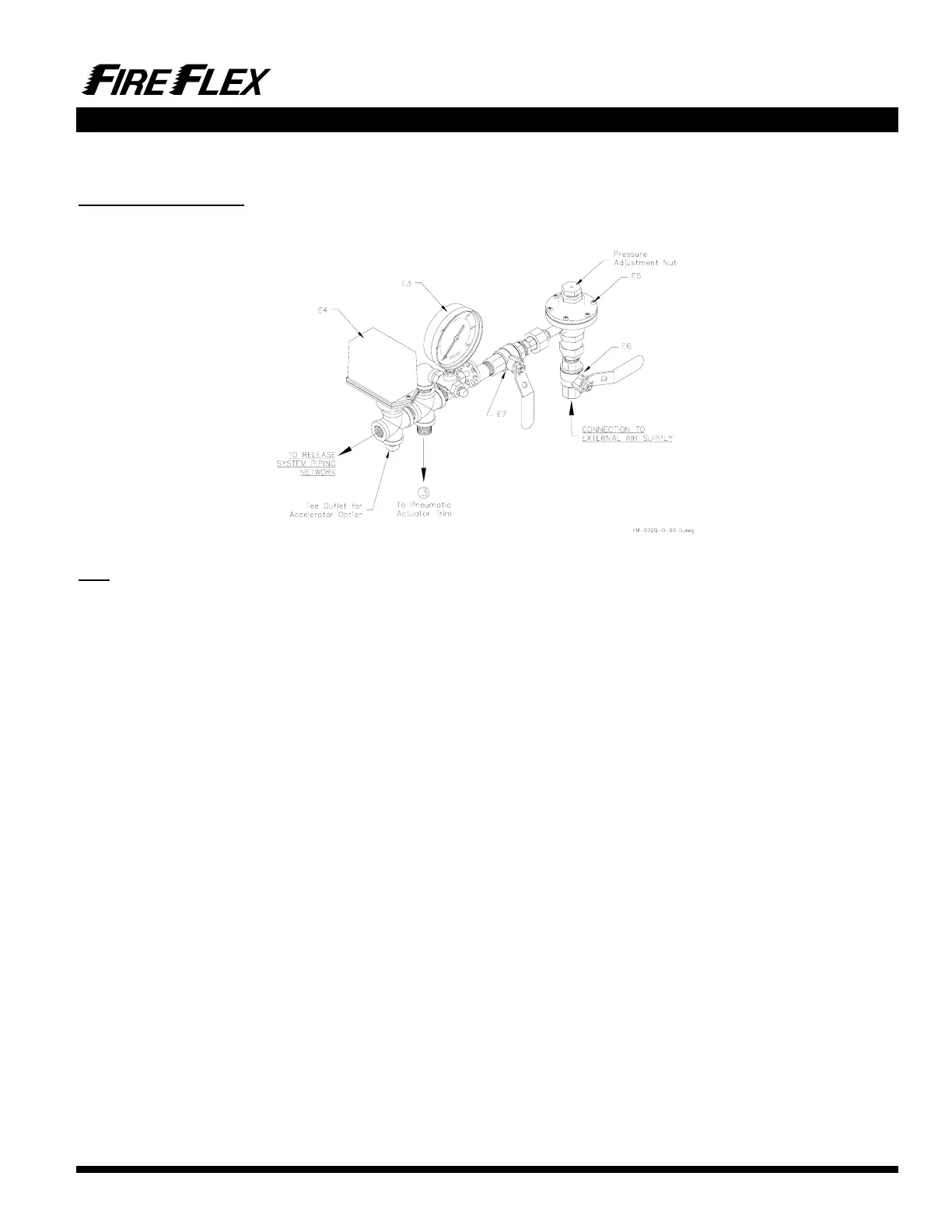

Figure 3 – Air Option "C"
(APMD for Pilot Line release system only)
Note: The external air supply must be restricted to insure that it cannot replace air as fast as it escapes when a releasing device or
sprinkler operates. When the system is put in service, open the input valve (E6) first.
Air Option Components:
E1 N/A
E2 N/A
E3 System air pressure gauge
E4 Air supervisory pressure switch
E5 Air pressure maintenance device (APMD)
E6 APMD input valve
E7 APMD output valve
Optional Components:
(see Air Supply Options for details)
- Accelerator
To Next Page
