Firefly Omniguard 860 Series - Mechanical Specifications; Physical Dimensions and Weights; Optional Accessories; Applications

5©Firey AB (Oktober 2016)
Mechanical Specications
(Figure 3 Shows Nominal Dimensions)
Length: 6,0 inches (153 mm)
Height: 4.5 inches (114 mm)
Width: 5.5 inches (140 mm)
Weights: (installed)
Aluminum Housing 5.0 lbs (2.4 kg)
Stainless Steel 13 lbs (6.3 kg)
Shipping weight:
Aluminum Housing 6 lbs (2.8 kg)
Stainless Steel 14 lbs (6.7 kg)
Optional Accessories
Swivel Mount - No 20856
(1)
(Used with aluminum enclosure)
No 70991
(2)
(Used with stainless steel enclosure)
Air Shield Kit - 8001023
Rain Shield - 23546
Portable test unit - Model 540 / 545

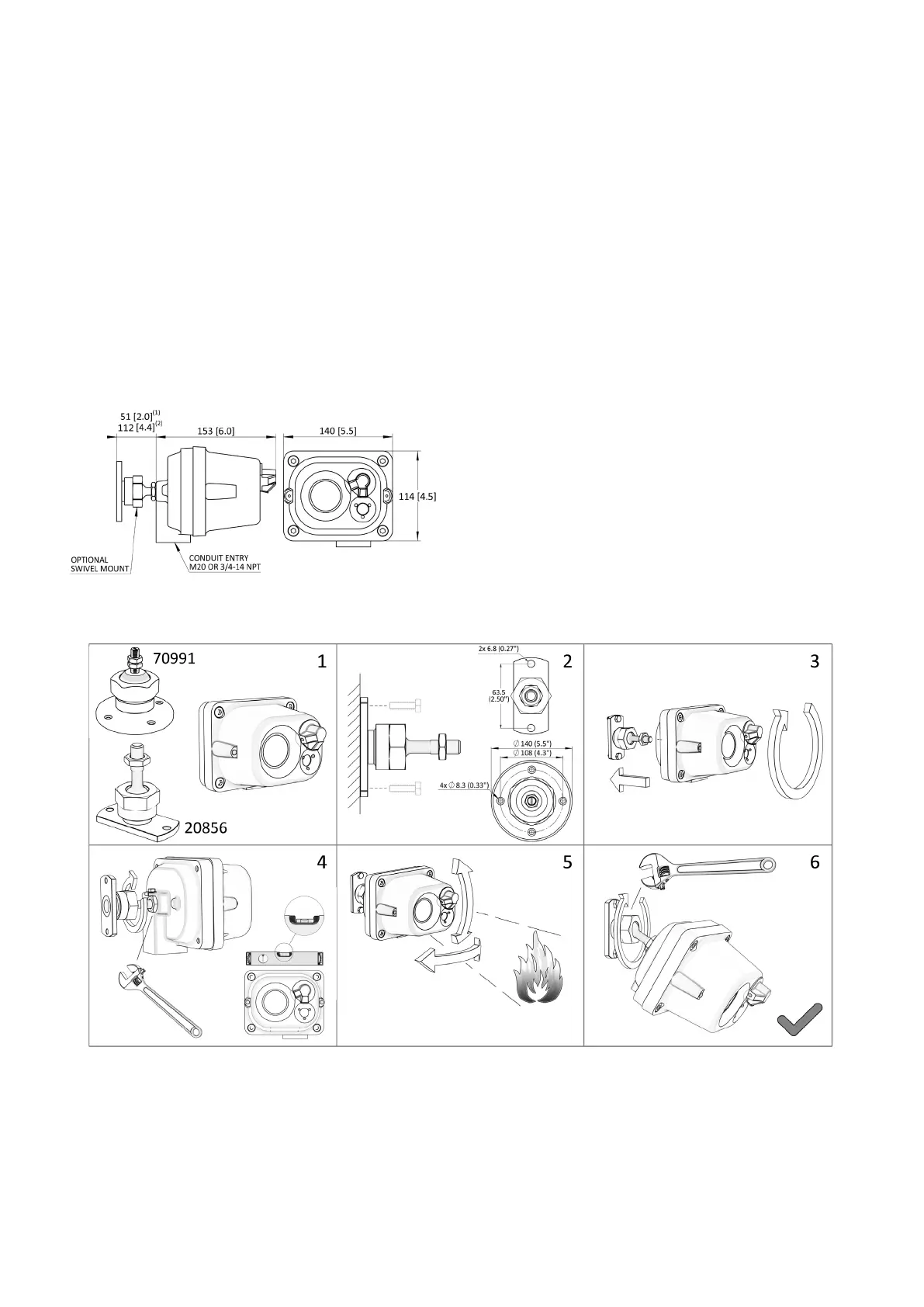

(Fig 4) 660/860 mechanical specications
Applications
The Model 660 and 860 ame detectors are designed for re detection
applications where sudden res from hydrocarbon fuels or when
proper options are selected, from specied non-hydrocarbon fuels,
may occur. These detectors are not recommended for smoldering or
electrical re hazards.
The following is a partial list of fuels which emit ultraviolet and infrared
radiation. Response time and detection distances vary. Consult Firey
AB applications engineers for specic details:
Hydraulic uid, Methyl-Ethyl-Ketone, wood products, jet fuels,
Methane, Kerosene, Propane, plastics, gasoline, Propylene, Acetone,
fuel oil, Acetylene, Methyl alcohol, Ethyl alcohol, Isopropyl alcohol,
Heptane, Toluene, Epoxy powders, crude oil, Butane, Hydrogen,
Hydrazine, Silane, N-heptane.
The rugged, weatherproof construction and the operating
temperature range of the detectors will accommodate a variety of
indoor and outdoor applications.
All installations should comply with local re codes and regulations.
Do not proceed with the installation if you do not understand the
installation procedure or operation of the detectors. Firey AB
applications engineers are available to assist you.
(Fig 5) Swivel Mount installation
