Firefox 5 - Page 3

14

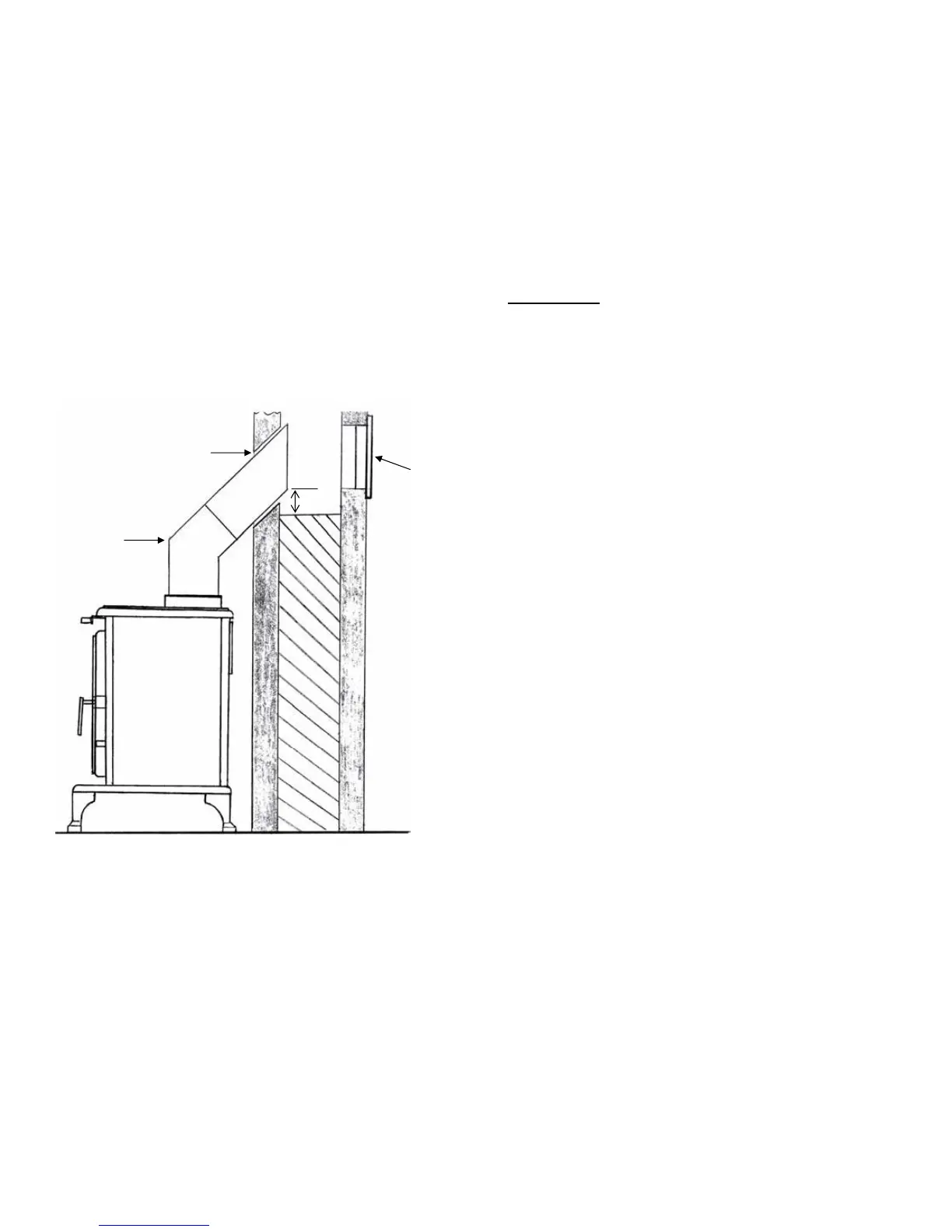

Typical Installation Into Infilled Masonary Fireplaces
Soot Door
Seal with fireproof lagging
Max150mm
Infill
45 deg minimum
3
1 FFX008 Flue Collar
2 FFX009 Flue Blanking Plate
3,5,6 FFX001 Stove Body (Rear,Right,Left Panel)
4 FFX003 Stove Top Panel
7 FFX002 Stove Base Panel
8 FFX005 Grate Support Plate
9 FFX006 Grate
10 FFX007 Stove Baffle Plate
11 FFX012 Side Brick
12 FFX013 Back Brick
13 FFX010 Leg
14,15 FFX004 Stove Door + Front Panel
16 FFX014 Ash Pan
17 FFX011 Fret
18 FFX024 Secondary Air Duct
19 FFX018 Door Glass
20 FFX027 Glass Panel Seal
21 FFX026 Door Seal
22 FFX023 Secondary Air Slide
23,26,30 FFX022 Primary, Secondary + Riddling Knob Set
25 FFX020 Primary Air Slide
27 FFX029 Operating Tool
28 FFX1 Mitten
29 FFX015 Grate Riddling Rod
31 FFX016, FFX017 Door Handle Assembly
32 FFX019 Door Glass Retaining Tabs
33 FFX028 Hinge Pin
34 - Stove Identification Label (non-replaceable part)
Firefox 5 Parts List
