Remove the propeller with a hex wrench,
Be careful not to be too tight when installing
the new propeller
When replacing the tail rod, pull the plug backwards
forcefully, pay attention to the direction when installing,
and align the power cord with the hole.
Unplug the plug, then twist the motor
left and right to pull out
Pull out the landing gear downwards,
and press the corresponding holes when installing.
Pay attention to the connecting rod direction when
disassembling and replacing the servo, as shown：
Pull out the big gear straight down, pay attention to the
direction when installing the new gear, and the axis plane
should be aligned with the plane of the inner hole of the gear.
When replacing the receiver, remove the double-sided tape together,
align the new receiver with the edge of the rack and stick it tightly
without skewing, and then connect the servo and the motor in the order of the plugs.
When removing and replacing the tail rotor, please
pay attention to the direction, align the motor shaft
and press it slowly to ensure smooth rotation.

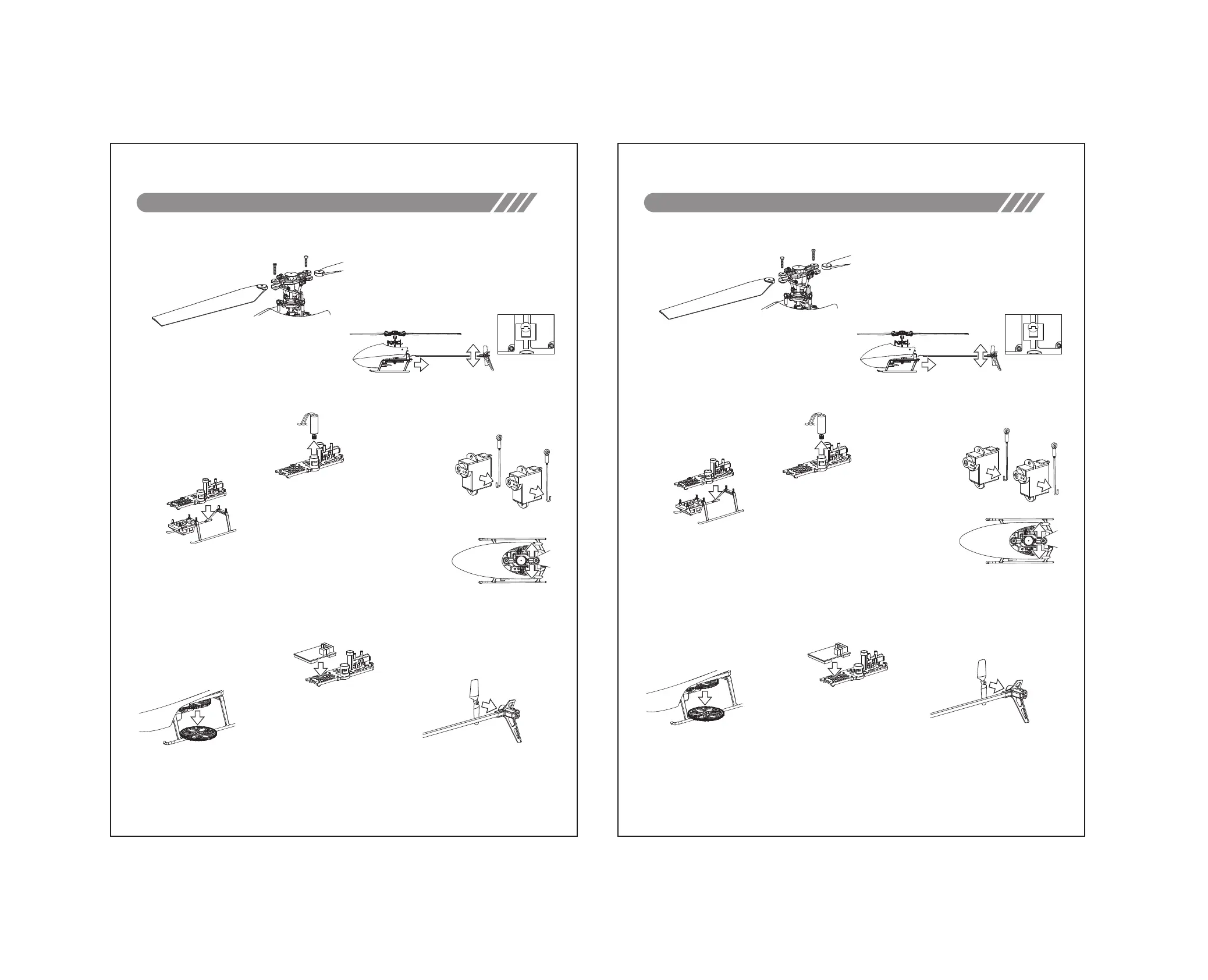

Parts replacement instructions
10
用六角扳手将螺旋桨拆下，
安装新的螺旋桨时注意不能太紧
更换尾杆是，先将微电视插头拔下，向后用力拔出，
安装时注意方向，电源线要对准孔位
将起落架向下拨出，安装时配合
对应孔位并压紧
先将插头拔掉，
将电机左右扭动向上拨出
拆换舵机时注意连杆方向，如图所示：
当更换接收机时，请将双面胶一同拿掉，将新的接收机
对齐机架边缘粘紧，不要偏斜，然后按照插头顺序连接
好舵机和马达
零部件更换指示
将大齿轮向下直接拔出，安装新齿轮时注意方向，
轴平面要与齿轮内孔平面对准.
拆换尾桨时请注意方向，对准马达轴慢慢压紧，
保证转动顺畅.
