Bronte Top Outlet AG Installation
FLOOR PROTECTOR DIMENSIONS:
Refer to drawings under 4.Installation Clearances.
The standard front clearance from the front of the door glass
can be reduced by
increasing the floor protector height, as tabled below:
FLOOR PROTECTOR HEIGHT 0 12.5 25 37.5 40 50 60 70 80 90 100 113
F/P DEPTH FOR PED OR D/BASE 511 484 460 436 433 409 391 376 361 343 325 300
F/P DEPTH FOR LEG BASE 400 364 331 300 300 300 300 300 300 300 300 300

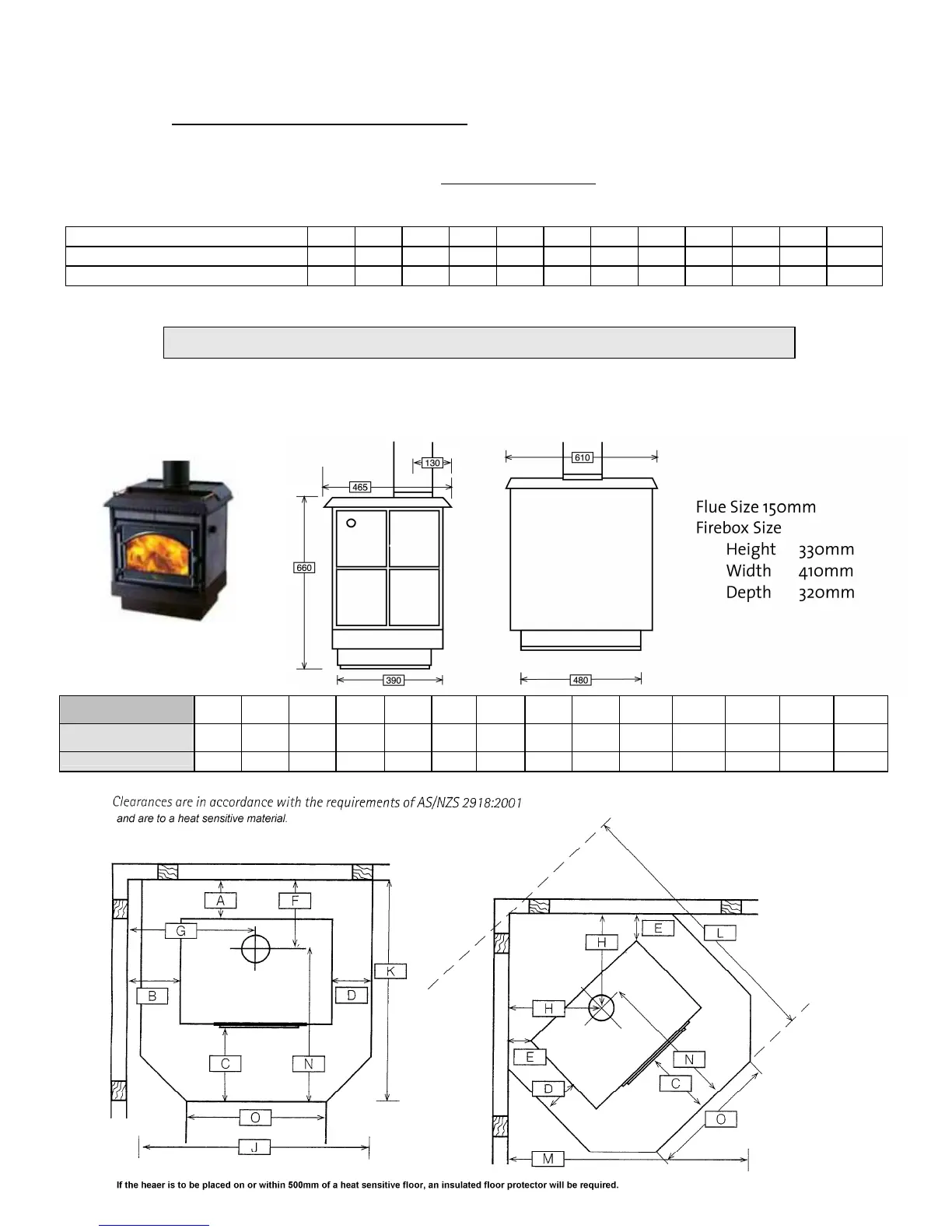

4. INSTALLATION CLEARANCES
When installing the Bronte Top Outlet AG on a leg base ADD 70mm to vertical
measurements given here:
BRONTE TOP OUTLET
AG
A B C D E F G H J K L M N O
PEDESTAL &
DRAWER BASE
100 250 435 100 50 230 555 355 810 1000 1295 1170 770 630
LEG BASE 100 250 300 100 50 230 555 355 810 865 1210 1080 635 630
Cooktop grill (supplied with fire) and flue shield must be fitted
