Version 29/8/16

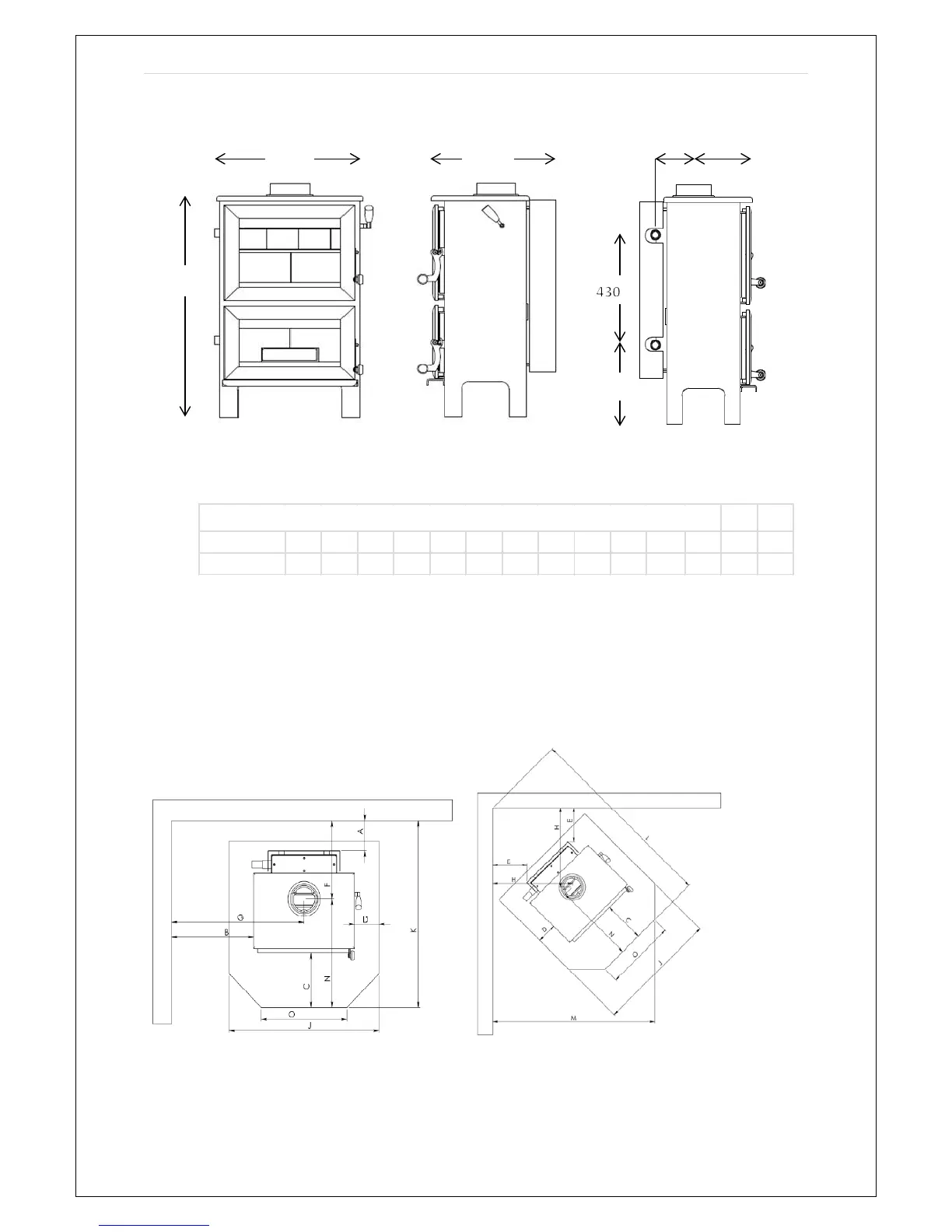

Note. Boiler outlets are 1” bsp and can be left or right handed. Shown here left handed. The faces of
female plumbing connections are 215 mm from centre of appliance.
Please note:_ All Clearances shown are from the steel body of the Fusion unless specified.
Dimension ‘A’ is shown from the rear heat shield to the rear wall, and dimension ‘B’ is from the side
of the top cast plate to the side wall.
Appliance MUST be installed with a Firenzo double flue shield
Clearance A B C D E F G H J K L M N O
mm 150 450 350 200 350 395 720 428 940 930 1170 970 535 460
