Finalizing the Installation 27
Travis Industries 93508103 151002
? If converting this unit to propane, do so now (see the instructions on page 40.

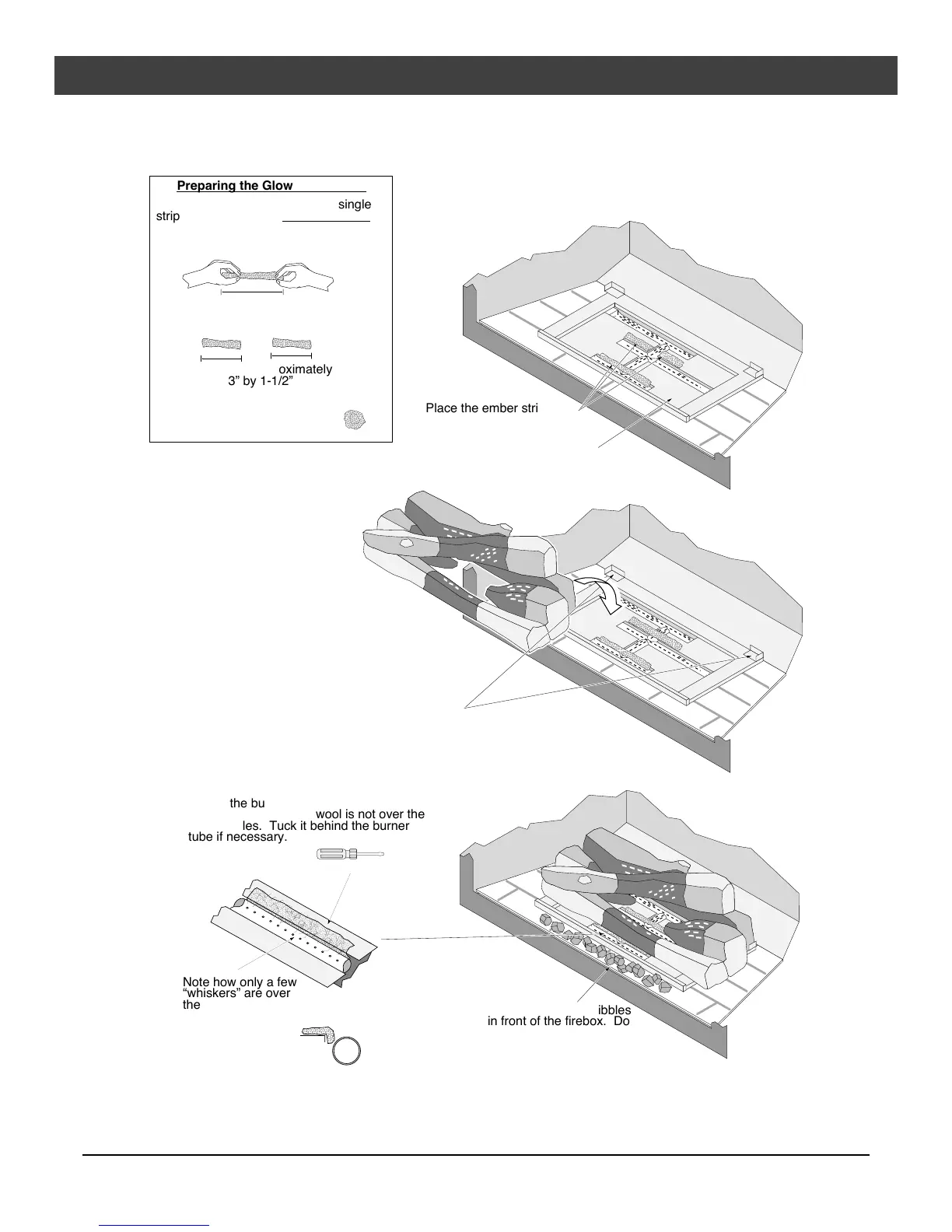

2 Install the log set and coals (if using the decorative fireback, install it prior to the log set - page 51).
Place the ember strips on
the grate as shown in this
illustration. The front
strip should hang half
way over the burner.
Grate
Place the log set on the
grate. Position the logs
so the rear corners rest
against the log stops.
Place the optional kibbles
in front of the firebox. Do
not place the kibbles directly
over the burner holes.
One Strip Approximately
7-1/2Ó by 1-1/2Ó
Two Strips Approximately
3Ó by 1-1/2Ó
Preparing the Glowing Embers:
The glowing embers comes in a single
strip. Stretch them as
thin as possible
(nearly transparent) to form three strips
of the following sizes:
There may be extra material -
save it for future use.
Side View
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
Tuck the front of the ember strip down,
behind the burner with a screwdriver. Make
sure the mat of ember wool is not over the
burner holes. Tuck it behind the burner
tube if necessary.
Note how only a few
ÒwhiskersÓ are over
the burner holes.
