FirePro FP-20SE - Page 14

FirePro Systems
REV. BYDATEDESCRIPTION
1.0 Cable connection guide line 24/06/2016 Michaelides Loucas
D
C
B
A
4 3 2 1
D
C
B
A
4 3 2 1
2 X 1mm +
Earthing wire
6.5 cm

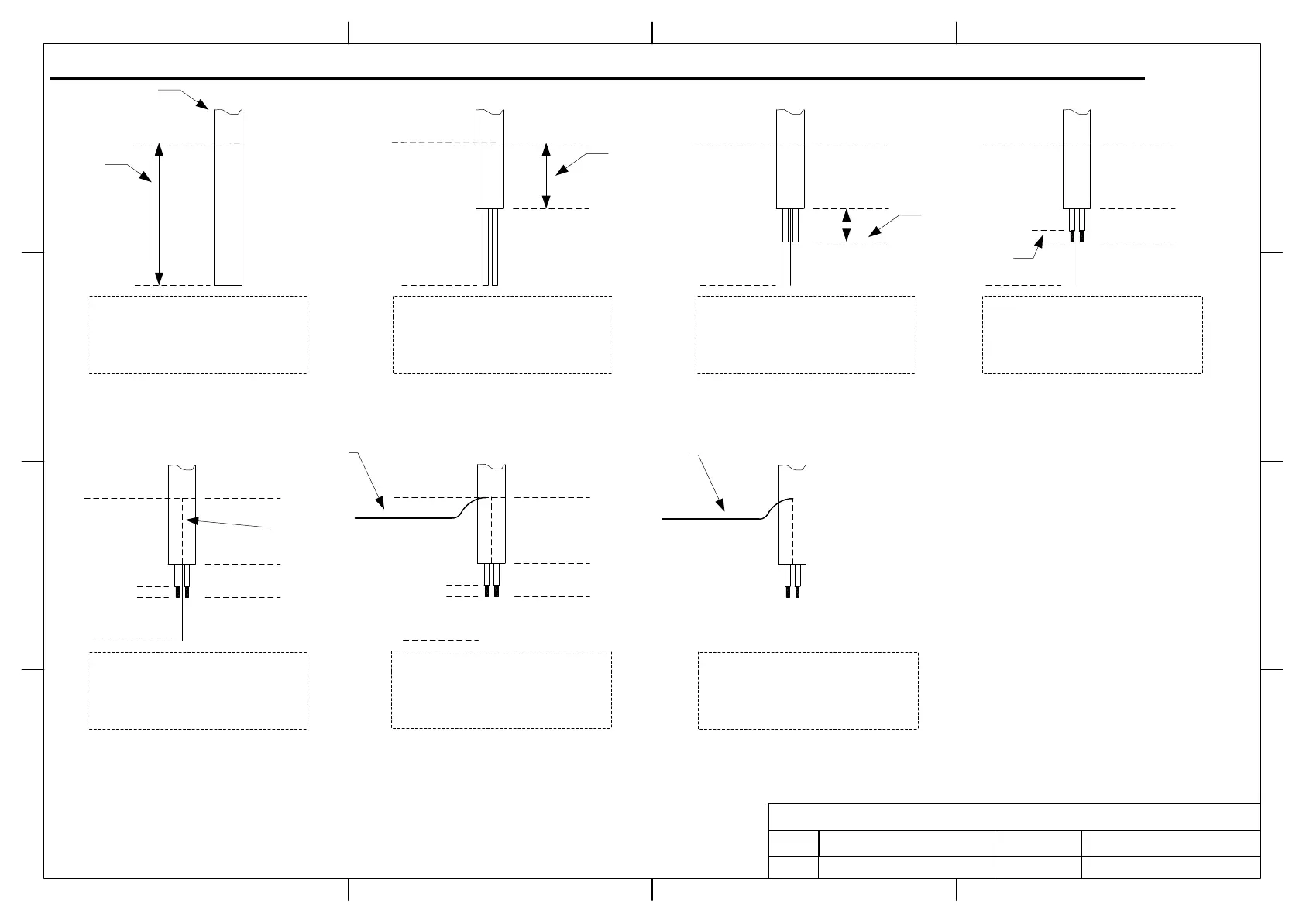

Step 3.1
Mark the cable 6.5cm from the edge
Point (A).
3 cm
Step 3.2
Mark 3 cm from point (A) to point (B).
Remove the shield of the cable from
point (B) to the edge of the cable.
A
A
B
1.5 cm
A
B
C
Step 3.3
Cut the positive wire ( + ) and negative
wire ( - ) 1.5 cm from point (B) to point
(C).
A
B
C
Step 3.4
Clean the positive wire ( + ) and
negative wire ( - ) 4mm approximately.
From point (C) to point (D).
4 mm
D
A
B
C
Step 3.5
Slice the shield of the cable from point
(B) to point (A).
D
4 mm
A
B
C
Step 3.6
Take out the earthing wire.
D
Step 3.7
Cable is ready to be used.
Page 3
Earthing wire
Earthing wire
FP-20SE/T/TH, FP-40S/T, FP-80S/T,FP-100S, FP-200S,FP-500S.
