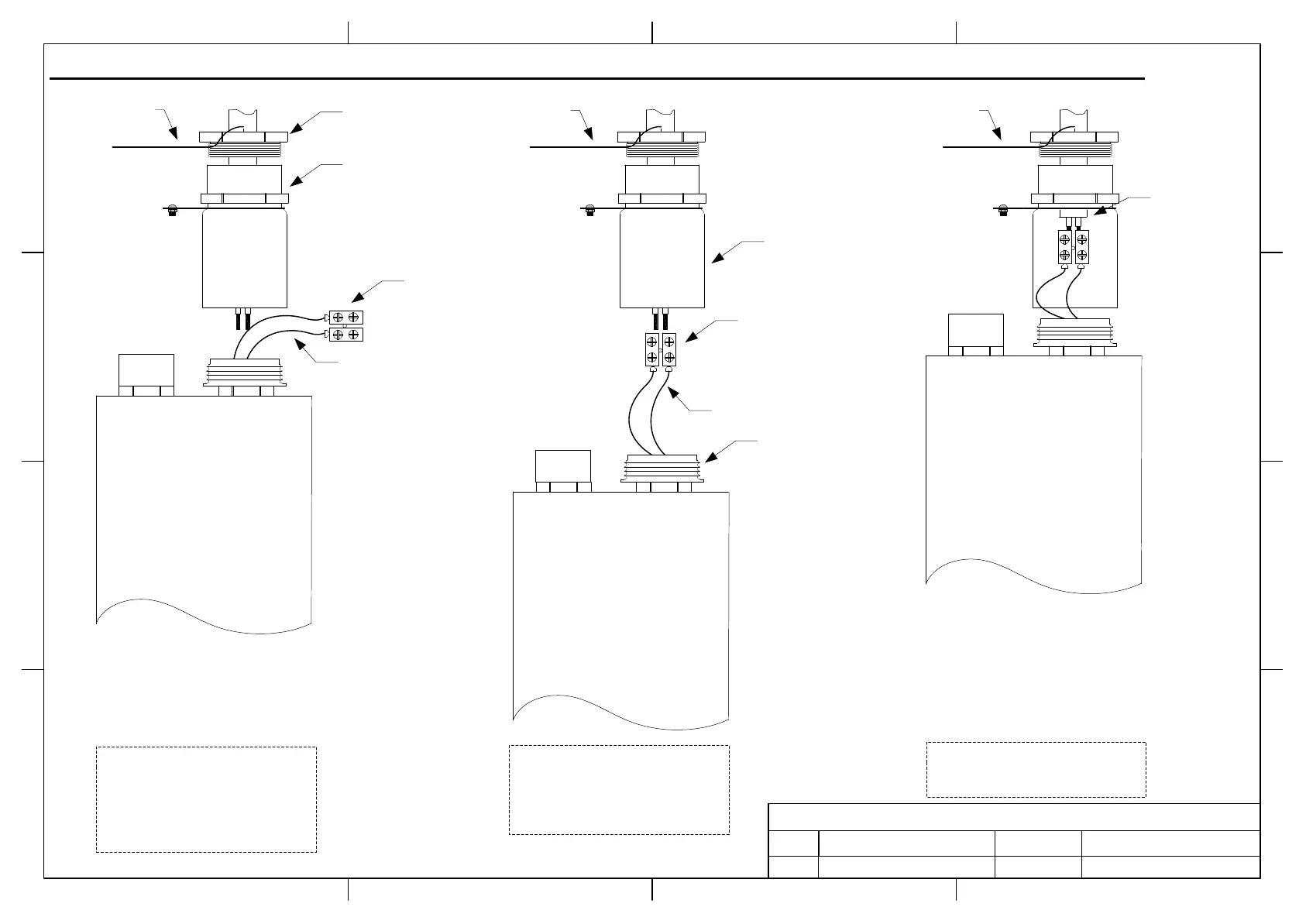

Step 4
Pass the prepared cable through the
Unit 1 = Cable gland fixing component
Unit 2 = Cable gland & Activator Cable
housing
Do not pass the earth wire.
Step5
Connect the cable wires, positive ( + )
& negative ( - ), with aerosol unit
connector with any of the 2 non
polarized activator cables.
Step 6
Pull back the cable.
Activator cable housing
PART 1
Activator cable housing
PART 2
Connector
Connector
FirePro
FirePro
Pull back the cable until
the edge of the cable
shield just shown
1.0 Cable connection guide line 24/06/2016 Michaelides Loucas
Cable gland fixing component
UNIT 1
Cable gland & activator cable housing
UNIT 2
FirePro
Page 4
Activator cables
Activator cables
Earthing wire
Earthing wire
Earthing wire
FP-20SE/T/TH, FP-40S/T, FP-80S/T,FP-100S, FP-200S,FP-500S.
