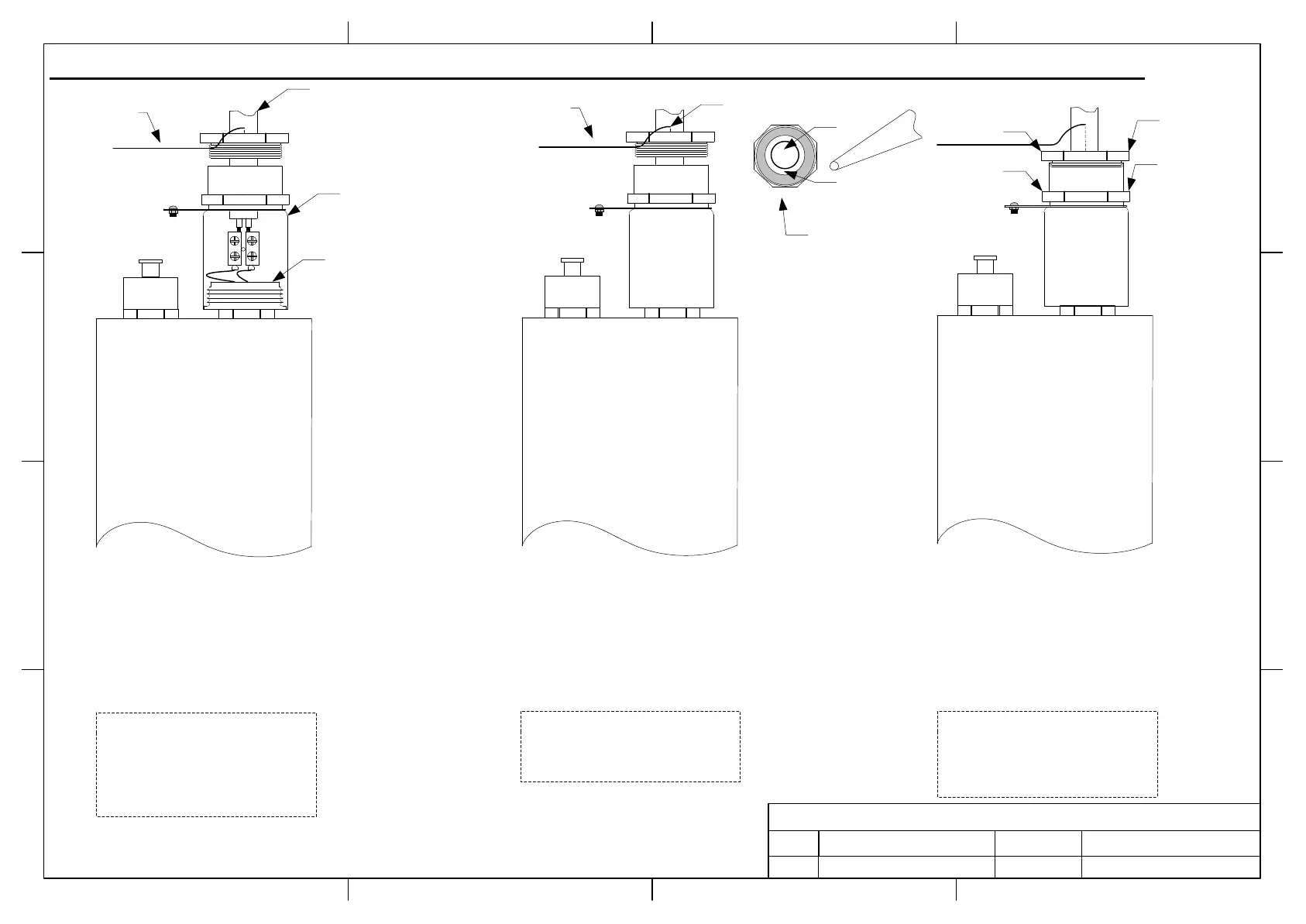

Step 7
Hold the cable avoiding the turning of
the connector within housing while
turning by hand the activator cable
housing (part 1) with activator cable
housing (part 2).
Step 8
Put silicone within the gland.
Step 9
By using two spanner keys Connect
Unit 1 (cable gland fixing component)
with Unit 2 (Cable gland & activator
cable).
FirePro
FirePro
Activator cable housing
PART 1
Activator cable housing
PART 2
Hold the cable
Put Silicone
FirePro
Cable
Put Silicone
Spanner key # 22
1.0 Cable connection guide line 24/06/2016 Michaelides Loucas
Cable gland fixing
component TOP VIEW
Cable gland fixing
component
UNIT 1
Cable gland & activator
cable housing
UNIT 2
Spanner key # 22
Page 5
Earthing wire
Earthing wire
