FirePro FP-20SE User Manual

FirePro Systems
REV. BYDATEDESCRIPTION
D
C
B
A
4 3 2 1
D
C
B
A
4 3 2 1

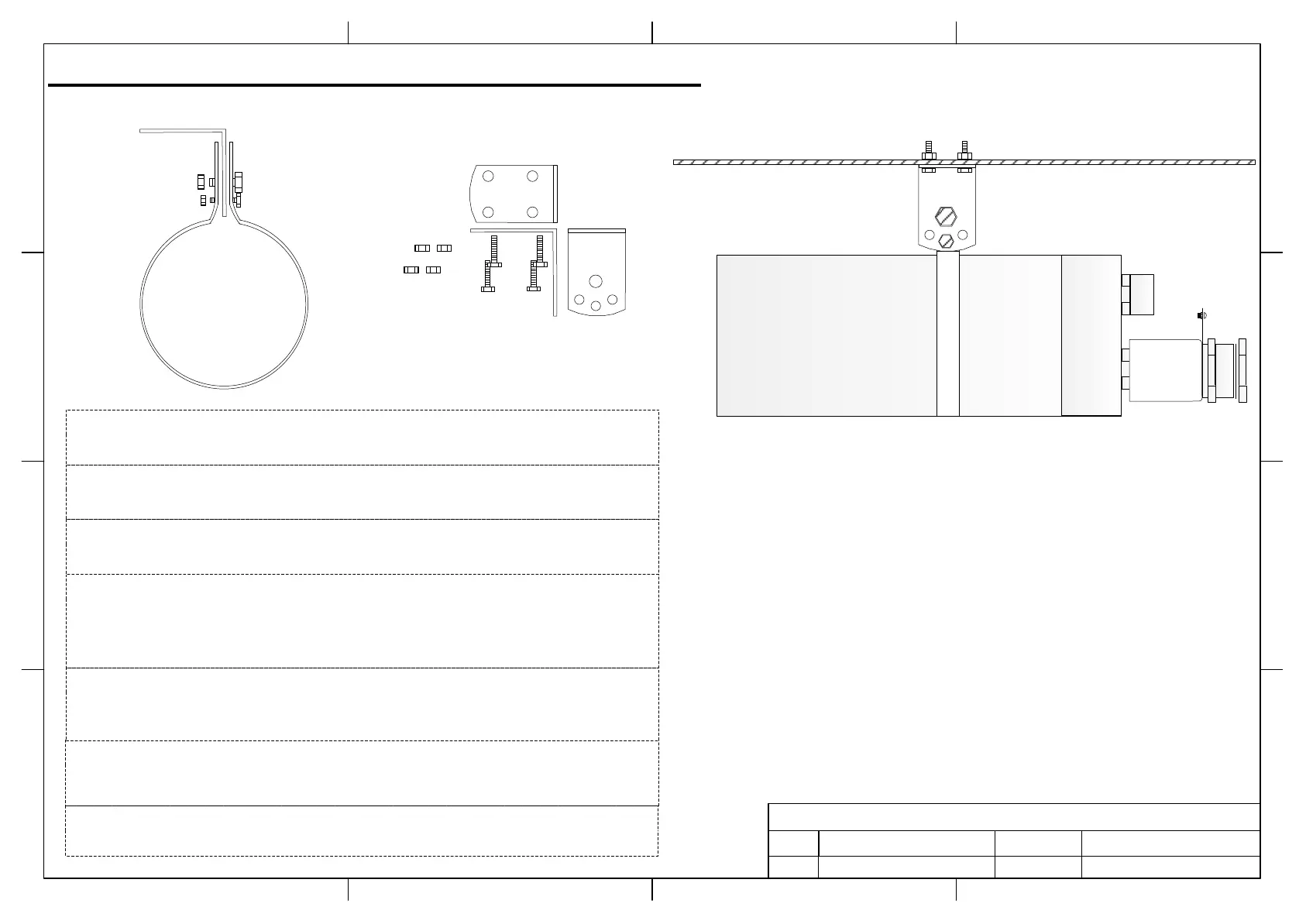

Aerosol Generator FP-100S & FP-200S
1.0 Generator Installation guide line 24/06/2016 Michaelides Loucas
FirePro
Step 7
The aerosol generator is ready for cable connections.
Step 6
Pass the selected screws through the ( L ) bracket holes and fix them on the surface
material.
Page 5
Step 5
Select type of screws suitable to the surface material to be fixed (these screws are
not supplied with the kit).
Step 4
Pass the screws through the aligned holes and tide them with the spanner key 11,13
to the nuts. Use screw size “M8” for the longer hole and screw size “M6” for the
smaller hole.
Step 2
Take ( L ) bracket and place it inside the ( Ring ) bracket.
Step 3
Align ( L ) bracket holes to the ( Ring ) bracket holes.
Step 1
Pass through the Aerosol Generator the Ring Bracket

FirePro FP-20SE Specifications

General

Brand	FirePro
Model	FP-20SE
Category	Portable Generator
Language	English
