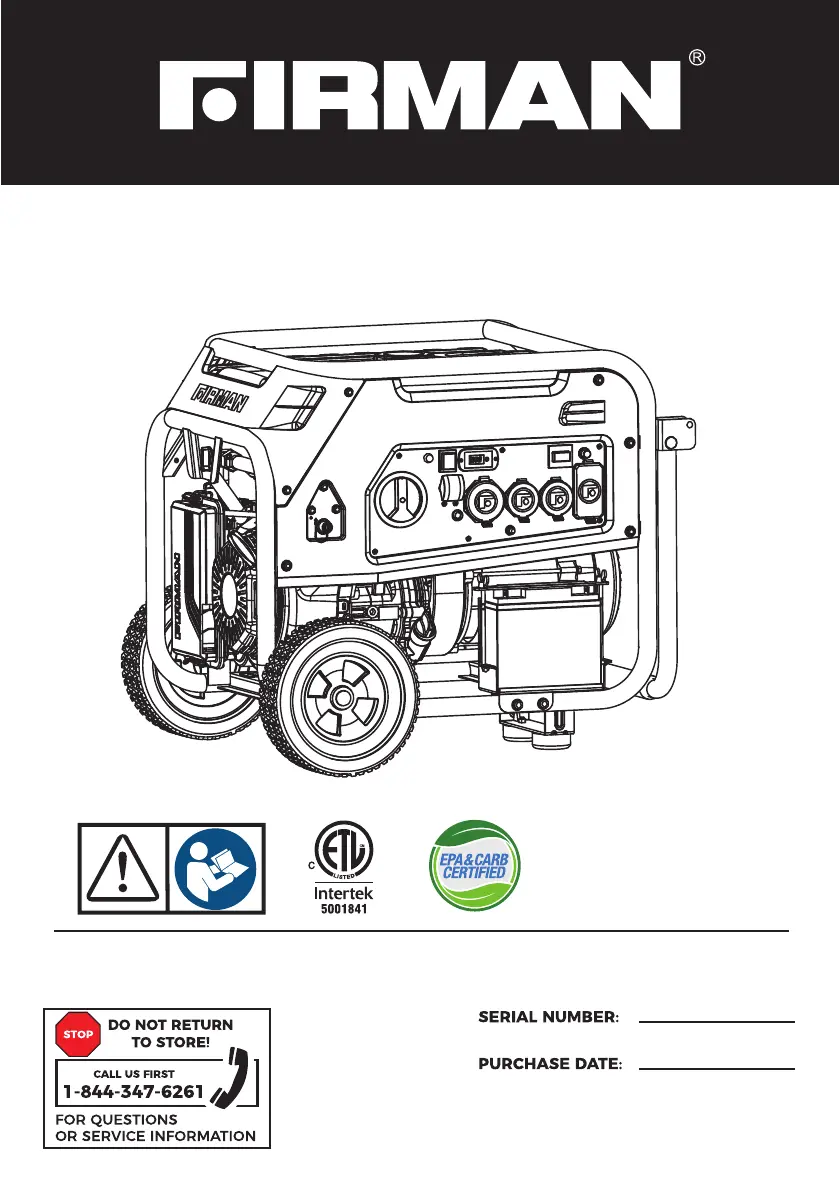

OPERATORS MANUAL
Record product information to reference when ordering parts or
obtaining warranty coverage.
TRI-FUEL PORTABLE GENERATOR
MODEL NUMBER
T 0 8 0 7 2
Rev Level:00
P/N:380745472 Rev:00

Questions and Answers

  • E
    eharmonAug 2, 2025
    What to do if Firman Portable Generator engine is running, but no AC output is available?
    • M
      Mr. Daniel MunozAug 2, 2025
      If your Firman Portable Generator's engine is running but there's no AC output, it could be due to several reasons: * The circuit breaker might be open. Try resetting it. * Poor connection or defective cord set. Check and repair. * The connected device is faulty. Connect another device that is in good condition.
  • S
    Sergio RodgersAug 8, 2025
    Why Firman Portable Generator engine lacks power?
    • U
      ugrantAug 8, 2025
      If your Firman Portable Generator engine lacks power, consider the following possible causes: * The load might be too high. Avoid overloading the generator. * The air filter may be dirty. Replace it. * The fuel filter could be clogged or dirty. Clean or replace it. * The spark arrester might be clogged. Clean or replace it.
  • K
    Kimberly JohnsonAug 12, 2025
    What to do if Firman Portable Generator engine runs good at no-load but “bogs down” when loads are connected?
    • K
      Krista PatelAug 12, 2025
      If your Firman Portable Generator runs well without a load but bogs down when loads are connected, here are a few things to check: * A short circuit in a connected load. Disconnect the shorted electrical load. * Clogged or dirty fuel filter. Clean or replace the fuel filter.
  • M
    Michele JonesAug 18, 2025
    What causes Firman Portable Generator engine to shut down when running?
    • J
      John GalvanAug 18, 2025
      Your Firman Portable Generator might shut down while running due to: * Lack of gasoline or LPG/NG. Refill the fuel tank with gasoline or replace the LPG cylinder / check NG supply. * A dirty air cleaner. Clean or replace the air cleaner. * Low oil level. Fill the crankcase to the proper level, or place the generator on a level surface.
  • A
    Ana RivasAug 22, 2025
    Why Firman Portable Generator engine“hunts”or falters?
    • J
      Justin EstradaAug 22, 2025
      If your Firman Portable Generator engine “hunts” or falters, it could be due to a clogged or dirty fuel filter. Try cleaning or replacing the fuel filter.
  • Z
    zbakerOct 28, 2025
    Why Firman Portable Generator engine will not start, runs rough, or shuts down?
    • D
      dmayOct 28, 2025
      There are several reasons why your Firman Portable Generator might not start, run roughly, or shut down: * The fuel selector switch might be in the OFF position. Set it to “GAS” or “LPG/NG”. * The indicator light is OFF or flashing red, it must be solid red to start. * Low oil level. Refill to the proper level, or place the generator on a level surface. * A dirty air cleaner. Clean or replace it. * Out of gasoline. Refill the fuel tank. * Stale gasoline. Drain the tank and carburetor and refill with fresh gasoline. * Spark plug wire not connected. Connect the wire to the spark plug. * Bad spark plug. Replace it. * Water in the gasoline. Drain the tank and carburetor and refill with fresh gasoline. * Flooded. Wait 5 minutes and re-crank the engine. * Clogged or dirty ...

Summary

Introduction to the Firman Generator

Features and Controls Overview

Generator Operation Guide

Safe Operating Location and CO Prevention

Emphasizes outdoor operation and carbon monoxide hazards for safe generator use.

Adding Engine Oil

Step-by-step instructions for adding the correct engine oil for optimal performance.

Adding Gasoline and Fuel Requirements

Details how to add gasoline and the required fuel specifications.

Connecting LPG;NG Fuel

Instructions for safely connecting liquid petroleum gas or natural gas.

Starting the Generator on Gasoline

Step-by-step guide for starting the generator using gasoline.

Generator Shutdown and CO Alert System

Details the process for stopping the generator and the function of the CO Alert system.

Maintenance and Storage Guide

Engine Oil and Filter Maintenance

Covers procedures for changing engine oil and maintaining the air filter.

Troubleshooting and Specifications

Firman T08072 Specifications

General IconGeneral
BrandFirman
ModelT08072
CategoryPortable Generator
LanguageEnglish
