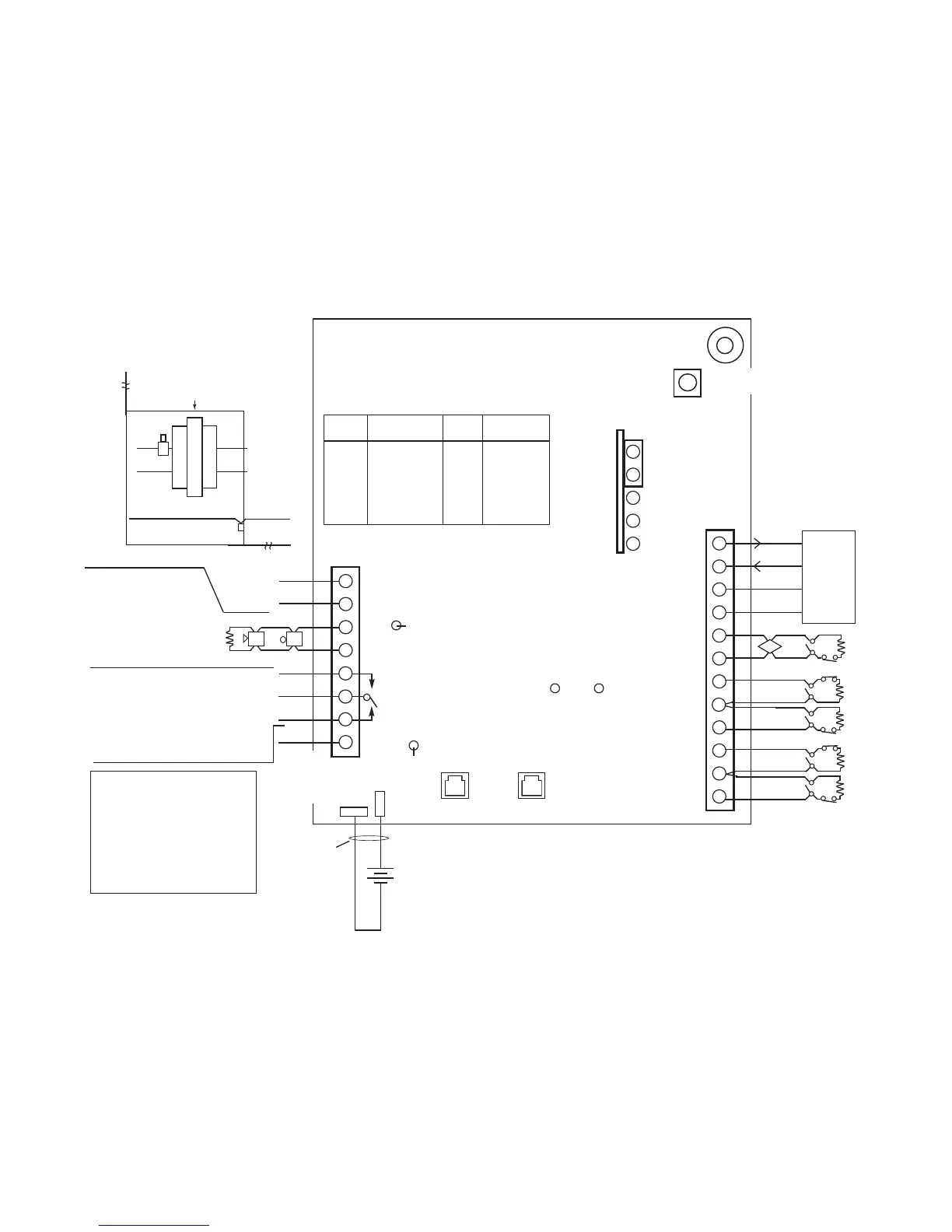

FA2000C OF CONNECTIONS
THIS EQUIPMENT SHOULD BE INSTALLED IN ACCORDANCE WITH THE NATIONAL FIRE
PROTECTION ASSOCIATION'S STANDARD 72 (NATIONAL FIRE PROTECTION ASSOC.,
BATTERY MATCH PARK, QUINCY, MA 02269). PRINTED INFORMATION DESCRIBING
PROPER INSTALLATION, OPERATION, TESTING, MAINTENANCE, AND REPAIR SERVICE
IS PROVIDED WITH THIS EQUIPMENT.
WARNING:
OWNERS INSTRUCTION NOTICE NOT TO BE REMOVED
Refer to the FA2000C installation installations N8026-1
for additional information
SEE AC
TRANSFORMER
CONNECTIONS
ABOVE
(SUPERVISED)
NOTES:
Note 1:
Supervision may be disabled by cutting jumper W2 and
programming zone 6 for no response.
Note 2:
The combined standby current drawn from aux power and
relay power cannot exceed 350mA.
The combined alarm current drawn from aux power , relay
power, and bell cannot exceed 1.0A.
Note 3:
All circuits are power limited except transformer 18VAC
output.
WARNING:
THIS UNIT MAY BE PROGRAMMED TO INCLUDE AN ALARM
VERIFICATION FEATURE THAT WILL RESULT IN A DELAY
OF THE SYSTEM ALARM SIGNAL FROM THE INDICATED
FIRE CIRCUITS. THE TOTAL DELAY (CONTROL UNIT PLUS
SMOKE DETECTORS) SHALLNOT EXCEED 60 SECONDS.
NO OTHER DEVICES SHALL BE CONNECTED TO THESE
CIRCUITS UNLESS APPROVED BY THE LOCAL AUTHORITY
HAVING JURISDICTION.
CIRCUIT CONTROL UNIT SMOKE DETECTORS
ZONE 1-5 NOTES:
ALL ZONES PROVIDE STYLE B SUPERVISION
ZONE RESISTANCE (EXCLUDING EOLR)
+ ZONES 1- 4: 300 OHM MAX
+ ZONE 5: 100 OHM MAX
ZONE RESPONSE: 300-500 MILLISECOND
(ALL ZONES)
ZONE 5 RATINGS: + 10-14VDC
+2 MA MAX FOR 2-WIRE SMOKE
DETECTORS. UP TO 16 DETECTORS OF TYPE
SPECIFIED IN INSTRUCTIONS MAY BE USED
+ UL COMPATIBILITY ID: A
2K EOLR IS MODEL 610-7
N.O.
N.C.
2k
2-WIRE SMOKE DETECTOR LOOP
REMOTE KEYPAD.
OPTIONAL FOR
SLAVE DACT
INSTALLATIONS.
REQUIRED FOR
STAND ALONE
CONTROL
INSTALLATIONS.
YELLOW
GREEN
BLACK
RED
RJ31X
RJ31X
BACK-UP DIALER
PHONE JACK
COMPLIES WITH FCC RULES, PART 68 FCC
REG. NO: AC398U-68192-AL-E
RINGER EQUIVALENCE: 0.7B
THE DELAY TIME MARKED ON THE INSTALLED
DETECTORS IS TO BE USED
BELL CIRCUIT SUPERVISION JUMPER
INTACT: SUPERVISED USING 2k EOLR
CUT: NOT SUPERVISED (NO EOLR USED)
W2
(WHITE)
AUXILIARY
RELAY
W3
(RED)
RELAY POWER
JUMPER
EARTH
GROUND
MAIN DIALER
PHONE JACK
BUZZER SILENCE SWITCH
PUSH ONCE TO SILENCE,
PUSH AGAIN TO RESET
LED INDICATOR BOARD
PLUG BOARD
INTO THE J5 9-PIN
HEADER AS SHOWN
AC POWER
(GREEN)
BATT TROUBLE
(YELLOW)
COMM FAIL
(YELLOW)
LINE FAULT
(YELLOW)
SILENCED
(YELLOW)
J5
WARNING BUZZER
ACTIVATES ON ALARMS,
SUPERVISORIES AND TROUBLES
AUX POWER RATING: 10-14VDC,
350mA MAX, POWER LIMITED
NOT SUPERVISED
(SEE NOTE 2)
6137, 6137R, 6139 OR 6139R MAY
BE USED AS A REMOTE KEYPAD,
KEYPAD COLOR SUBJECT TO
APPROVAL OF LOCAL AUTHORITY.
ONLY THE
FA550KP MAY BE
USED TO PROGRAM PANEL
REFER TO INSTRUCTIONS FOR
MAX # OF KEYPADS AND WIRE
LENGTH RESTRICTIONS.
KEYPAD CONNECTION NOT
SUPERVISED
}
MAKE CONNECTIONS TO SEPARATE TELE-
PHONE LINES USING CABLES SUPPLIED.
SUPERVISION IS PROGRAMMABLE
WARNING: TO PREVENT RISK OF ELECTRICAL
SHOCK, DISCONNECT TELCO JACK
BEFORE SERVICING THIS PANEL
CONNECTION OF THE FIRE ALARM SIGNAL TO
A FIRE ALARM HEADQUARTERS OF A CENTRAL
STATION SHALL BE PERMITTED ONLY WITH
THE APPROVAL OF THE LOCAL AUTHORITY
HAVING JURISDICTION.
2k
MODEL
#610-7
AUX RELAY HAS PROGRAMMABLE FUNCTION
(NOT SUPERVISED)
JUMPER W3 INTACT: 10-14VDC ON TERMINAL 6
350mA MAX (STANDBY)/1A MAX (ALARM),
POWER LIMITED (SEE NOTE 2). USE TERMINAL
18 FOR GOUND RETURN.
JUMPER W3 CUT: NO VOLTAGE ON TERMINAL 6.
RELAY CONTACT RATING: 30VAC/VDC,
2A MAX RESISTIVE LOADS
PROVIDES STYLE Y SUPERVISION
WHEN POLARIZED ALARM
DEVICES ARE USED (SEE NOTE 1)
RATINGS:
10-14VDC,
1A MAX,
POWER LIMITED
(SEE NOTE 2)
BLUE
BLUE
N.O.
POLE/RELAY +
N.C.
GREEN
SEE
EARTH GROUND
CONNECTIONS
ABOVE
BATT –
BATT +
RED BLACK
USE BATTERY CABLES
SUPPLIED
12V LEAD ACID BATTERY
7AH MIN/14 AH MAX.
SEE INSTRUCTIONS FOR
REQUIRED CAPACITY AND
BATTERY MOUNTING
FLOAT CHARGING
VOLTAGE: 13.7V
MAXIMUM CHARGING
CURRENT:
1.0A
BATTERY NORMALLY NEED
NOT BE REPLACED FOR AT
LEAST 3 YEARS
}
18VAC, 40VA NOT
POWER LIMITED.
CONNECT TO
AC POWER
TERMINALS 1, 2
MAINTAIN 1/4
SPACING TO
OTHER WIRING.
NOTE: USE WIRES HAVING INSTALLATION
RATED FOR 90C OR HIGHER
GREEN
GREEN
BLACK
BLUE
BLUE
WHITE
2A CIRCUIT
BREAKER
}
ALARM POLARITY SHOWN
9
1
2
3
4
8
10
11
12
13 14 15
16
17 18
DATA OUT
DATA IN
GROUND
AUX. POWER +
ZONE 5 –
ZONE 5 +
ZONE 4 +
ZONE 3/ZONE 4 –
ZONE 3 +
ZONE 2 +
ZONE 1/ZONE 2 –
ZONE 1+
5
MAY BE USED AS A SLAVE DACT PROVIDING CENTRAL OR REMOTE STATION SERVICE FOR A CENTRAL
OR REMOTE STATION UL LISTED FACP. MAY ALSO BE USED AS A STAND- ALONE NON-CODED LOCAL,
CENTRAL STATION AND REMOTE STATION PROTECTED PREMISES UNIT PROVIDING MANUAL FIRE
ALARM, AUTOMATIC FIRE ALARM, SPRINKLER SUPERVISORY AND WATER FLOW ALARM. INSTALLATION
LIMITS UNDER JURISDICTION OF LOCAL AUTHORITY.
ENCLOSED TRANSFORMER
(LOWER LEFT HAND CORNER OF FA2000C CABINET)
REPLACE COVER AFTER WIRING
120VAC, 60Hz,
600mA MAX
CONNECT TO
A DEDICATED
CIRCUIT
CONNECT TO
PROPER EARTH
GROUND. SEE
INSTRUCTIONS
}
CONNECT TO EARTH
GROUND TERMINAL 8
7
6
AC
AC
BELL +
BELL –
BACK-UP
DIALER
LINE
SEIZE
(GREEN)
MAIN
DIALER
LINE
SEIZE
(GREEN)
N.O.
N.C.
2k
N.O.
N.C.
2k
N.O.
N.C.
2k
N.O.
N.C.
2k
HORN
BELL
19 20
