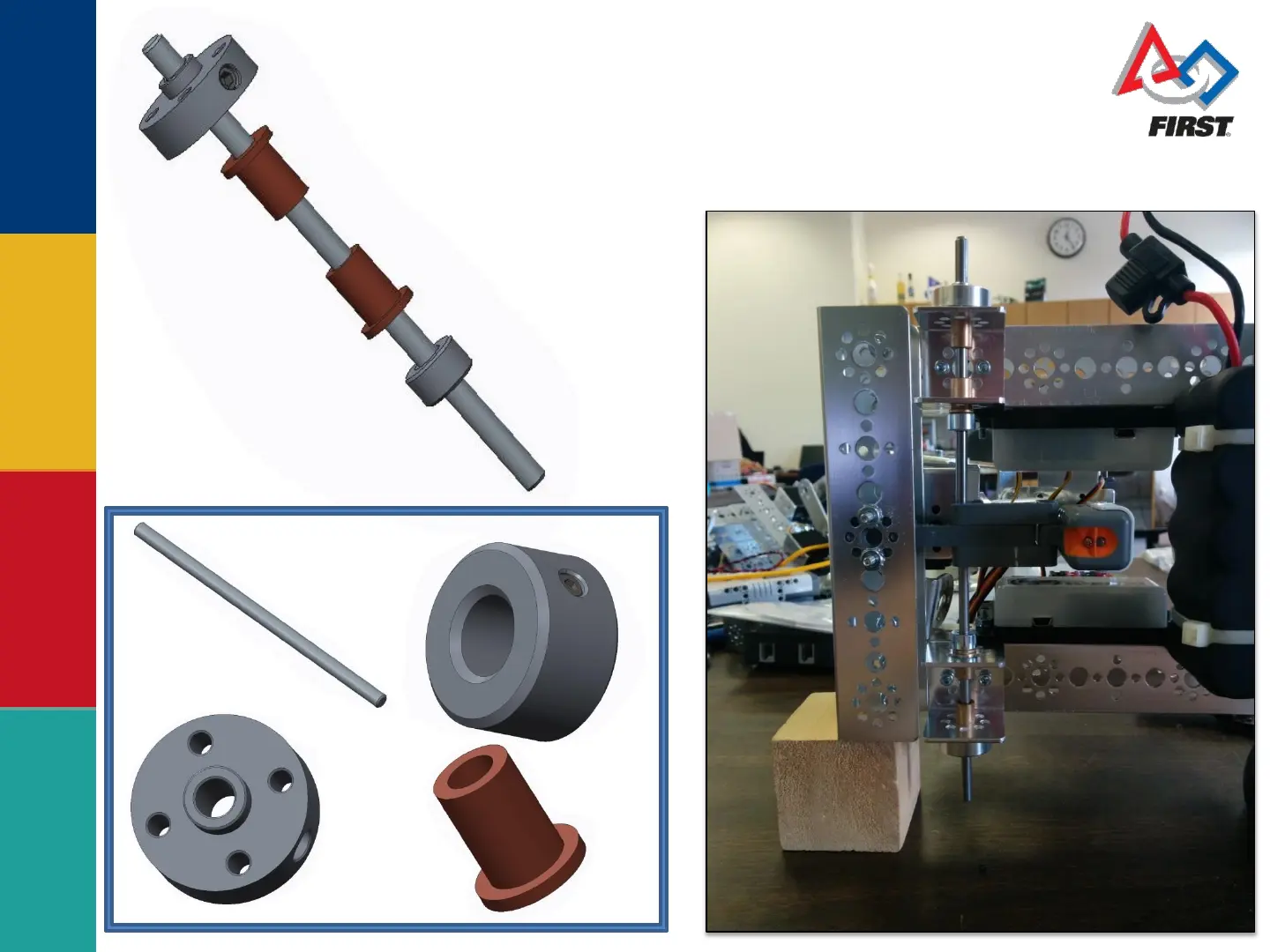

Build the axle assembly for both axles. Build them
through the 32mm C channels using one axel, two
bushings, one axle hub, and one axle collar for
each assembly. Make sure the bushings are in the
holes of the C channel.
2x
2x
2x
4x
