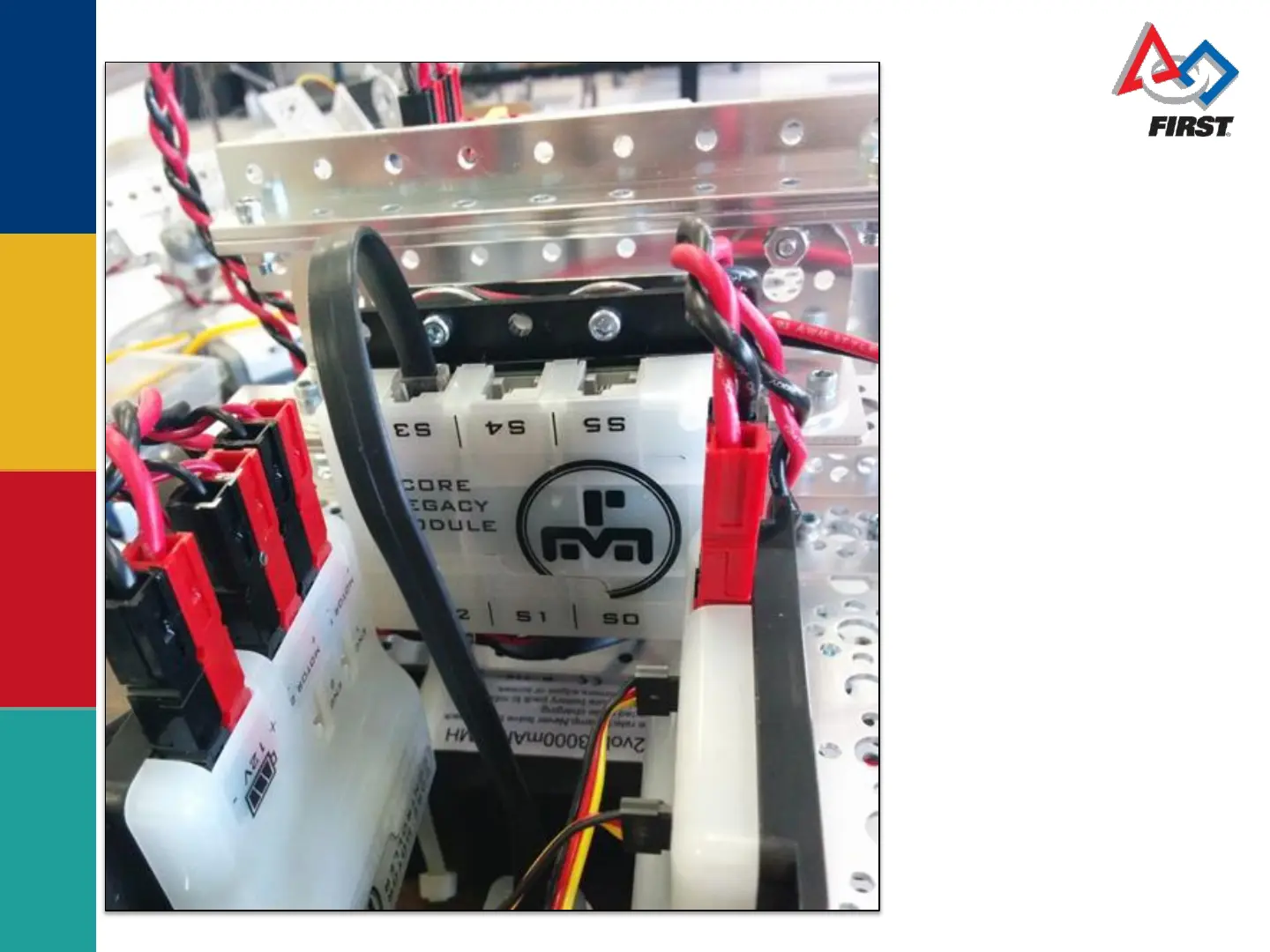

Use the NXT
style cables to
connect the two
sensors. The IR
seeker should be
in port 2 and the
reflected light
sensor should be
in port 3. Note
that ports are
zero-indexed.
