4150K and 4160K Series
32

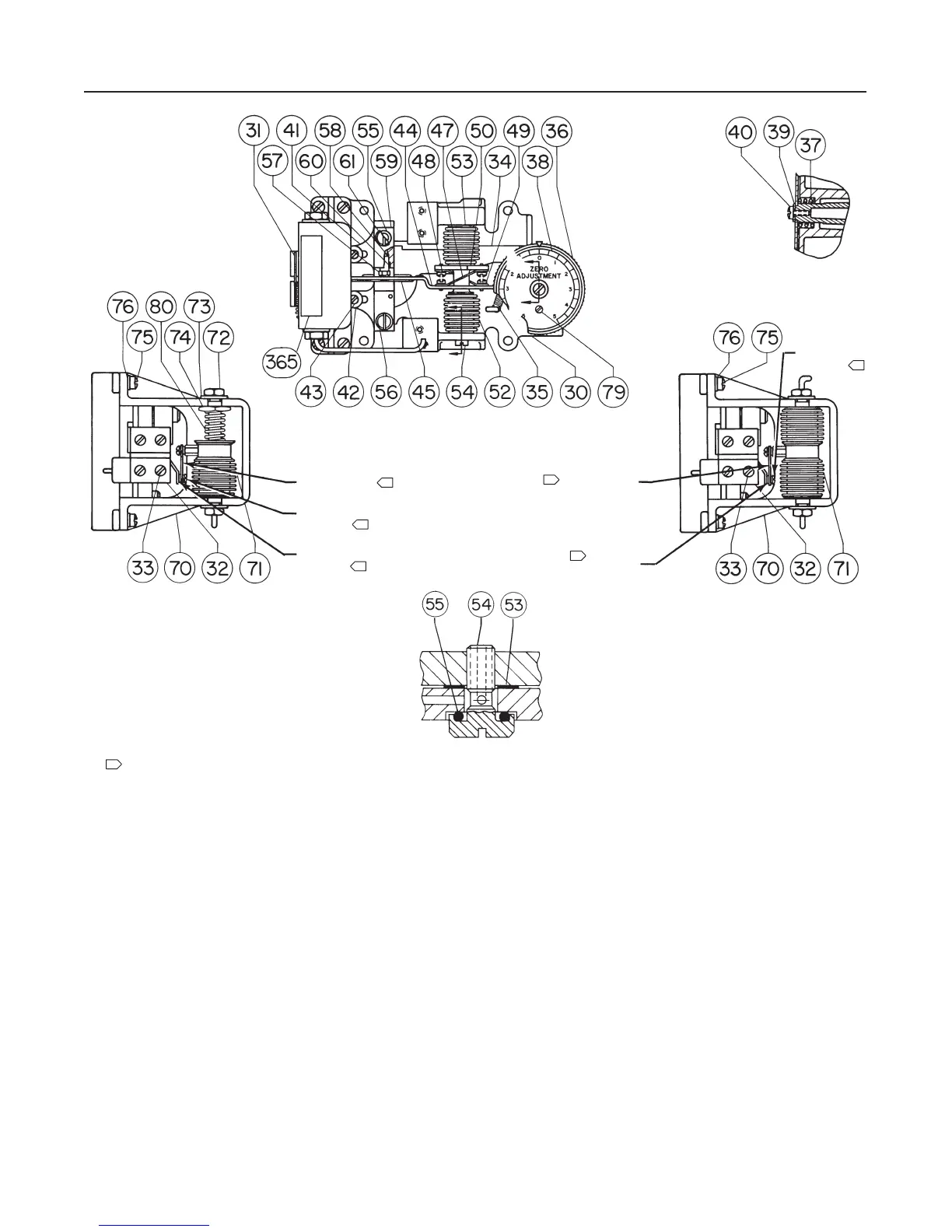

Figure 22. Controller Subassembly with Either Gauge-Pressure Bellows or Differential-Pressure Bellows Sensing Element
26A7681-A /DOC
SHOWN WITH
TRANSMITTER
DIAL & SCREW,
KEY 38 & 79
SCREW
(KEY 71K)
LINK (KEY 71M)
SCREW
(KEY 71K)
BEARING
(KEY 71L)
LINK (KEY 71M)
BEARING
(KEY 71L)
A
A
NOTES:
KEYS 46 AND 51 NOT SHOWN: KEY 52 IS
FEEDBACK BELLOWS
KEYS 71K, 71L, & 71M ARE PART OF THE
BELLOWS ASSEMBLY (KEY 71)
1
1
1
1
1
1
1
C
C
26A7683-B / DOC
26A7675-B / DOC
Key Description Part Number
106* Process Pressure Gauge (use only when specified)
Triple scale
ABS plastic/Brass
0–30 psig, 0–0.2 MPa, & 0–2.0 bar 11B8578 X012
0–60 psig, 0–0.4 MPa, & 0–4.0 bar 11B8578 X022
0–160 psig, 0–1.1 MPa, & 0–11 bar 11B8578 X032
0–300 psig, 0–2.0 MPa, & 0–20 bar 11B8578 X042
0–600 psig, 0–4.0 MPa, & 0–40 ba 11B8578 X052
0–1000 psig, 0–6.9 MPa, & 0–69 bar 11B8578 X062
ABS plastic/Stainless steel
0–30 psig, 0–0.2 MPa, & 0–2.0 bar 11B8584 X022
0–300 psig, 0–2.0 MPa, & 0–20 bar 11B8584 X012
0–1000 psig, 0–6.9 MPa, & 0–69 bar 11B8584 X032
107 Pressure Connection, sst
Use w/process gauge 1J2512 35162
108 Pipe Plug, steel pl (not shown)
Use w/process gauge,
not used w/Bourdon tube protector 1E8231 28982
Key Description Part Number
115 Mounting Screw for reset restriction valve
Type 4160K, 60KF, 62K, 62KF, & 64K
1/4-20 UNC, steel pl (not shown) 1H5270 28982
116 Reset Tubing Ass’y, sst
Type 4160K, 60KF, 62K, 62KF, & 64K 1H6866 000A2
117 Compensator Tubing Ass’y, sst 1H6868 000A2
127 Tubing Assembly, sst
Type 4160KF & 4162KF only 27B9975 X012
129 Tubing Assembly, sst
Type 4160KF & 4162KF only 27B9976 X012
132 Control Tubing Assembly
For Bourdon tube instruments
w/o process pressure gauge
Stainless steel 1H3011 000A2
K-Monel (not used on Type 4151K) 1H3011 X0022
w/process pressure gauge, sst 1J2530 000A2
For gauge-pressure bellows instruments, sst
w/o process pressure gauge 1H4526 000A2
w/process pressure gauge 1J2553 000A2
*Recommended spare parts
