13
INSTALLATION INSTRUCTIONS

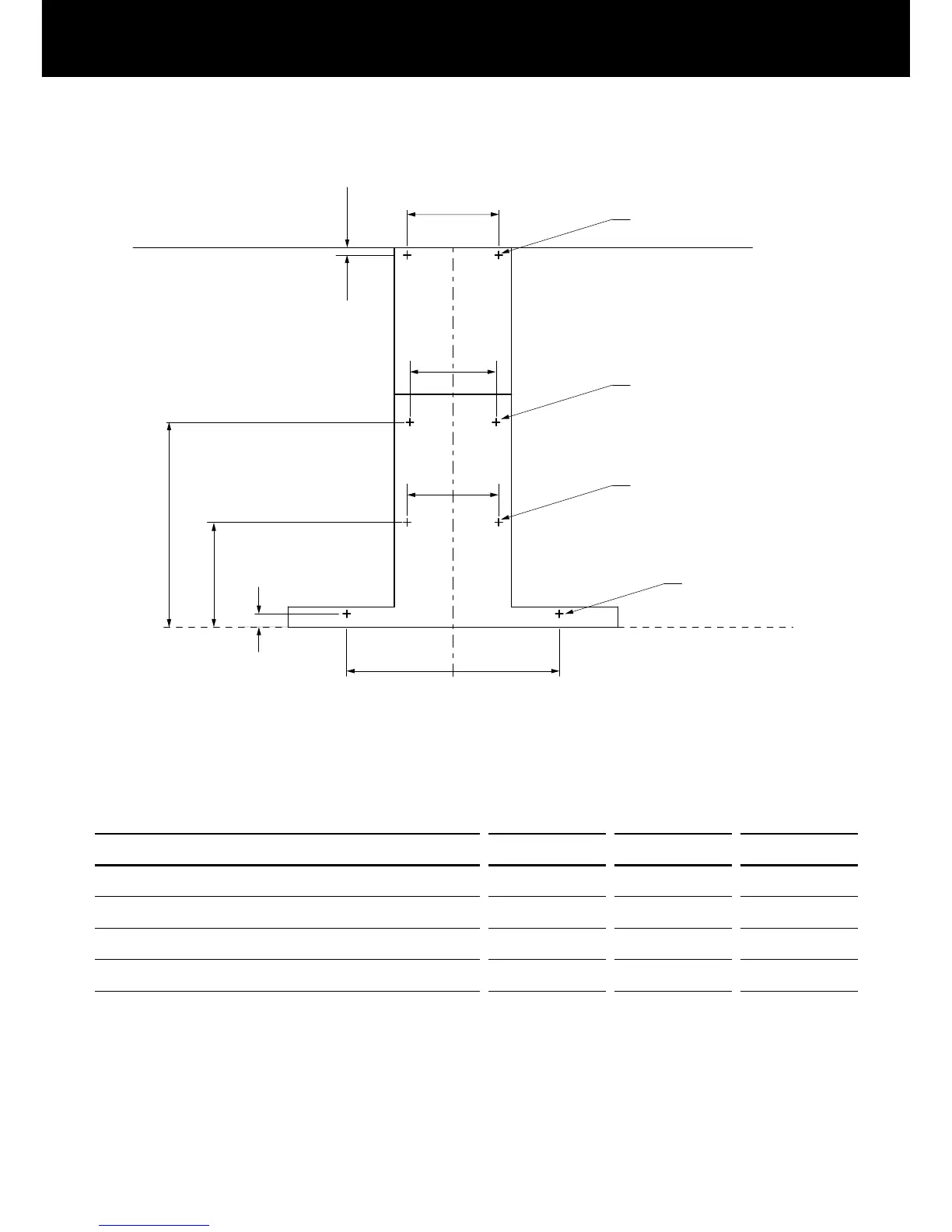

Fig.2
250 mm
20 mm
A
B
250 mm
235 mm
C
D
Upper chimney extension
bracket attachment points
Chimney bracket
attachment points
Upper hood
attachment points
Lower hood
attachment points
HC60 HC90 HC120
PRODUCT DIMENSIONS mm
A
Lower rangehood attachment point width
420 580 900
B
Chimney bracket attachment point height
559 559 556
C
Upper rangehood attachment point height
286 286 288
D
Lower rangehood attachment point height
36 36 42.5
