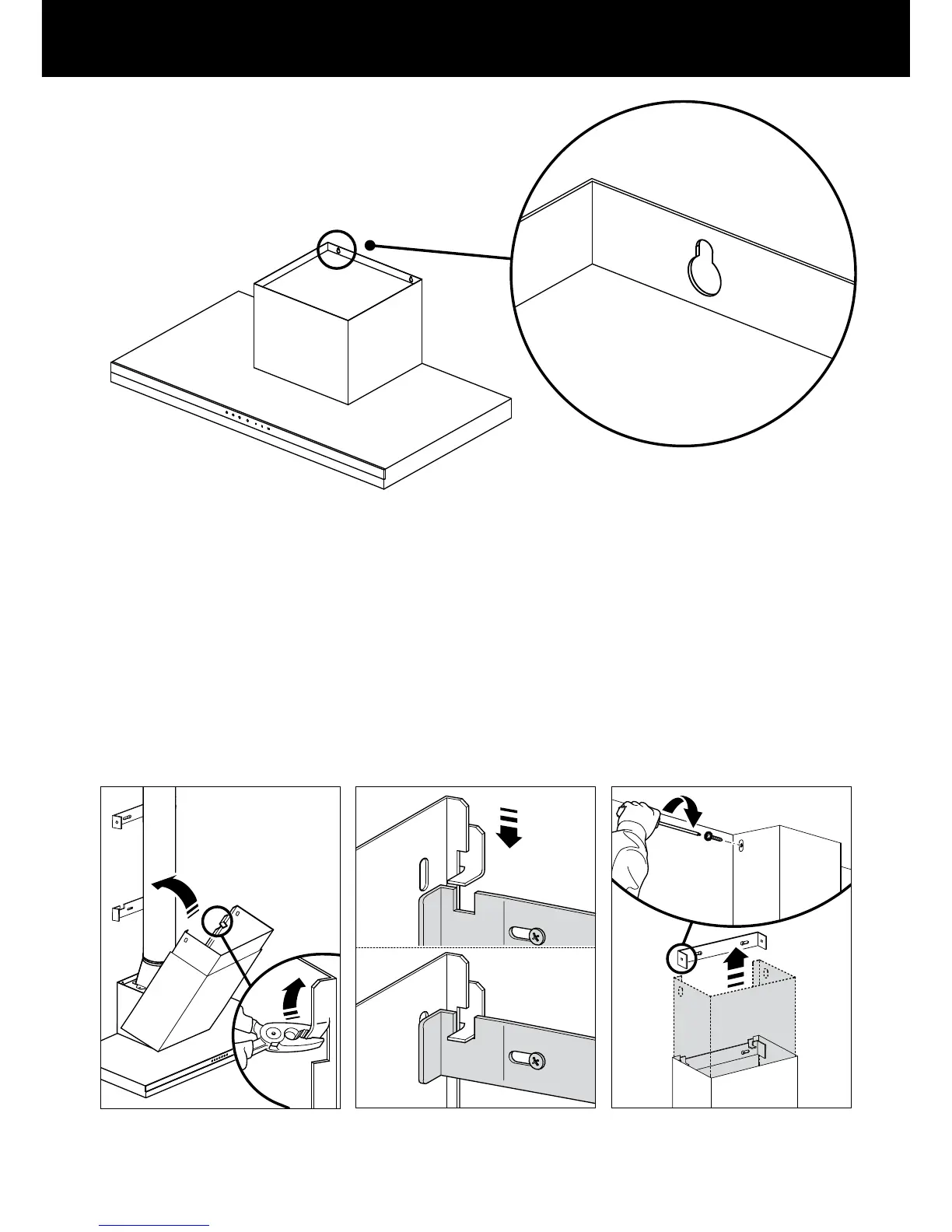

Fig.5
Hang hood off upper hood mounting screws with 2mm gap. Hang off the keyhole
attachment points on the back of the hood (see Fig.5). Tighten screws.
Attach lower hood mounting screws to fix hood to wall.
Reattach easy clean plate and filters.
5
Attach ducting
Attach ducting to ducting adapter using aluminium duct tape and vent outside.
6
Attach chimney
Bend the tabs on the chimney (A).
Place chimney around the hood chassis and hang off the bracket (B).
Extend the upper chimney and attach to the chimney bracket with 10 mm screws (C).
A B C
