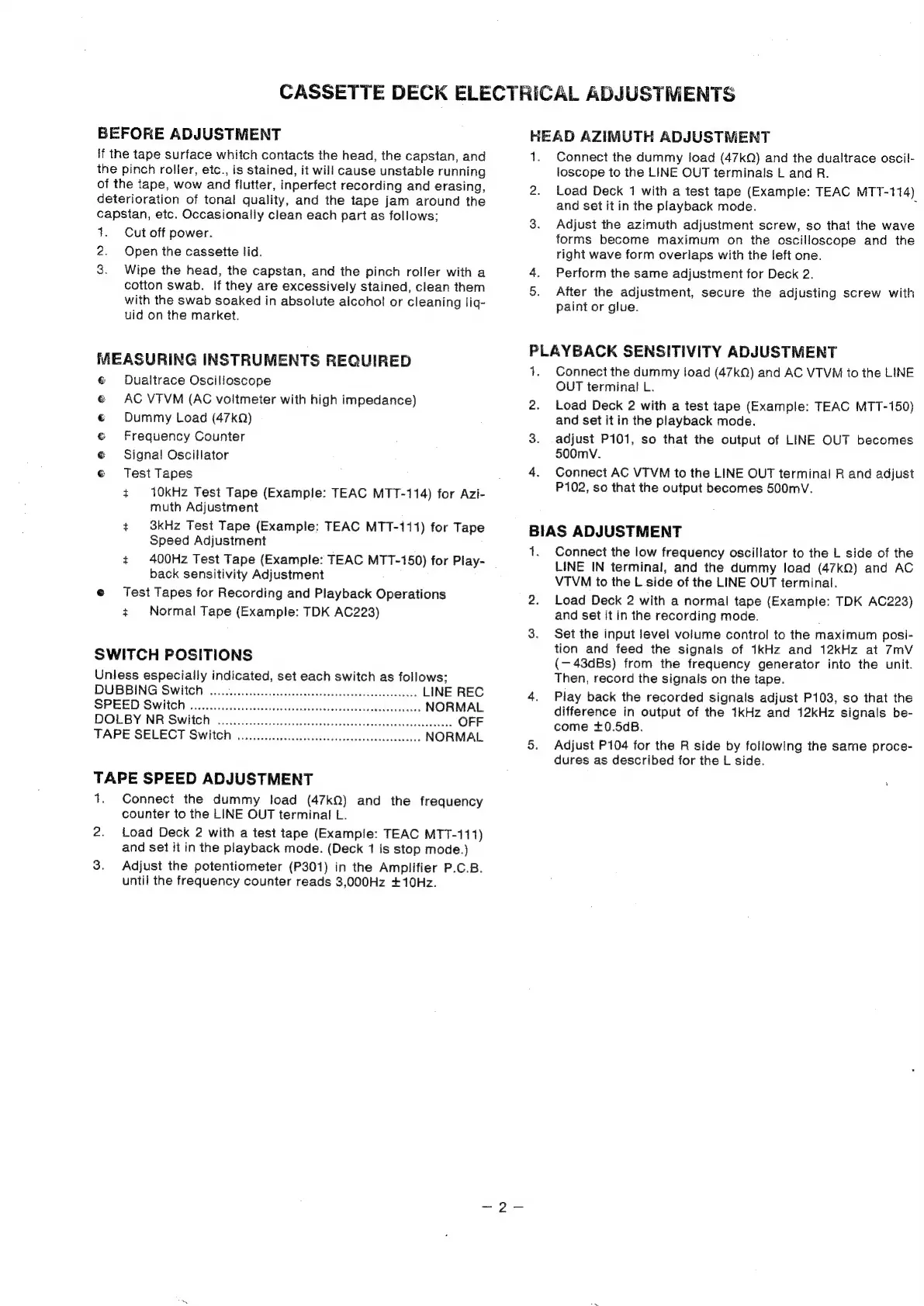

CASSETTE
DECK
ELECTRICAL
ADJUSTMENTS
BEFORE
ADJUSTMENT
If
the
tape
surface
whitch
contacts
the
head,
the
capstan,
and
the
pinch
roller,
etc.,
is
stained,
it
will
cause
unstable
running
of
the
tape,
wow
and
flutter,
inperfect
recording
and
erasing,
deterioration
of
tonal
quality,
and
the
tape
jam
around
the
capstan,
etc.
Occasionally
clean
each
part
as
follows;
}.
Cut
off
power.
2.
Open
the
cassette
lid.
3.
Wipe
the
head,
the
capstan,
and
the
pinch
roller
with
a
cotion
swab.
if
they
are
excessively
stained,
clean
them
with
the
swab
soaked
in
absolute
alcohol
or
cleaning
lig-
uid
on
the
market.
MEASURING
INSTRUMENTS
REQUIRED
Dualtrace
Oscilloscope
AC
VTVM
(AC
voltmeter
with
high
impedance)
Dummy
Load
(47kQ)
Frequency
Counter
Signal
Oscillator
Test
Tapes
#
10kHz
Test
Tape
(Example:
TEAC
MTT-114)
for
Azi-
muth
Adjustment
3kHz
Test
Tape
(Example:
TEAC
MTT-111)
for
Tape
Speed
Adjustment
400Hz
Test
Tape
(Example:
TEAC
MTT-150)
for
Play-
back
sensitivity
Adjustment
Test
Tapes
for
Recording
and
Playback
Operations
+
Normal
Tape
(Example:
TDK
AC223)
oOo
Oo
Oo
8
t
SWITCH
POSITIONS
Unless
especially
indicated,
set
each
switch
as
follows;
DUBBING
SWitch
oo.ce
ccc
ceeeeeeeeseesesaeeeseesreeseenees
LINE
REC
SPEED
SWIC
o).cisclsccssessossevds
naz.
duvnelasbendecavestecs
dubeieets
NORMAL
DOLBY
NR
SWitCH
oo
ccceceecteeseeecsstcecerssnesecseavaaeass
OFF
TAPE
SELECT
SWitch
oo.
cecceecesccsecscesetesecsseeneenee
NORMAL
TAPE
SPEED
ADJUSTMENT
1.
Connect
the
dummy
load
(47kQ)
and
the
frequency
counter
to
the
LINE
OUT
terminal
L.
2.
Load
Deck
2
with
a
test
tape
(Example:
TEAC
MTT-111)
and
set
it
in
the
playback
mode.
(Deck
1
is
stop
mode.)
3.
Adjust
the
potentiometer
(P301)
in
the
Amplifier
P.C.B.
until
the
frequency
counter
reads
3,000Hz
+10Hz.
HEAD
AZIMUTH
ADJUSTMENT
1.
Connect
the
dummy
joad
(47kQ)
and
the
dualtrace
oscil-
loscope
to
the
LINE
OUT
terminals
L
and
R.
2.
Load Deck
1
with
a
test
tape
(Example:
TEAC
MTT-114)
and
set
it
in
the
playback
mode.
3.
Adjust
the
azimuth
adjustment
screw,
so
that
the
wave
forms
become
maximum
on
the
oscilloscope
and
the
right
wave
form
overlaps
with
the
left
one.
4.
Perform
the
same
adjustment
for
Deck
2.
an
After
the
adjustment,
secure
the
adjusting
screw
with
paint
or
glue.
PLAYBACK
SENSITIVITY
ADJUSTMENT
1.
Connect
the
dummy
load
(47kQ)
and
AC
VTVM
to
the
LINE
OUT
terminal
L.
2.
Load
Deck
2
with
a
test
tape
(Example:
TEAC
MTT-150}
and
set
it
in
the
playback
mode.
3.
adjust
P101,
so
that
the
output
of
LINE
OUT
becomes
500mV.
4.
Connect
AC
VTVM
to
the
LINE
OUT
terminal
R
and
adjust
P102,
so
that
the
output
becomes
500mV.
BIAS
ADJUSTMENT
1.
Connect
the
low
frequency
oscillator
to
the
L
side
of
the
LINE
IN
terminal,
and
the
dummy
load
(47kQ)
and
AC
VTVM
to
the
L
side
of
the
LINE
OUT
terminal.
Load Deck
2
with
a
normal
tape
(Example:
TDK
AC223)
and
set
it
in
the
recording
mode.
Set
the
input
level
volume
control
to
the
maximum
posi-
tion
and
feed
the
signals
of
1kHz
and
12kHz
at
7mV
(—43dBs)
from
the
frequency
generator
into
the
unit.
Then,
record
the
signals
on
the
tape.
Play
back
the
recorded
signals
adjust
P103,
so
that
the
difference
in
output
of
the
1kHz
and
12kHz
signals
be-
come
+0.5dB.
Adjust
P104
for
the
R
side
by
following
the
same
proce-
dures
as
described
for
the
L
side.
