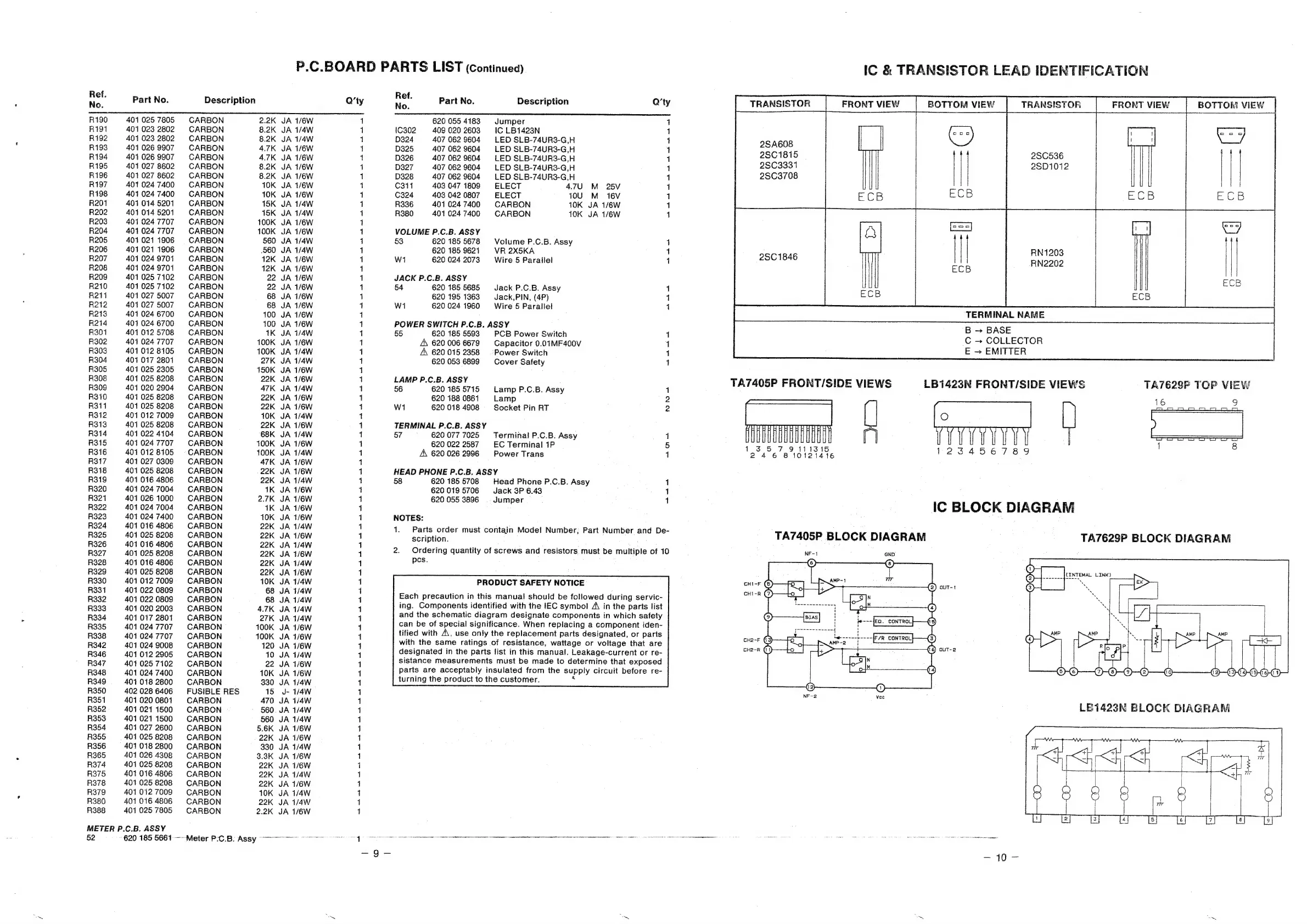

P.C.BOARD PARTS LIST (Continueq)
ne Part No. Description Q’ty
R190 4010257805 CARBON 2.2K JA 1/6W 1
R191 401 023 2802 CARBON 8.2K JA 1/4W 1
R192 401 023 2802 CARBON 8.2K JA 1/4W 1
R193 401 026 9907 CARBON 4.7K JA 1/6W i
R194 4010269907 CARBON 4.7K JA 1/6W 1
R195 401 027 8602 CARBON 8.2K JA 1/6W 1
R196 401 027 8602 CARBON 8.2K JA 1/6W 1
R197 4010247400 CARBON 10K JA 1/6W 7
R198 4010247400 CARBON 10K JA 1/6W 1
R201 401 014 5201 CARBON 15K JA 1/4W 1
R202 401 014 5201 CARBON 15K JA 1/4W 1
R203 401 024 7707 CARBON 100K JA 1/6W 1
R204 4010247707 CARBON 100K JA 1/6W 1
R205 4010211906 CARBON 560 JA 1/4W 1
R206 4010211906 CARBON 560 JA 1/4W 1
R207 401 024 9701 CARBON 12K JA 1/6W 1
R208 401 024 9701 CARBON 12K JA 1/6W 1
R209 4010257102 CARBON 22 JA 1/6W 1
R210 4010257102 CARBON 22 JA 1/6W 1
R211 401027 5007 CARBON 68 JA 1/6W 1
R212 401 027 5007 CARBON 68 JA 1/6W 1
R213 401 0246700 CARBON 100 JA 1/6W 1
R214 4010246700 CARBON 100 JA 1/6W 1
R301 4010125708 CARBON 1K JA 1/4W 1
R302 4010247707 CARBON 100K JA 1/6W 1
R303 4010128105 CARBON 100K JA 1/4W 1
R304 401 017 2801 CARBON 27K JA 1/4W 1
R305 401025 2305 CARBON 150K JA 1/6W A
R308 401 025 8208 CARBON 22K JA 1/6W 1
R309 401 020 2904 CARBON 47K JA 1/4W 1
R310 401 025 8208 CARBON 22K JA 1/6W 1
R311 401 025 8208 CARBON 22K JA 1/6W 1
R312 4010127009 CARBON 10K JA 1/4W 1
R313 401 025 8208 CARBON 22K JA 1/6W 1
R314 401022 4104 CARBON 68K JA 1/4W 1
R315 4010247707 CARBON 100K JA 1/6W 1
R316 4010128105 CARBON 100K JA 1/4W 1
R317 4010270309 CARBON 47K JA 1/6W 1
R318 401025 8208 CARBON 22K JA 1/6W 1
R319 401016 4806 CARBON 22K JA 1/4W 1
R320 401024 7004 CARBON 1K JA 1/6W 1
R321 4010261000 CARBON 2.7K JA 1/6W 1
R322 4010247004 CARBON 1K JA 1/6W 1
R323 401 0247400 CARBON 10K JA 1/6W 1
R324 401 016 4806 CARBON 22K JA 1/4W 1
R325 401 025 8208 CARBON 22K JA 1/6W 1
R326 401016 4806 CARBON 22K JA 1/4W 1
R327 401 025 8208 CARBON 22K JA 1/6W 1
R328 401016 4806 CARBON 22K JA 1/4W 1
R329 401025 8208 CARBON 22K JA 1/6W 1
R330 401012 7009. CARBON 10K JA 1/4W 1
R331 401 022 0809 CARBON 68 JA 1/4W 1
R332 401 0220809 CARBON 68 JA 1/4W 1
R333 401 020 2003 CARBON 4.7K JA 1/4W 1
R334 401 017 2801 CARBON 27K JA 1/4W 1
R335 4010247707 CARBON 100K JA 1/6W 1
R338 4010247707 CARBON 100K JA 1/6W 1
R342 4010249008 CARBON 120 JA 1/6W 1
R346 401012 2905 CARBON 10 JA 1/4W 1
R347 401 025 7102 CARBON 22 JA 1/6W 1
R348 401 0247400 CARBON 10K JA 1/6W 1
R349 401018 2800 CARBON 330 JA 1/4W 1
R350 402 028 6406 FUSIBLE RES 15 J- 1/4W 1
R351 401 020 0801 CARBON 470 JA 1/4W 1
R352 4010211500 CARBON 560. JA 1/4W 1
R353 4010211500 CARBON 560 JA 1/4W 1
R354 401 027 2600 CARBON 5.6K JA 1/6W 1
R355 401 025 8208 CARBON 22K JA 1/6W 1
R356 401018 2800 CARBON 330 JA 1/4W 1
R365 401 026 4308 CARBON 3.3K JA 1/6W 1
R374 401 025 8208 CARBON 22K JA 1/6W 1
R375 4010164806 CARBON 22K JA 1/4W 1
R378 401 025 8208 CARBON 22K JA 1/6W 1
R379 4010127009 CARBON 10K JA 1/4W 4
R380 401016 4806 CARBON 22K JA 1/4W 1
R388 4010257805 CARBON 2.2K JA 1/6W 1
METER P.C.B. ASSY
52 620 185 5661 -—~Meter P:C.B. Assy “reed
oe Part No. Description Q'ty
620 055 4183 Jumper 1
IC302 408 020 2603 IC LB1423N 1
D324 407 062 9604 LED SLB-74UR3-G,H 1
D325 407 062 9604 LED SLB-74UR3-G,H 1
D326 407 062 9604 LED SLB-74UR3-G,H 1
D327 407 062 9604 LED SLB-74UR3-G,H 1
D328 407 062 9604 LED SLB-74UR3-G,H 1
C311 403 047 1809 ELECT 4.7U M 25V 1
C324 403 042 0807. ELECT 10U M 16V 1
R336 401 0247400 CARBON 10K JA 1/6W 1
R380 401 0247400 CARBON 10K JA 1/6W 1
VOLUME P.C.B. ASSY
53 620 185 5678 Volume P.C.B. Assy 1
620 185 9621 VR 2X5KA 1
Wi 620 024 2073 += Wire 5 Parallel 1
JACK P.C.B. ASSY
54 620 185 5685 Jack P.C.B. Assy 1
620 195 1363 Jack,PIN, (4P) 1
W1 620 024 1960 Wire 5 Parallel 1
POWER SWITCH P.C.B. ASSY
55 620 185 5593 PCB Power Switch 1
A\ 620 006 6679 = Capacitor 0.01MF400V 1
AX 620 015 2358 ~=— Power Switch 1
620 053 6899 Cover Safety 1
LAMP P.C.B. ASSY
56 620 1855715 Lamp P.C.B. Assy 1
620 188 0861 Lamp 2
wi 620 018 4908 Socket Pin RT 2
TERMINAL P.C.B. ASSY
57 620 077 7025 ~=Termina! P.C.B. Assy 1
620 022 2587. EC Terminal 1P
AX 620 026 2996 Power Trans 1
HEAD PHONE P.C.B. ASSY
58 620 185 5708 Head Phone P.C.B. Assy 1
620 0195706 Jack 3P 6.43 1
620 055 3896 = Jumper 1
NOTES:
1. Parts order must contain Model Number, Part Number and De-
scription.
2. Ordering quantity of screws and resistors must be multiple of 10
pcs.
PRODUCT SAFETY NOTICE
Each precaution in this manual should be followed during servic-
ing. Components identified with the IEC symbol A\ in the parts list
and the schematic diagram designate components in which safety
can be of special significance. When replacing a component iden-
tified with A\, use only the replacement parts designated, or parts
with the same ratings of resistance, wattage or voltage that are
designated in the parts list in this manual. Leakage-current or re-
sistance measurements must be made to determine that exposed
parts are acceptably insulated from the supply circuit before re-
turning the product to the customer. &
2SA608
2801815
2803331
28C3708
2801846
TA7405P FRONT/SIDE VIEWS
TA7405P BLOCK DIAGRAM
ic & TRANSISTOR LEAD IDENTIFICATION
28C536
28D1012
RN1203
RN2202
ECB
TERMINAL NAME
B > BASE
C > COLLECTOR
E — EMITTER
LB1423N FRONT/SIDE VIEWS TA7629P TOP VIEW
: |
g | 8
IC BLOCK DIAGRAM
TA7629P BLOCK DIAGRAM
NF-1 GND
