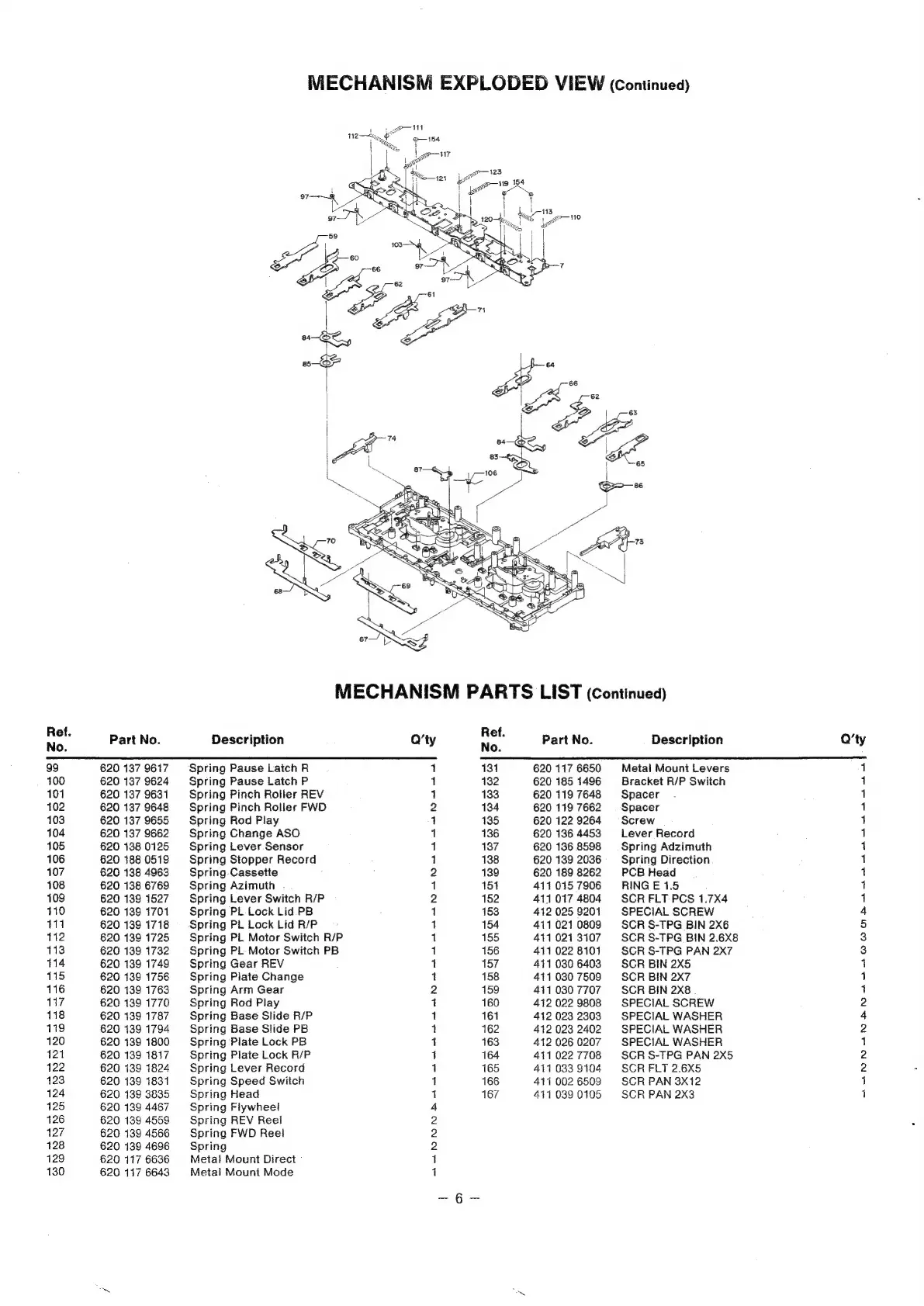

MECHANISM EXPLODED VIEW (Continued)
MECHANISM PARTS LIST (Continueg)
nee Part No. Description Q’ty
99 620 137 9617 Spring Pause Latch R 1
100 620 137 9624 Spring Pause Latch P 1
101 620 137 9631 Spring Pinch Roller REV 1
102 620 137 9648 Spring Pinch Roller FWD 2
103 620 137 9655 Spring Rod Play 1
104 620 137 9662 Spring Change ASO 1
105 620 1380125 Spring Lever Sensor 1
106 620 188 0519 Spring Stopper Record 1
107 620 138 4963 Spring Cassette 2
108 620 138 6769 Spring Azimuth 1
109 620 139 1527 Spring Lever Switch R/P 2
410 620 139 1701 Spring PL. Lock Lid PB 1
111 620 139 1718 Spring PL Lock Lid R/P 1
112 620 139 1725 Spring PL Motor Switch R/P 1
113 620 1389 1732 Spring PL Motor Switch PB 1
114 620 139 1749 Spring Gear REV 1
115 620 139 1756 Spring Pilate Change 1
116 620 139 1763 Spring Arm Gear 2
117 620 1391770 Spring Rod Play 1
118 620 138 1787 Spring Base Slide R/P 1
119 620 1391794 Spring Base Slide PB 1
120 620 1389 1800 Spring Plate Lock PB 1
121 620 139 1817 Spring Plate Lock R/P 1
122 620 139 1824 Spring Lever Record 1
123 620 139 1831 Spring Speed Switch 1
124 620 139 3835 Spring Head 1
125 620 139 4467 Spring Flywheel 4
426 620 139 4559 Spring REV Reel 2
127 620 139 4566 Spring FWD Reel 2
428 620 139 4696 Spring 2
129 620 117 6636 Metal Mount Direct 1
130 620 117 6643 Metal Mouni Mode 1
Part No. Description Q'ty
131 620 117 6650 Metal Mount Levers 1
132 620 185 1496 Bracket R/P Switch 1
133 620 119 7648 Spacer 1
134 620 119 7662 Spacer 1
135 620 122 9264 Screw 1
136 620 136 4453 Lever Record 1
137 620 136 8598 Spring Adzimuth 1
138 620 139 2036. Spring Direction 1
139 620 189 8262 PCB Head 1
151 411 015 7906 RING E 1.5 1
162 411 017 4804 SCR FLT PCS 1.7X4 1
153 412 025 9201 SPECIAL SCREW 4
154 4110210808 SCRS-TPG BIN 2x6 5
155 411 021 3107 SCR S-TPG BIN 2.6X8 3
156 411 022 8101 SCR S-TPG PAN 2X7 3
157 411 030 6403 SCR BIN 2X5 1
158 441 030 7509 SCR BIN 2X7 1
159 411 030 7707 SCR BIN 2X8 4
160 412 022 9808 SPECIAL SCREW 2
161 412 023 2303 SPECIAL WASHER 4
162 412 023 2402 SPECIAL WASHER 2
163 412 026 0207 SPECIAL WASHER 1
164 411 022 7708 SCR S-TPG PAN 2X5 2
165 411 033 $104 SCR FLT 2.6X5 2
166 411 002 6508 SCR PAN 3X12 j
167 411 039 0105 SCR PAN 2x3 1
