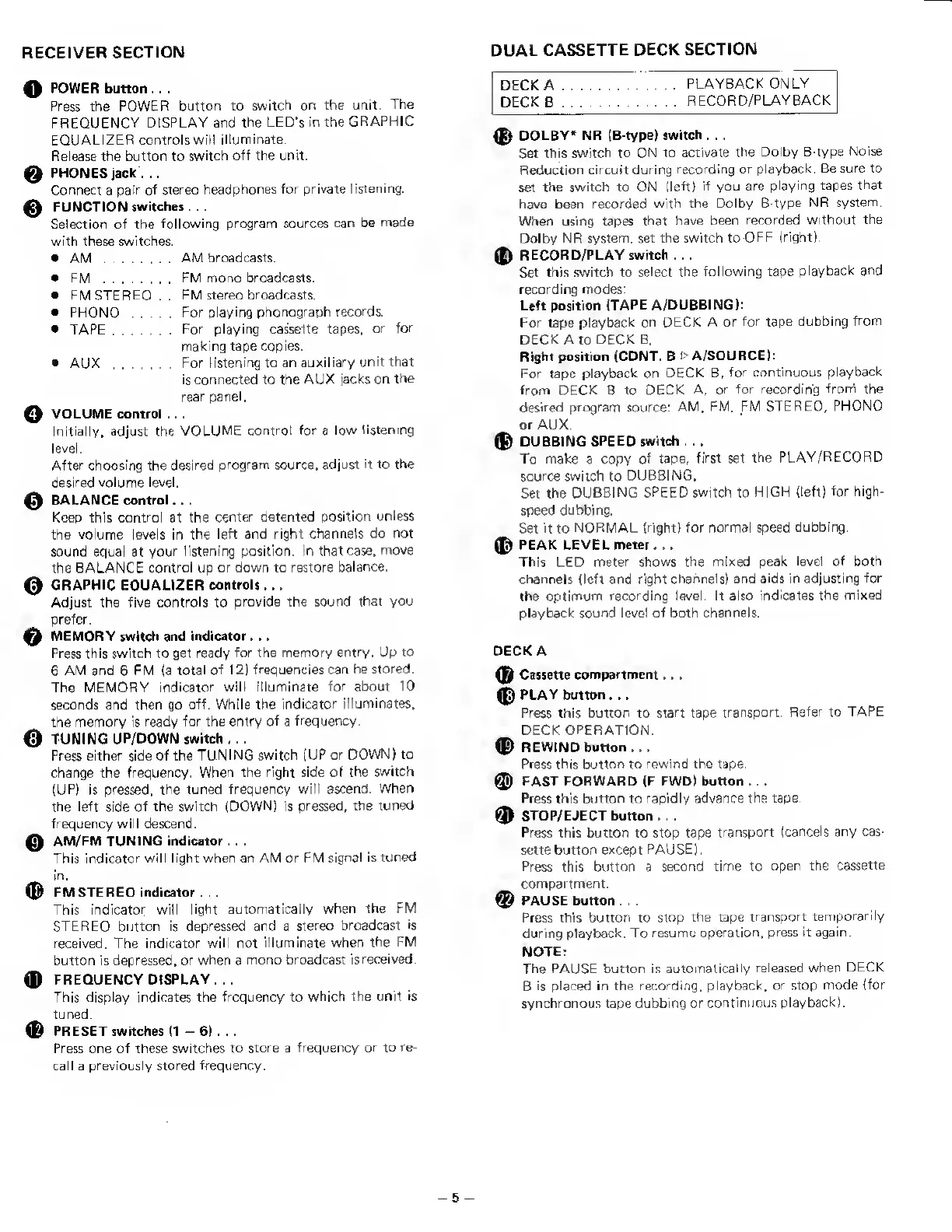

RECEIVER
SECTION
DUAL
CASSETTE
DECK
SECTION
0
POWER
button
...
Press
the
POWER
button
to
switch
on
the
unit.
The
FREQUENCY
DISPLAY
and
the
LED's
in
the
GRAPHIC
EQUALIZER
controls
will
illuminate.
Release
the
button
to
switch
off
the
unit.
0
PHONES
jack
...
Connect
a
pair
of
stereo
headphones
for
private
listening.
0
FUNCTION
switches
...
Selection
of
the
following
program
sources
can
be
made
with
these
switches.
•
AM
.AM
broadcasts.
•
FM
.
FM
mono
broadcasts.
•
FM
STEREO
..
FM
stereo
broadcasts.
•
PHONO
....
For
playing
phonograph
records.
•
TAPE.For
playing
cassette
tapes,
or
for
making
tape
copies.
•
AUX
.For
listening
to
an
auxiliary
unit
that
is
connected
to
the
AUX
jacks
on
the
rear
panel.
Q
VOLUME
control
...
Initially,
adjust
the
VOLUME
control
for
a
low
listening
level.
After
choosing
the
desired
program
source,
adjust
it
to
the
desired
volume
level.
0
BALANCE
control...
Keep
this
control
at
the
center
detented
position
unless
the
volume
levels
in
the
left
and
right
channels
do
not
sound
equal
at
your
listening
position.
In
that
case,
move
the
BALANCE
control
up
or
down
to
restore
balance.
0
GRAPHIC
EQUALIZER
controls...
Adjust
the
five
controls
to
provide
the
sound
that
you
prefer.
0
MEMORY
switch
and
indicator...
Press
this
switch
to
get
ready
for
the
memory
entry.
Up
to
6
AM
and
6
FM
(a
total
of
12)
frequencies
can
be
stored.
The
MEMORY
indicator
will
illuminate
for
about
10
seconds
and
then
go
off.
While
the
indicator
illuminates,
the
memory
is
ready
for
the
entry
of
a
frequency.
0
TUNING
UP/DOWN
switch
...
Press
either
side
of
the
TUNING
switch
(UP
or
DOWN)
to
change
the
frequency.
When
the
right
side
of
the
switch
(UP)
is
pressed,
the
tuned
frequency
will
ascend.
When
the
left
side
of
the
switch
(DOWN)
is
pressed,
the
tuned
frequency
will
descend
0
AM/FM
TUNING
indicator...
This
indicator
will
light
when
an
AM
or
FM
signal
is
tuned
in.
0
FM
STEREO
indicator
.
This
indicator
will
light
automatically
when
the
FM
STEREO
button
is
depressed
and
a
stereo
broadcast
is
received.
The
indicator
will
not
illuminate
when
the
FM
button
is
depressed,
or
when
a
mono
broadcast
is
received
0
FREQUENCY
DISPLAY...
This
display
indicates
the
frequency
to
which
the
unit
is
tuned.
0
PRESET
switches
(1
-
6)..
.
Press
one
of
these
switches
to
store
a
frequency
or
to
re¬
call
a
previously
stored
frequency.
DECK
A.PLAYBACK
ONLY
DECK
B
.
R
ECORD/PLAYBACK
0
DOLBY*
NR
(B-type)
switch
.
.
.
Set
this
switch
to
ON
to
activate
the
Dolby
B-type
Noise
Reduction
circuit
during
recording
or
playback.
Be
sure
to
set
the
switch
to
ON
(left)
if
you
are
playing
tapes
that
have
been
recorded
with
the
Dolby
B-type
NR
system.
When
using
tapes
that
have
been
recorded
without
the
Dolby
NR
system,
set
the
switch
to-OFF
(right).
0
RECORD/PLAY
switch
...
Set
this
switch
to
select
the
following
tape
playback
and
recording
modes:
Left
position
(TAPE
A/DUBBING):
For
tape
playback
on
DECK
A
or
for
tape
dubbing
from
DECK
A
to
DECK
B.
Right
position
(CONT.
B
LA/SOURCE):
For
tape
playback
on
DECK
B,
for
continuous
playback
from
DECK
B
to
DECK
A,
or
for
recording
from
the
desired
program
source:
AM,
FM.
FM
STEREO,
PHONO
or
AUX.
0
DUBBING
SPEED
switch
...
To
make
a
copy
of
tape,
first
set
the
PLAY/RECORD
source
switch
to
DUBBING.
Set
the
DUBBING
SPEED
switch
to
HIGH
(left)
for
high¬
speed
dubbing.
Set
it
to
NORMAL
(right)
for
normal
speed
dubbing
0
PEAK
LEVEL
meter.
..
This
LED
meter
shows
the
mixed
peak
level
of
both
channels
(left
and
right
channels)
and
aids
in
adjusting
for
the
optimum
recording
level.
It
also
indicates
the
mixed
playback
sound
level
of
both
channels.
DECK
A
0
Cassette
compartment...
0
PLAY
button
...
Press
this
button
to
start
tape
transport.
Refer
to
TAPE
DECK
OPERATION.
0
REWIND
button
.
..
Press
this
button
to
rewind
the
tape
0
FAST
FORWARD
(F
FWD)
button
.
.
.
Press
this
button
to
rapidly
advance
the
tape
0
STOP/EJECT
button
.
..
Press
this
button
to
stop
tape
transport
(cancels
any
cas¬
sette
button
except
PAUSE).
Press
this
button
a
second
time
to
open
the
cassette
compartment.
0
PAUSE
button
...
Press
this
button
to
stop
the
tape
transport
temporarily
during
playback.
To
resume
operation,
press
it
again.
NOTE:
The
PAUSE
button
is
automatically
released
when
DECK
B
is
placed
in
the
recording,
playback,
or
stop
mode
(for
synchronous
tape
dubbing
or
continuous
playback).
-
5
-
