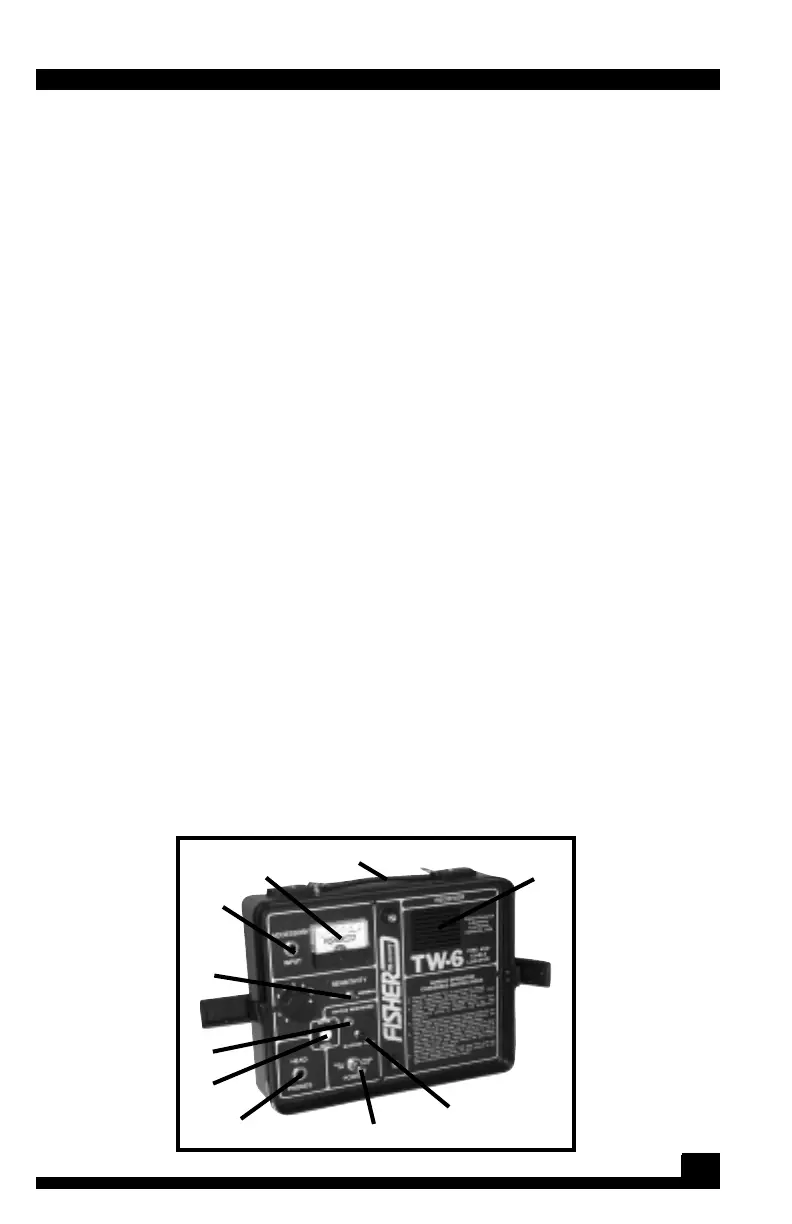

RECEIVER
1. Shoulder Strap: Keeps one hand free for
marking ground or pavement while using Tracer
Probe.
2. Meter: Indicates signal strength up to a point
from metallic conductors while locating or
tracing. Meter also gives a visual indication of
battery strength.
3. Accessory Input: Use this jack to plug in all
accessories except the headphones.
4. Sensitivity:
A. Toggle switch to select NORMAL or HIGH
range.
B. Knob to control sensitivity level within the
NORMAL or HIGH range.
5. Ni-Cad Recharge: When using Ni-Cad
rechargeable batteries, plug the charger jack
into this receptacle. If red light is on, connection
is made.
6. Depth Level: This bubble indicates the angle of
the receiver to the ground. Use it to keep
Receiver and Transmitter level during Inductive
Locating and for making the 45-degree angle
necessary in depth determination.
7. Headphones: Use this jack to plug in
headphones only. It automatically silences
speaker. Use in particularly noisy areas.
8. Battery Test: Press this black button and
10
1
2
3
4
5
8
9
7
6
