www.fishman.com

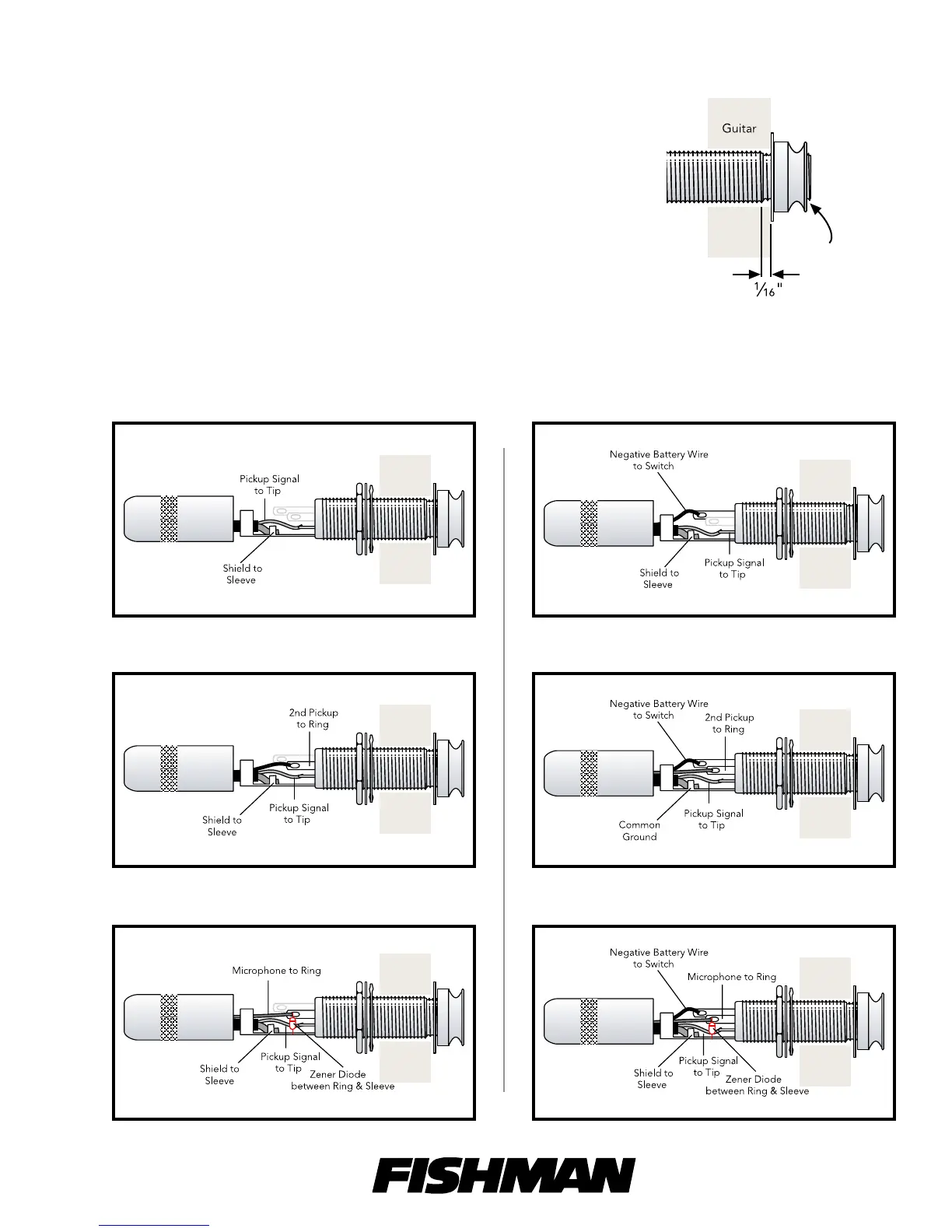

Wiring Options
Passive pickup
Two passive pickups, stereo
Passive pickup + mini-mic, stereo
Active pickup
Active + passive pickup, stereo
Active pickup + mini mic, stereo
009-074-002 Rev B 4-07
Installation (continued)
3. Adjust the backing nut so the larger threads are about
1
∕
16
" shy of the
outside of the endblock (figure 4).
4. Thread the dress washer and dress nut, then insert a
3
∕
32
" (2.3 mm)
or smaller diameter shaft through the small cross-drilled holes. Tighten
the nut with a ½" open end wrench while you hold the jack in place
with the shaft.
5. Fasten the strap nut.
Note: When properly installed, the end of the jack will be slightly
proud of the strap nut, so when a plug is inserted, it will snap securely
in place (figure 4).
Figure 4. End of jack is proud,
large threads are shy
